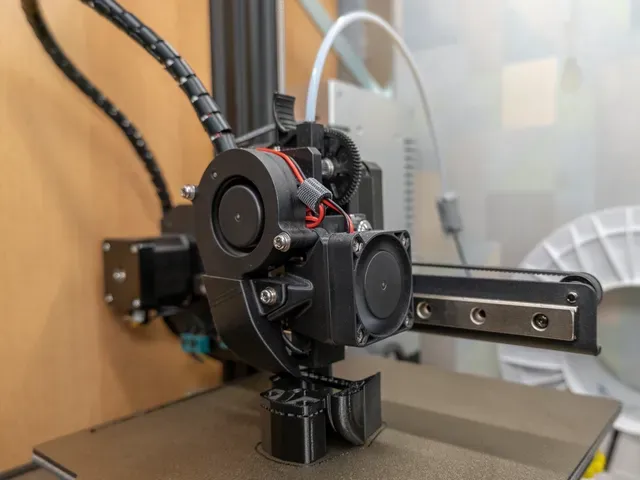

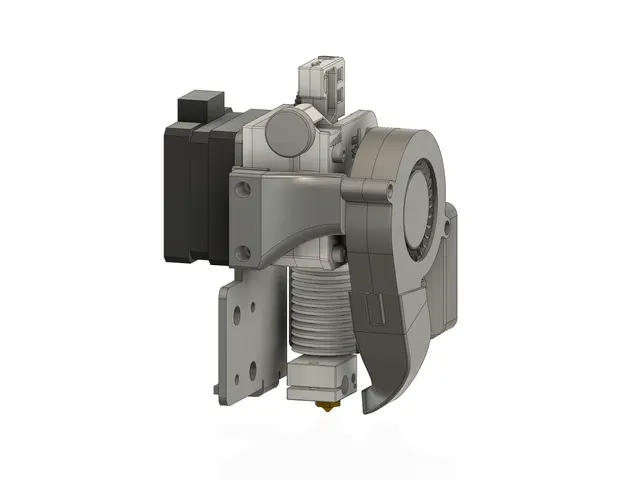

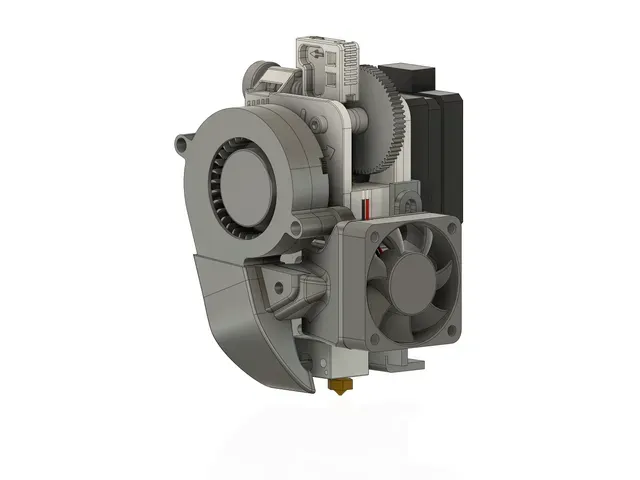

Kingroon KP3S 3.0/PRO mod for E3D V6 / Bambu Lab Hotend + 4010 Fan (UPDATED)

Print settings:

- KP3S V6 Heatsink Cooler.stl - NEEDS SUPPORTS - 5015 Fan Holder.stl - NO SUPPORTS - KP3S Nozzle 5015 Duct.stl - NO SUPPORTS (print slower - high overhangs) You need to print 3 files for the complete assembly. Variations below.

Different variants:

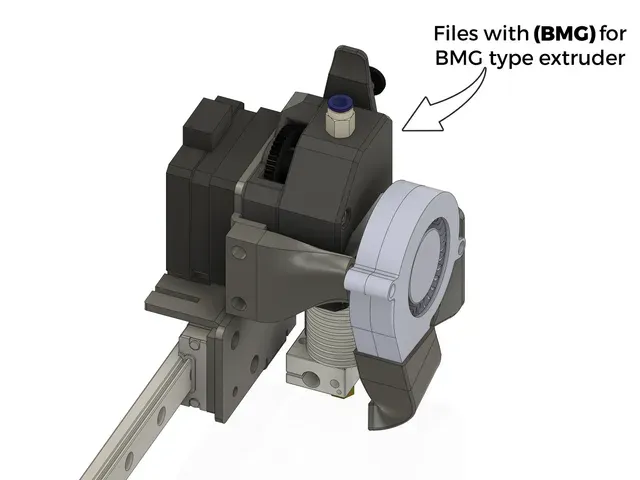

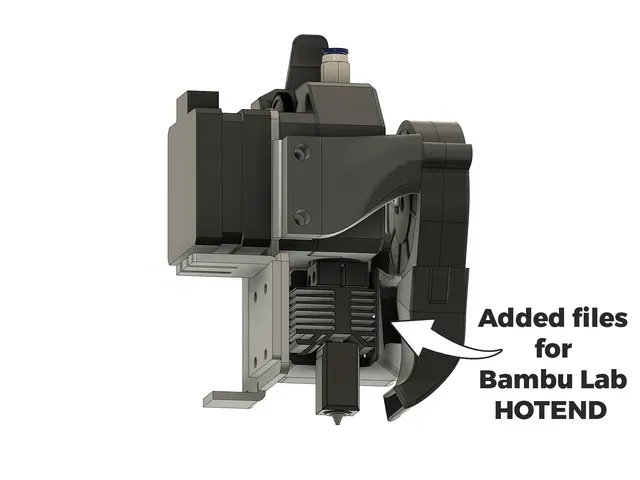

- (Titan) = Files for the stock Titan extruder on the KP3S. - (BMG) = Files for the BMG extruder. - Added files - (BMG) KP3S Bambu Lab Hotend ***.stl for those who want to use Bambu Lab hotend with V6 length adapter - https://www.printables.com/model/457053-bambu-labs-hotend-adapter-to-v6-size - OPTIMIZED flow - (BMG) KP3S Nozzle 5015 Duct (NEW for V6 and Bambu HE) for better cooling (2024-03-27).

To assemble it you will need:

- 3x M3 4.5x4.5mm brass heat inserts - 1x M3x10mm screws + M3 washers - 2x M3x20mm screws + M3 washers - 2x M4x10mm screws + M4 washers (might need to add a few) - 4x 3mm thick wood screws to mount fan (length depends on the fan design)

A new printhead for KP3S 3.0 with Orbiter V2 or Galileo 2:

https://www.printables.com/model/912993-orbiter-v2-galileo-2-printhead-for-kingroon-kp3s-3
