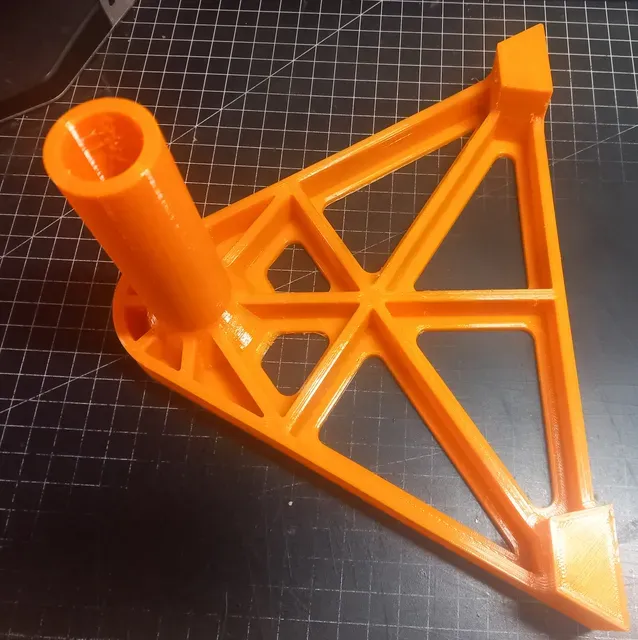

Filament Spool Holder

Wasn't satisfied with other premade models i found so far.

Wanted it to hand the spools in a 90° angle to the wall, so that i can fit more spools in tighter space.

Goal was to be able to easily swap between different spools, so no screws to mount them or hold them in place or mechanisms to insert a spindle. Also be able to have multiple spools hanging there and just swap filaments.

The holder is symmetric, so if you want to have the spindle on the left or on the right side can be decided when mounting the holders by just turning them around.

Added the filament feeder and filament tube holders. They fit to 4mm PTFE tubes to tunnel the filament from the spool to the printer. I used them to prevent the filament to crink, once there is to much drag on it.

The feeder is glued onto the Qidi mount. The Qidi mount fits on top and uses the tube holders to be fixed, also on the back two screws of the printer case can be reused to also fix the mount. Fotos coming next.

I printed them with PETG, 40% infill, 4 wall layers, 4 bottom and top layers at 0,2mm.
