The Probr : Micro FPV Frame

Reach me on social medias for questions, news and support [ Instagram ] [ Facebook ] [ YouTube ]

If you like my work you can [ support me via ko-fi ]

------

Updates :

- 2025/02/10 : upgraded parts for DJI O4 Pro support (cam plates & top plate) - 2023/06/26 : made 3.5" & 4" arm stronger at motor platform junction by adding 1mm around the screws (input from GoaFPV).

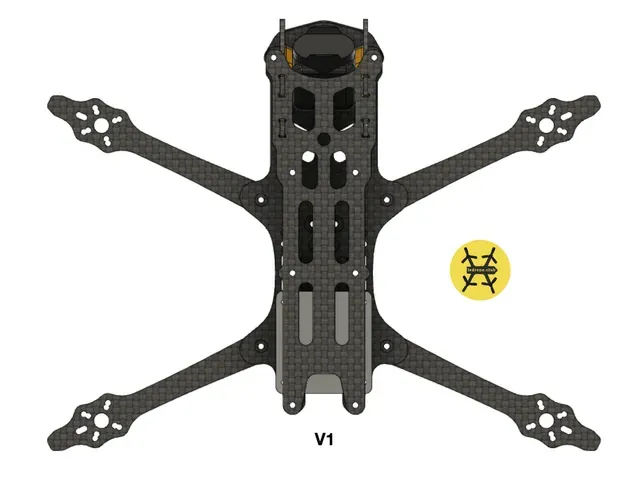

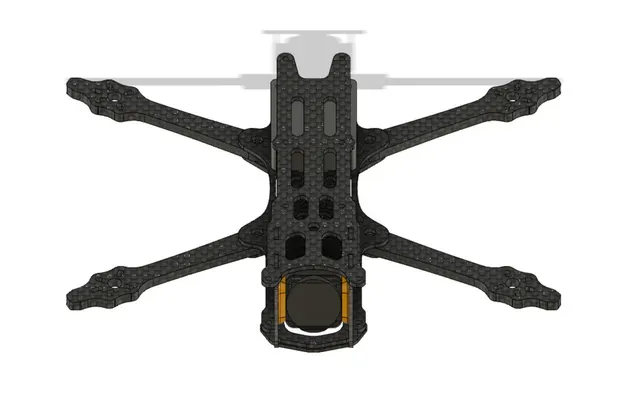

Frame introduction

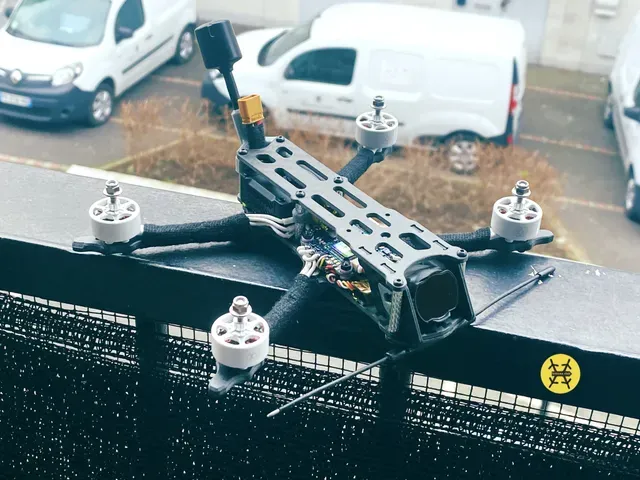

The Probr was designed around the DJI O3 video system and is now upgraded to support DJI O4 Pro system as well. The goal was to have a frame with props out of view that's still very compact, solid and usable. This is the result.

The frame weights ~50g assembled (from 42g of carbon).

Specs :

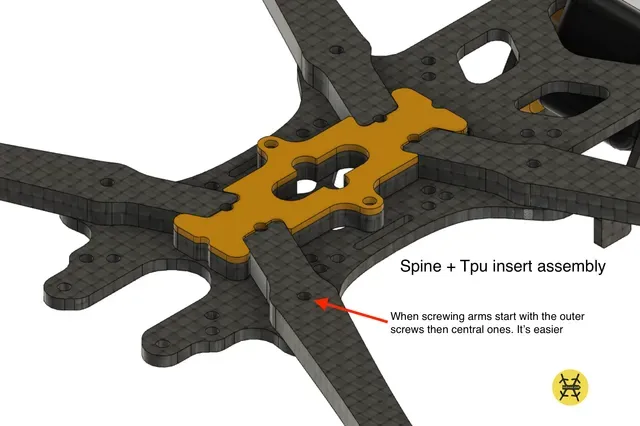

- Props and frame out of view (to be checked on the 4" arms, fine for the others sizes). - ND filter support for the O3 camera - 3.5" or 4" inch separate arms. - 9x9 and 12x12 motor mounts. - Dual 25.5x25.5 and 20x20 electronic mounts. - Camera plates with TPU inserts for camera dampening.

Assembly and hardware needed

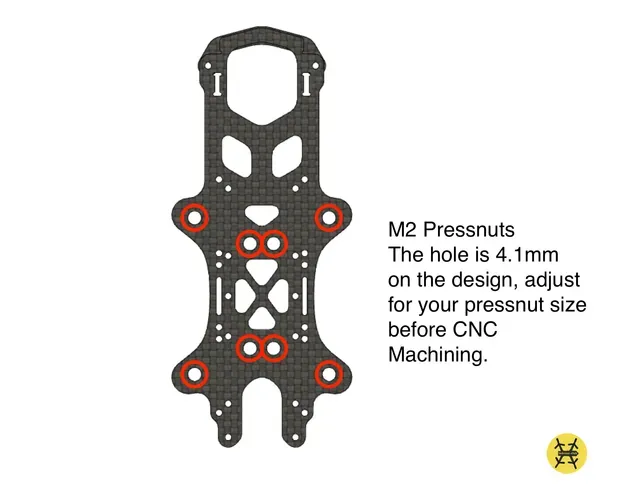

- 6x M2 20mm standoffs - 8x M2 Pressnuts (mount hole is 4.1 mm) - 8x M2 10mm screws (arm interlock) - 2x M2 8mm screws (front bottom standoffs) - 2x M2 12mm screws (central bottom standoffs) - 8x M2 6mm screws (rear bottom + top plate) The arms are 4mm thick so you also need 6mm motor screws.

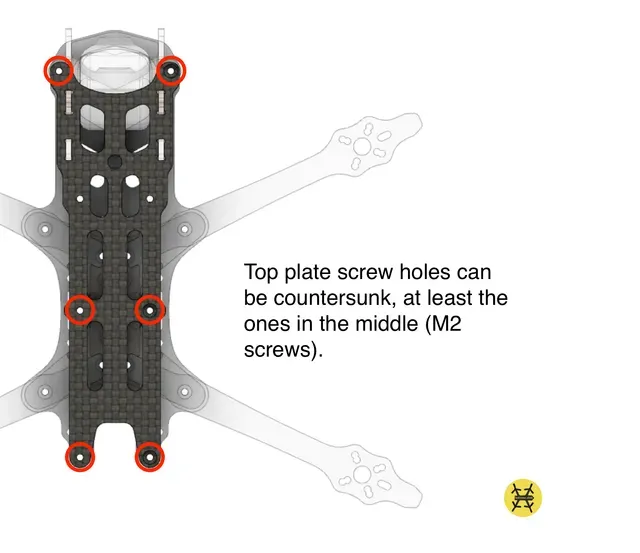

On the top plate you can countersunk the holes, use countersunk M2 screws.

Getting the frame cut

My recommended places are [ www.cncmadness.com ] (CA/US/Worldwide) and [ www.carbon-posten.de ] (EU/Germany), [ CNC DRONE 91 ] (EU/France), [ Haut Var FPV ] (EU/France), [ CNC Dupays ] (EU/France). Great quality cuts and fair pricing/delivery time.

you need to send the provided DXF files with the following instructions :

- 4 x arms (choose 3.5in, 4in according to your needs) : 4mm carbon fiber - 2 x cam plates : 1.5mm carbon fiber - 1 x nose plate : 1.5mm carbon fiber - 1 x main plate : 2mm carbon fiber - 1 x cross plate : 2mm carbon fiber - 1 x spine : 3mm carbon fiber - 1 x top plate : 2mm carbon fiber (choose between normal or side mount) You can optionally ask for countersunk holes on the rear of the top plate and have your screws sitting flush, chamfered arms, etc.

Feel free to ask me for directions and help.

Installing the VTX

The rear bay have 20x20 and 25.5x25.5 M2 mounts.

Extra gear

Some antenna & cap mounts provided here.
