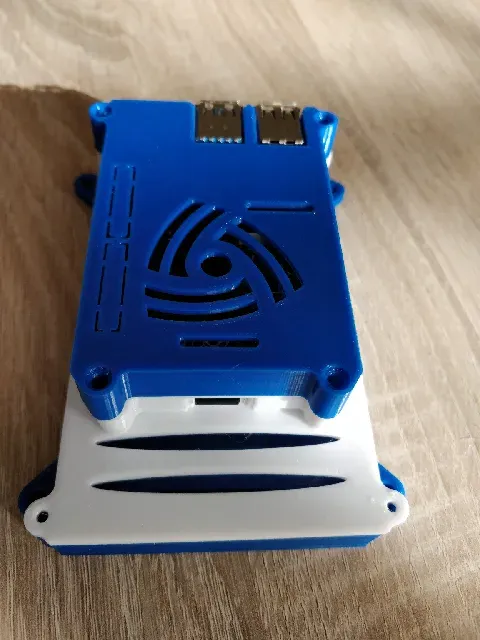

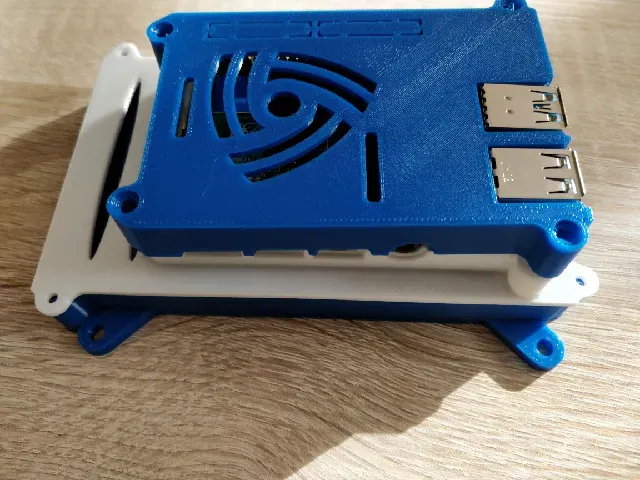

Raspberry Pi 4 Enclosure with 2,5" SSD/HDD Mount

A make would be highly appreciated!

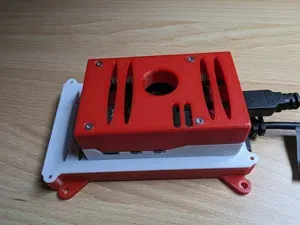

See also my Raspberry Pi 5 Version: https://www.printables.com/de/model/641817-raspberry-pi5-active-cooler-with-modular-25-ssdhdd

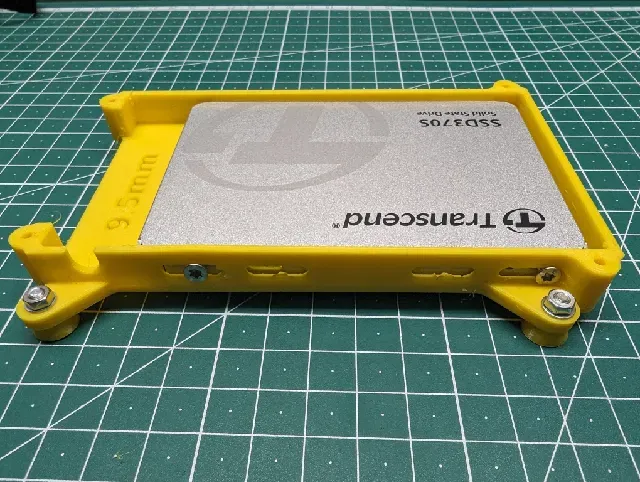

UPDATE 11.11.2023 : rpi3b-2.5drive_b14_notch_with_screw_holes added to mount SSD with M3 screws

UPDATE 05.11.2023 : Added Case for Renkforce M.2 SATA/USB Adapter

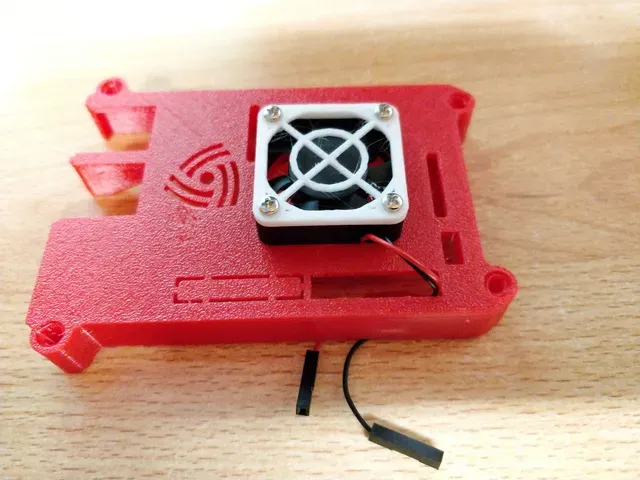

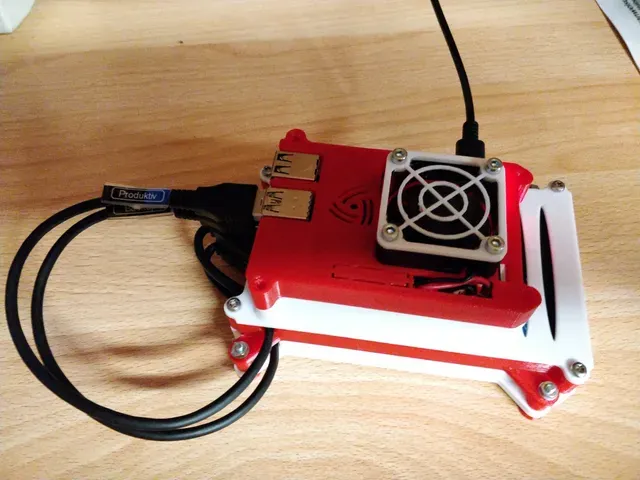

UPDATE 06.10.2020 : Two Top Cases with Fan support added (30mm or 40mm Fan). For the 30mm Fan version you need M2.5 screws, for the 40mm Fan version M3 screws. If you want, you can add a fan grill cover on the top. I printed one of this: https://www.thingiverse.com/thing:2802474

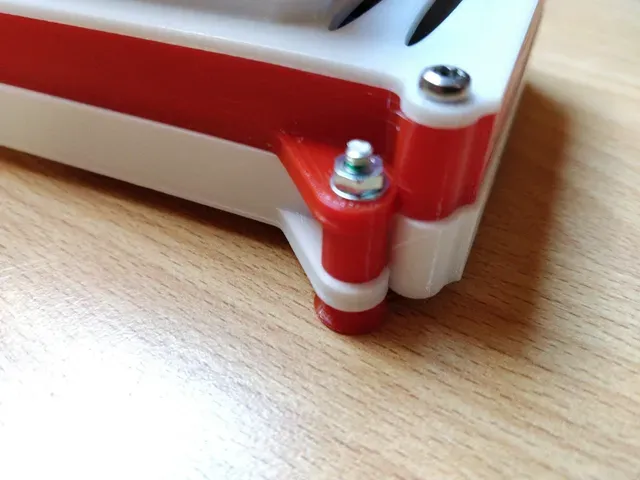

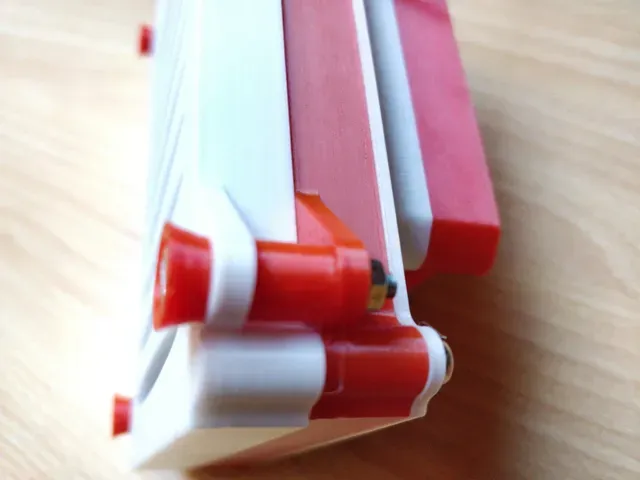

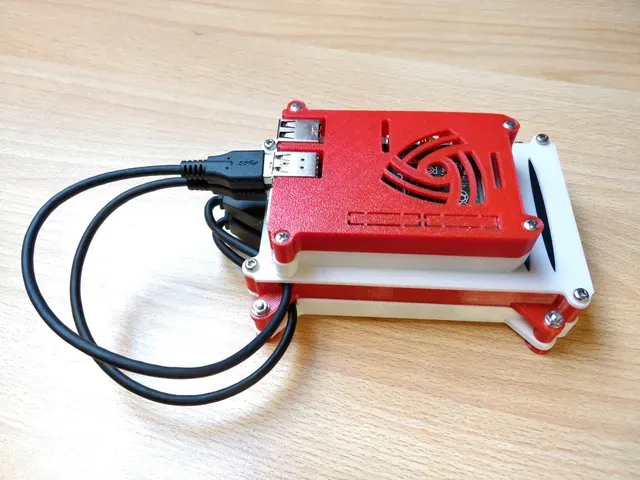

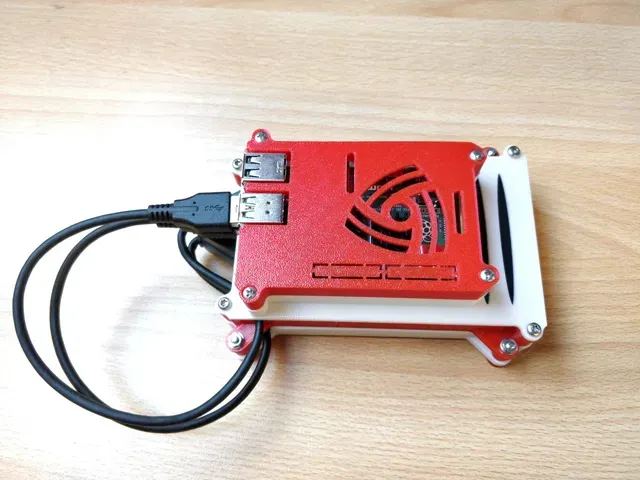

UPDATE 30.09.2020: Spacers and Feets added. Now you can simply add two (or more) disks into the Raspi Stack ;-) . For two disks you only need 4 M3x25 Countersunk Screws, 4 x M3 washer and 4 x M3 screw net. If you want to add more disks, than you need longer screws.

UPDATE 28.09.2020: SSD Enclosure with larger Notch added

This is an remix of the Raspberry Pi 4 Enclosure: https://www.thingiverse.com/thing:3714695

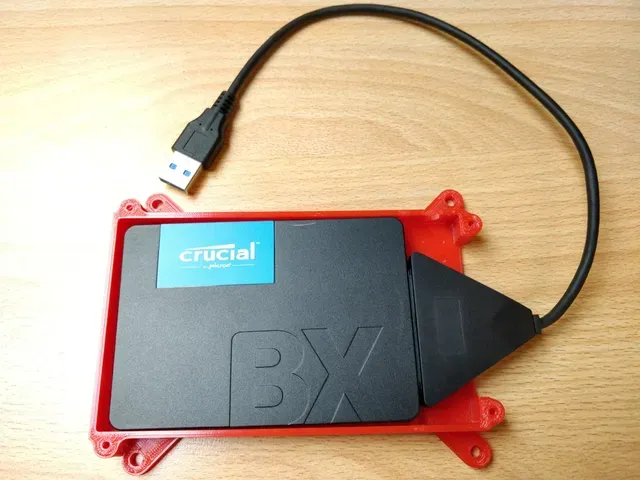

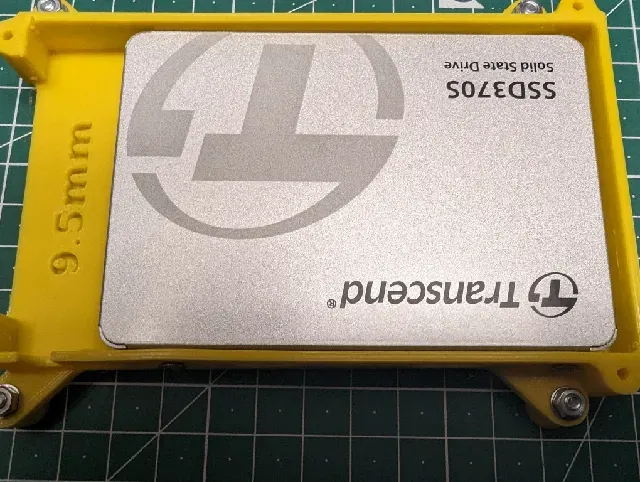

A SSD/HDD 2,5" mount is added.

The SSD Bottom part (RPi4-2.5drive_b14.stl) comes from: https://www.thingiverse.com/thing:2407893

The top can be used from the original enclosure.

You need at least the following parts:

- Rpi_4_Case_Top.stl - Raspi_4_Enclosure_with_SSD_mount.stl - rpi3b-2.5drive_b14_two_holes_9_5_mm.stl or rpi3b-2.5drive_b14_hole_on_one_side_9_5_mm.stl (Depends on your USB SATA Adapter). I have used this USB 3 / SATA Adapter
