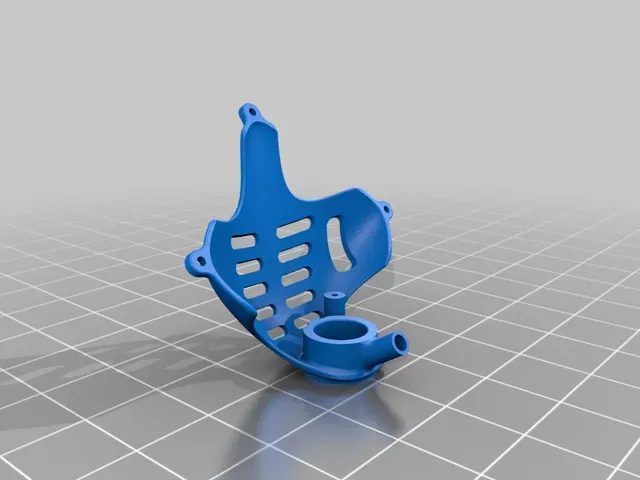

Moblite7 Canopy

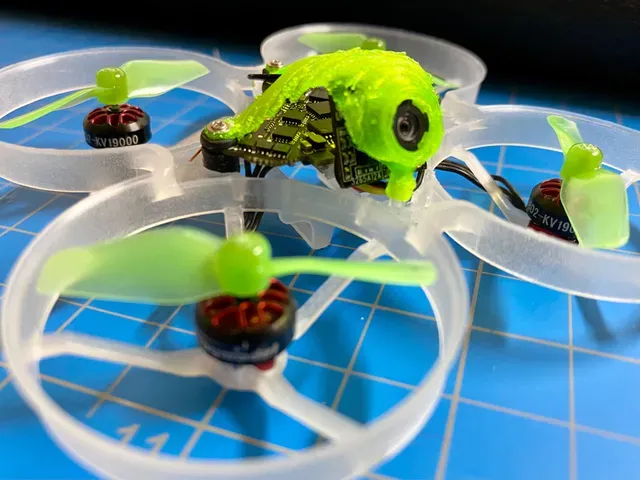

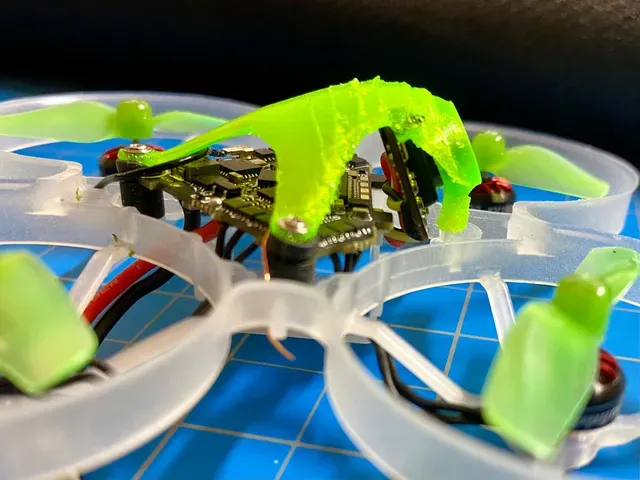

This is a remix of AngryDonFPV's Canopy to allow the front mount to slide over the post in the front of the frame, to better secure the camera. As a result, the camera stays in place, even with aggressive maneuvers and there is no jello.

One file has a 25 degree tilt and the other is 33 degrees.

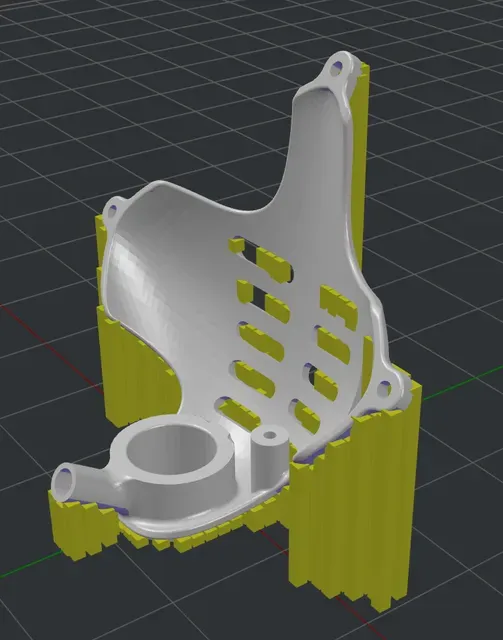

I printed out of TPU with 15% infill. I printed with the model vertical as shown in one of the pics and used supports.

Let me know in the comments below if you have any tips to improve printing quality, especially with TPU.

Print Settings

Printer Brand:

Raise3D

Printer: N2

Rafts:

No

Supports: Yes

Resolution:

100

Infill: 15

Filament: Sainsmart TPU Green

Category: R/C Vehicles
