Configurable Handle for Catch-All Trays / Desk Organiser

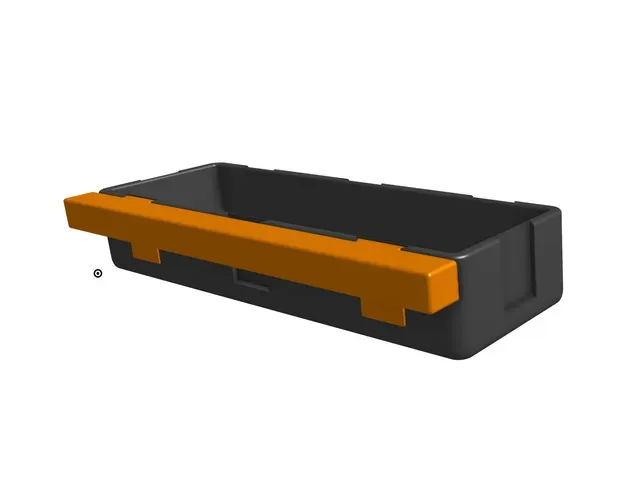

This is a very simple handle to allow the excellent Catch-All Tray design by HD to be used as a pull-out tray, perfect for use under a desk shelf etc.

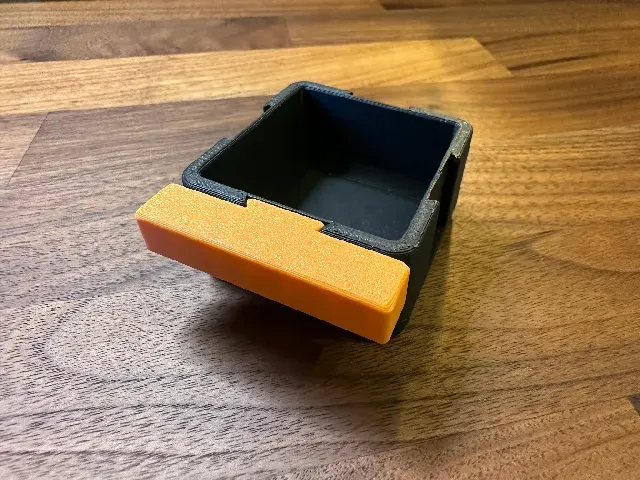

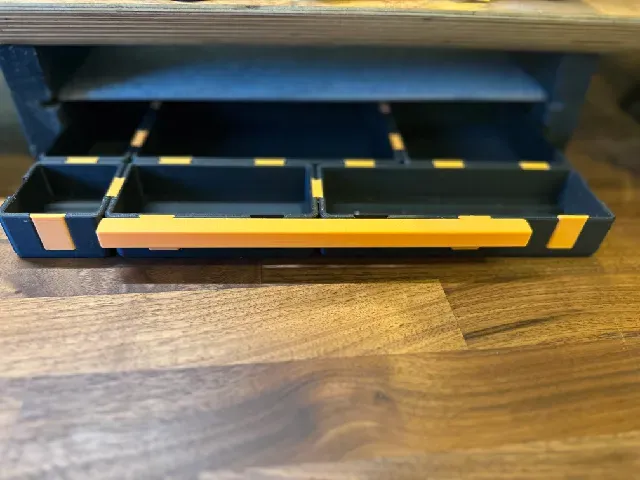

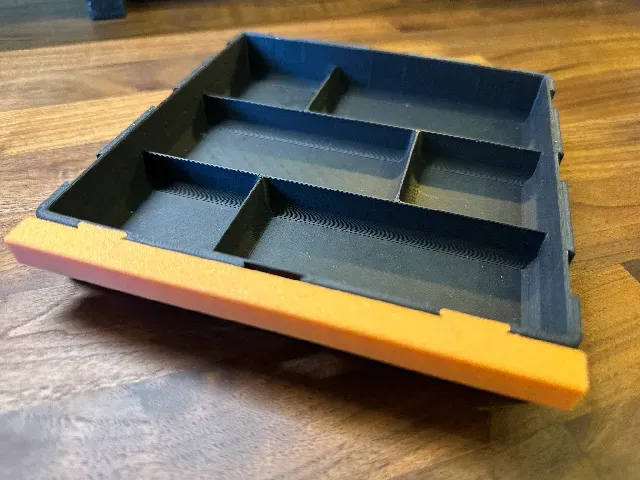

The 100mm, 150mm and 200mm versions of the handle can be used on individual trays and can span multiple trays joined using the standard connectors (although I would personally recommend using the tighter tolerance connectors for a more precise fit).

Parametric / Configurable

4 sizes have been provided, and the Onshape document below provides an easy configuration to create even more variations, sizes and designs.

Edit in Onshape.

Printing

The handles are best printed with the top surface against the print bed, thereby requiring no support to print.
