Mean Well PSU Dual-Stand (LRS350 + LRS35)

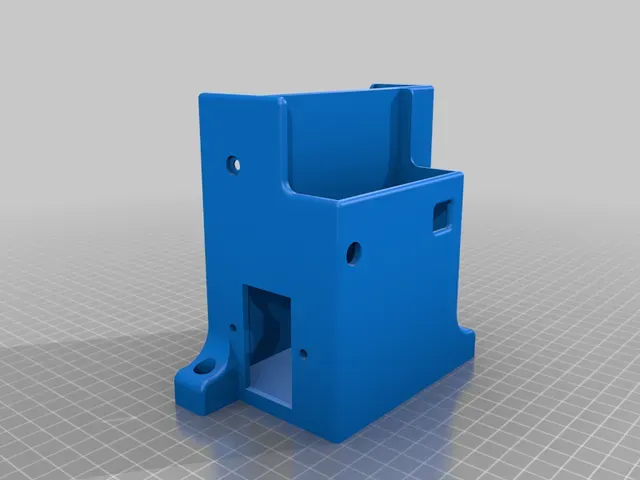

This is a PSU dual stand for 2 MeanWell LRS power supplies which uses the power socket (IEC) from the Creality Ender 3 original power supply.

fits:

- MeanWell LRS-350-24 (and others with the same measurements)

- MeanWell LRS-35-12 (and others with the same measurements)

notes:

- threaded inserts (M3)

- holes could be require pre-drilling (holes have 4.2mm diameter - better safe than sorry)

- 2mm additional depth for excess plastic

required materials:

- threaded inserts

- 2x M3 8x5 (power socket)

- 1x M3 6x5 (LRS-35 mounting hole / inner wall)

- screws

- 2x M3x8 (power socket)

- 2x M3x8 LRS-35 mounting

- 2x M4x8 LRS-350 mounting

- 2x M5 stand mounting (variable length)

additional notes:

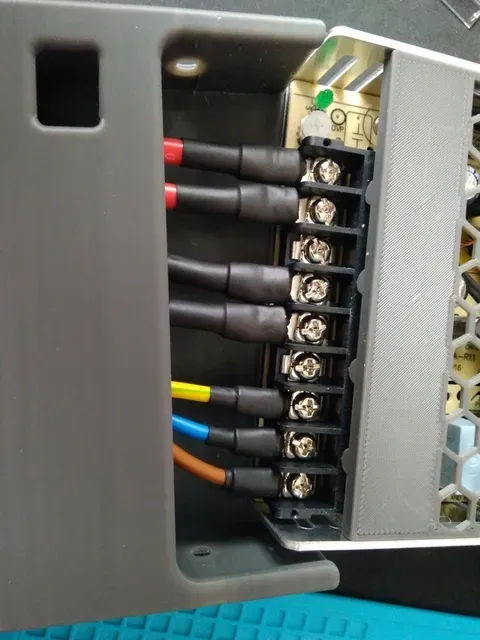

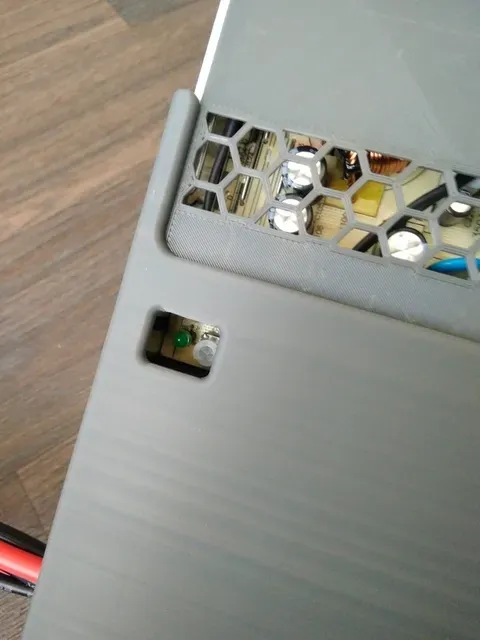

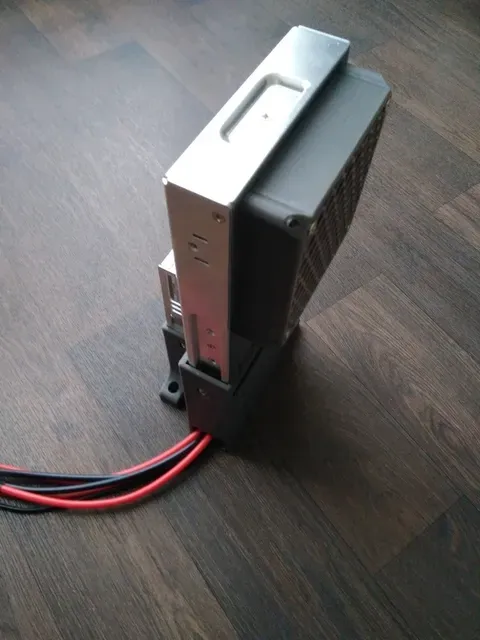

Provided pictures are from the first revision with higher tolerance for PSU, reduced it from 0.8 to 0.4mm in both directions.

Additionally, I changed the side mounting hole diameter for LRS35 from M4 to M3 (error in my variables).

Due to the long print time, I stick with it.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 20%

Category: 3D Printer Accessories
