Motor visualizer

Extruder movements on both MK2/S and MK3 can be quite difficult to see.

Even though these rotation indicators are mostly just for a cool look, they can be surprisingly handy when you’re dealing with a jammed extruder, overtightened idler or playing with retraction settings. You’ll be able to tell what’s the extruder doing at all times.

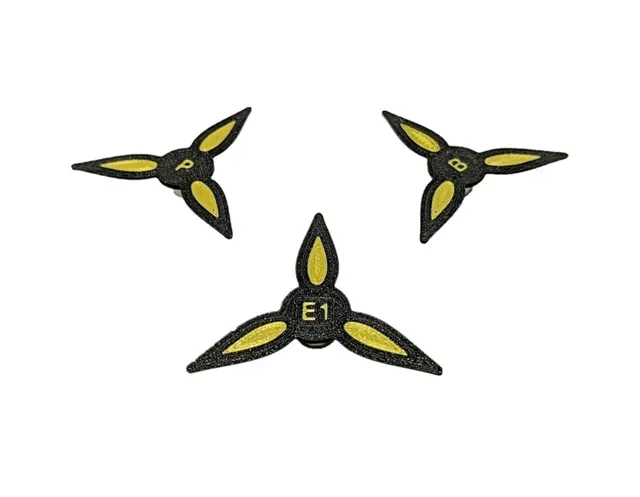

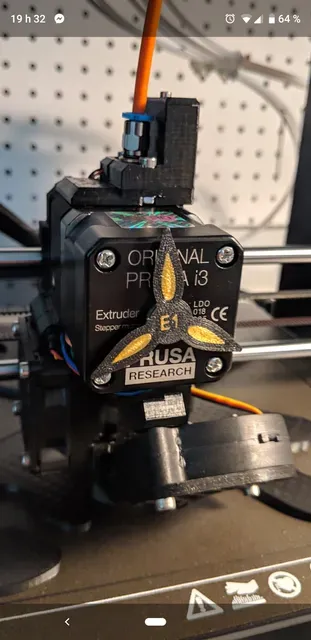

Letter E : Extruder

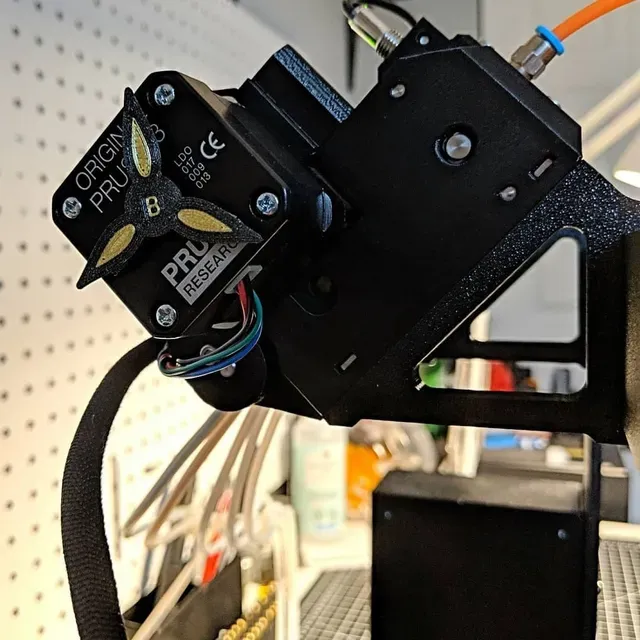

Letter B : Bearing

Letter P : Pulley

Print instructions

The design is super simple, all you’ll need is:

- Super Glue

- 8×3 mm rare earth magnet (neodymium magnet)

- 3D printed visualizer

MMU2S

Extruder 1 : Body (PLA Galaxy Black @Prusament)

Extruder 2 : Inside & letter (Printed with gold @polyalchemy)

Printed on a Original PRUSA MK3SMMU2S.

Fill: 100%

Support: No

Filament temperature: 210

Bed temperature: 60

Print settings : 0.15 mm Quality MK3

Sliced with PrusaSlicer 2.0.0
