PSU Carrier for LACK Enclosure

Description

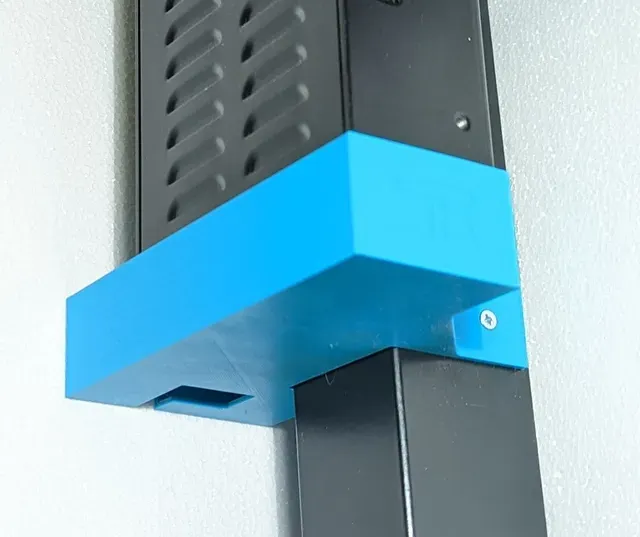

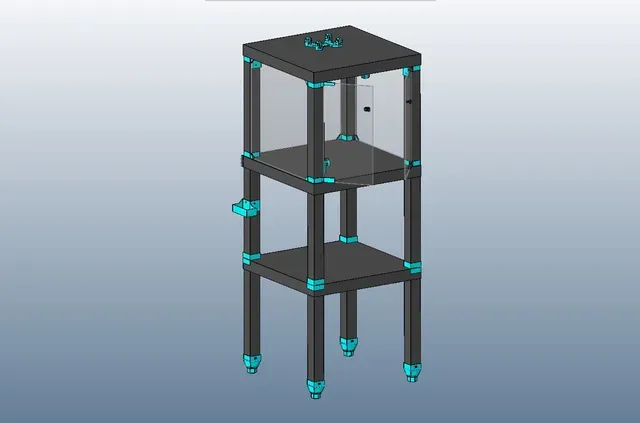

As it is recommended to have the PSU outside of the enclosure, I designed this Carrier for the Prusa Mk3(s) Power Supply Unit to be mounted on a leg of the LACK Table.

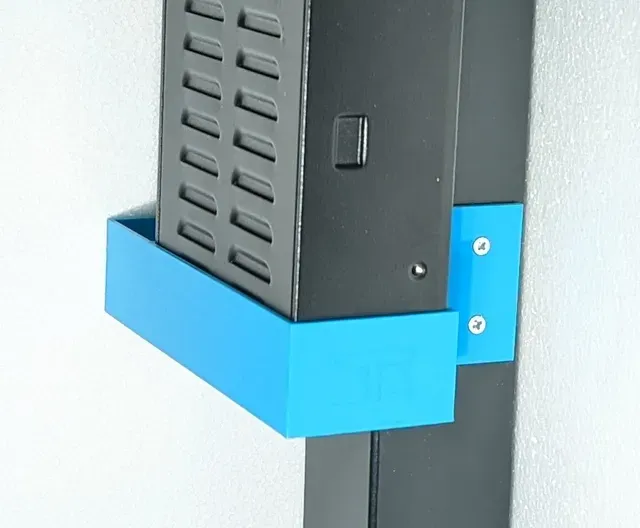

The PSU just stands inside the Carrier, and can be easy removed without loosen screws or removing any clamps. So you have immediately access e.g. for service purpose.

There are two version in the files section:

lack_psu-v1_pp is the Carrier for the Prusa Mk3(s) PSU only

lack_psu-Hybird_pp is the Carrier for the Prusa Mk3(s) PSU plus a pocket for an external PSU for the Prusa MINI

On the cover picture the hybrid version is shown.

Mounting

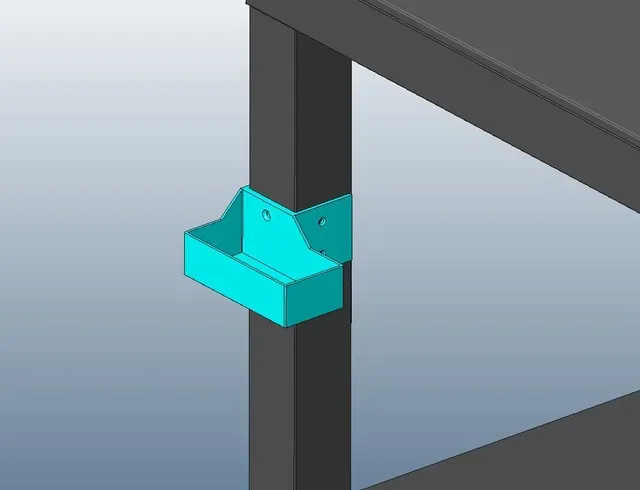

Place the Carrier in your preferred height and fasten it with five 3.5mm countersunk bolts.

Once mounted to the LACK Table, you can just insert the PSU.

Print instructions:

I recommend PETG with layer heights of 0.2mm as set in the pre-sliced *.mf3 files.

Other LACK Enclosure Accessories:

IKEA-LACK stack adapter

IKEA-LACK adjustable foot

lack_psu-v1_pp - Version 1.1

lack_psu-Hybird_pp - Version 1.1

Slicer: PrusaSlicer Version 2.5.0
