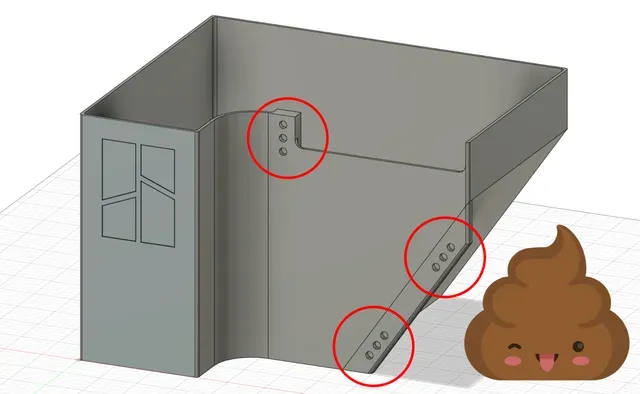

Bambu Lab - MAGNETIC Purge/Flush/Poop bucket for X1 and P1 Series - Fullsize and Slim Version | UPDATE 2023.05.13

My Bambu X1C vibrates quite a lot which means sometimes the bucket is being pushed away. When that happens I find filament everywhere on the table. That's the reason why I made this Remix.

If you already printed a bucket without cutouts for magnets, look here .

Because I just couldn't figure out how to mofify a imported .stl I made the files from scratch with Fusion360 by measuring my already printed poop bucket.

----------------------------------------------------------------------------------------------------------------

If you want to help me out a bit and see some stuff I made, work in progress, or models before they will be here consider liking and following my Facebook page , thank you very much - it means a lot to me! :) If I link something on Amazon, those are affiliate links. Doesn't cost you anything but helps me grab a cup of coffee from time to time - thank you! :)

----------------------------------------------------------------------------------------------------------------

I included a few different magnet sizes, if you need any others just comment them here or shoot me a message.

- Print with:

- PLA

- 3 wall loops

- 15% infill

- no supports are needed

- no brim needed

- Additional stuff:

- Just glue in your magnets into the cutouts.

- Parts:

- BambuLab_Bucket_Magnets_d%x%mm

- Check each seperate description for sizes of cutouts.

- It needs around 350g filament

- BambuLab_Bucket_Magnets_Slim_d%x%mm

- Check each seperate description for sizes of cutouts.

- Depth is 110mm, should be able to better fit in small spaces behind your printers.

- It needs around 260g filament

- Magnets:

- I have a bunch of those d5x1mm magnets . Depending on the size of the hole i just put the necessary amount in, that ways the magnets are usable more flexible.

- Here are some d6x3 magnets .

- Here are some d5x5 magnets .

- Updates:

- 2023.02.12

- Loosened tolerances for magnet cutouts

- 2023.05.13

- Moved cutouts one cm to the left. They should be on the metal now

- Moved Old Files in a new folder

- 2023.09.16

- Added more variants

----------------------------------------------------------------------------------------------------------------

I'm looking forward to your comments and makes. :)
