Mantis XOL 2 - for TAP & Bambu Lab hotend with 30mm fan

Площадка: Printables
Цена: Бесплатно
Лицензия: уточняйте на площадке; Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы: STL

21 Лайки
132 Загрузки
0 Напечатали
1 Комментарии
2 450 Просмотры

Эта модель на других площадках

MakerWorld

Автор:PrintStructor

Опубликована 11.02.2023

Скачать на Printables

Описание

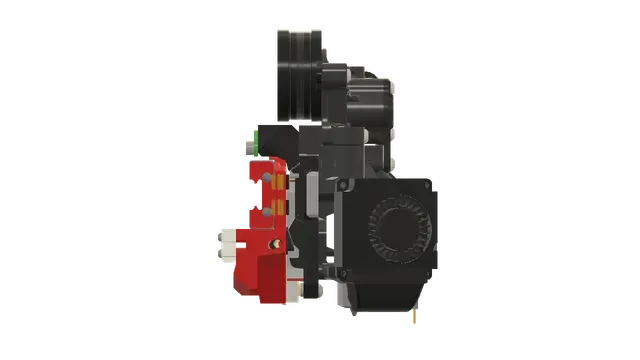

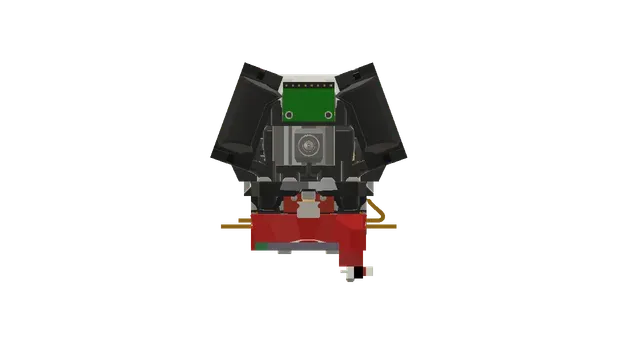

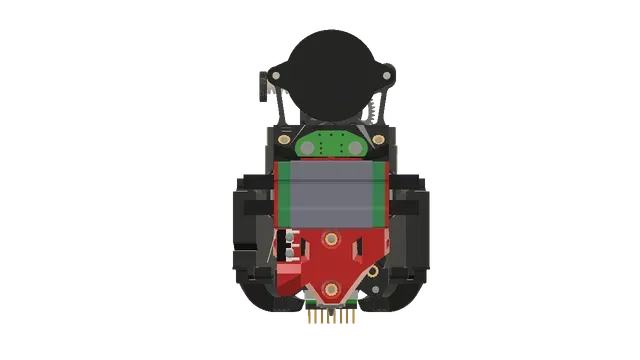

I have created a new carriage for the Mantis XOL 2 printhead to use a Bambu Lab hotend in combination with VORON TAP.

I also modded the faceplate to have one with led mount and created an adxl 345 mount for it. The complete carriage fits the new VORON TAP without any changes.

You can use a 30mm fan for cooling the Bambu Lab. The original heater and thermistor of Bambu Lab can be used for this MOD. Unfortunately I do not know the designation of the connectors of the thermistor, so I have extended and soldered these cables. However, a use plug and play should also be possible.

The step files are included in my GitHub

https://github.com/PrintStructor/Mantis-Xol
