Vortex V2 Linear Rail System Sovol SV01 PRO Biqu H2 V2

…Please at least be sure to hit like & post a make, I'd love to see your prints!

EDIT: Updated X belt adjuster block & slider models! Big improvement.

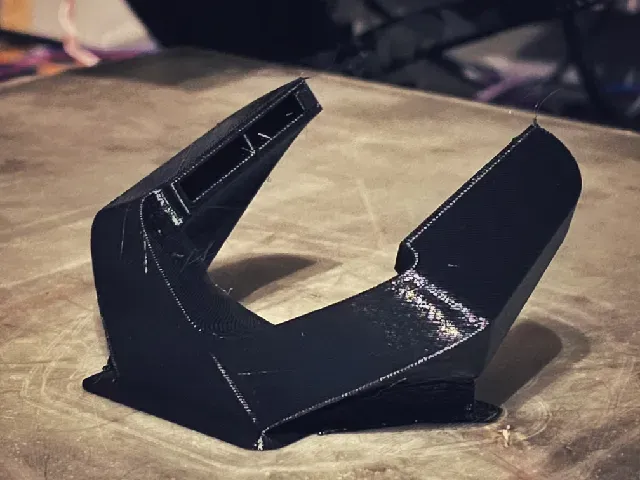

EDIT: Now with V2 Ducts!!

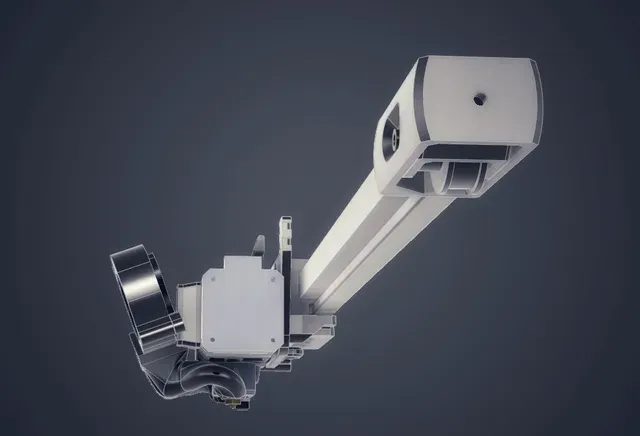

Here is the new Vortex V2 Linear Rail X system for the Sovol SV01 Pro using the Biqu H2V2 extruder. It provides crazy clean X motion & amazing quality prints with no surface artefacts that were previously related to the old style carriage wheels.

Check out the Y axis here!

https://www.printables.com/model/453650-linear-rail-system-y-axis-sv01-pro

This is designed for use with an M8 Inductive Probe & a printer with sensorless homing! It is perfectly suited for use with this upgrade!

https://www.printables.com/model/376137-demon-pro-skr-3-ez

Or if you already have a board capable of sensorless homing like the SKR Mini E3 V3 & just want something for the Y axis so you can remove the switch, print one of these!

https://www.printables.com/model/343851-sensorless-homing-endstop-bumpers

This system will probably easily fit the OG SV01 & SV03 printers too as the brackets are basically the same & you'll be making your own new X gantry anyway so you can measure your old one & adjust the holes to suit. Don't just use the values for the Pro here, as they'll be different.

BEFORE YOU START!

This requires metal working skills & tools!

You will need to cut metal bars to length accurately & drill accurate & straight holes in specific places & tap clean strong threads in Aluminium!

Parts List

1x 420mm 20x10 Aluminium Extrusion (SV01 Pro)

1x 420mm MGN12H Linear Rail (SV01 Pro)

1x MGN12H bearing block

1x M8 Inductive Probe

4x M4 12-16mm button head bolts - 2010 extrusion mounting

5x 5mm T-slot nuts M3 with bolts (use more if you like)

1x LDO 0.9º Nema 17 Motor LDO-42STH25-1404MAC

1x 6mm 40 tooth GT2 pulley 5mm bore - motor side

1x 6mm 40 tooth GT2 pulley 8mm bore - adjuster side

1x 1.2m 6mm GT2 timing belt - order more than 1m!

Vortex V2 Bracket

4x m3 8mm countersunk bolt - bearing mounting

2x M3 8mm cap head bolt - extruder mount right

2x M3 washers - extruder mount right

1x M3 10mm countersunk bolt - extruder mount left

1x M3 nut - extruder mount left

1x M3 20mm cap head bolt - top probe mount on extruder

Belt clamp

3x M3 8mm cap head bolt

3x M3 washers

3x M3 SHORT heat inserts (4mm)

Tension adjuster

2x M4 8mm cap head bolt - in end of 2010 extrusion

1x M3 30mm cap head bolt - through tensioner pulley

1x M3 nut - for 30mm bolt above
