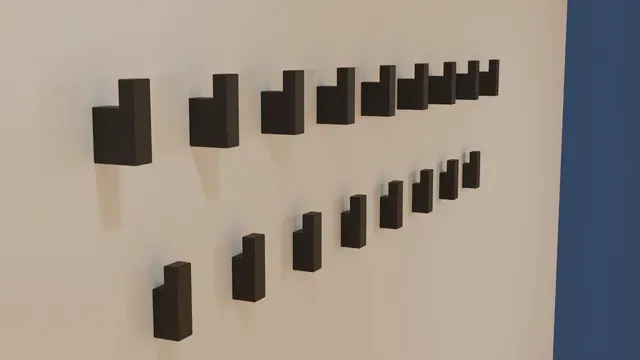

Blockenstein Coat Hooks (Parametric)

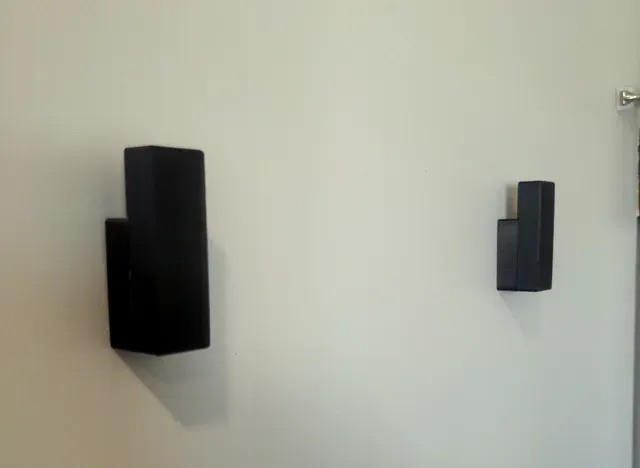

As part of a major bathroom reno, we wanted to add robe hooks to the back of the door, but I didn't want to spend hours hunting for something that would complement our new fixtures, so I just built these myself. They've been in service for six months now and are still going strong, so they appear to work just fine.

Adjustable

By modifying the OpenSCAD parameters, you can change the sizes, lengths, widths, bevels, etc., Screw holes are hard to drill precisely plumb, so the upper screw hole is wider than necessary to let you adjust the base.

Print Settings

I printed these in PLA with a 0.4mm nozzle, 0.3mm layer heights, 5 perimeters to make it strong and 10% infill to provide enough support for the upper flat faces.

No supports required for the base piece. The hook piece is strongest in the orientation shown, but will need supports for the upper part of the rail slot.
