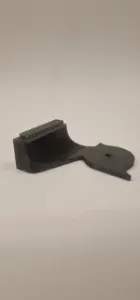

Nozzle Wiper Holder - X Axis - Ender 3 S1

This is a remix from N_F_B and Originally from Stefan .

They created a Nozzle Wiper for the Ender 3 and Ender3v2.

So i modified it for the Ender 3 S1 (Pro and Plus not tested!)

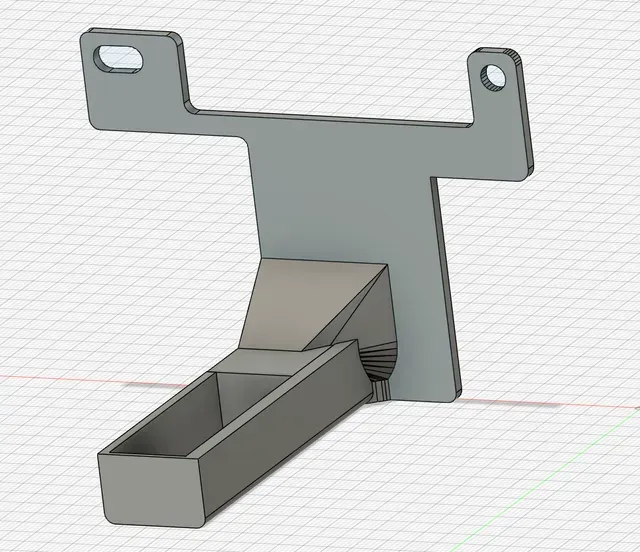

One Side has a Elongated Hole so that it can fit even with tolerances in the the Print.

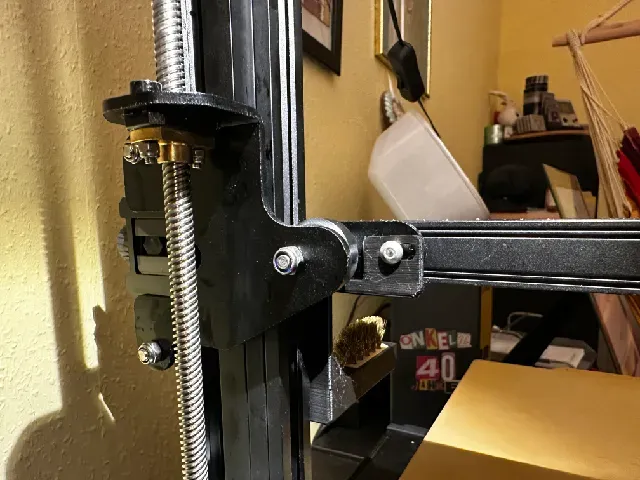

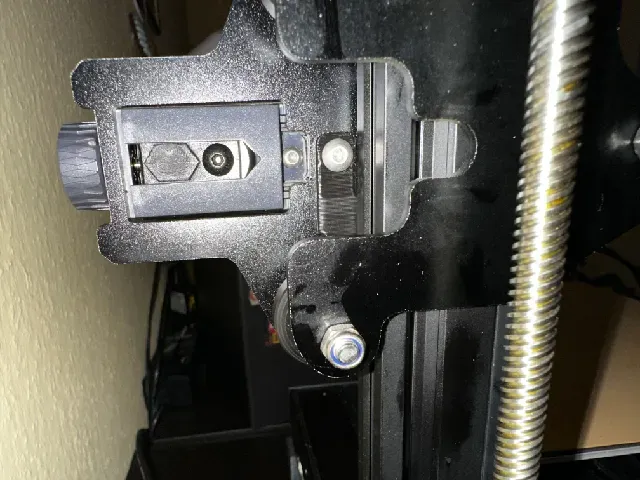

The Holder is attached to the right Side of the Printer and held by the original Screws. There is no need for additional Screws or other Modifications to the Printer. The STL needs to be printed with Supports (i used Tree Supports in Cura).

The Holder is “Designed" for a Brush from Würth. It is originally a Prush with Handle which is cut off. In my Case the Brush doesn't need to be glued to the Holder but if used differently it could be important.

The brush moves with the Z axis and can be used on any layer.

G-code:

You need to add Start G-code to your slicer or to the Config of Klipper, i added it to a macros.cfg which is included in the printer.cfg and used with the command clean_nozzle. You could add this to the Slicer Start Code as well. When added it should do a G28 before the Code below. It wipes the Nozzle 3 Times.

Code:

[gcode_macro Clean_Nozzle] gcode: G90 G1 X220 Y0 Z15 F6000 G1 X253 F6000 G1 X220 F6000 G1 X253 F6000 G1 X220 F6000 G1 X253 F6000 G1 X220 F6000

Print instructions

- Rafts: No - Supports: Yes - Infill: 20%
