Walker bot

Walker bot.

My little cute walking demo bot. Uses cams and links to perform a simple cyclic padding and pull back motion from a single toy motor gearbox.

You can find the gear motor on Ebay at the link below. If you need the screws that hold the model together I can include them with the motor. Just message me though Ebay.

Screws are 18off m3 x 6mm long

https://www.ebay.co.uk/usr/graffite

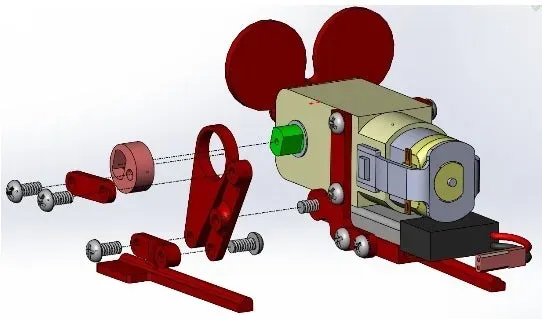

Look very carefully at the construction details and use only the recommended screws.

Do not over tighten the screws. Some parts need to be able to move over each other.

Print instructions

Category: 3D Printing Summary

You should ensure the parts are turn so the flattest sides are on the print bed.

Print list:-

QTY DESCRIPTION

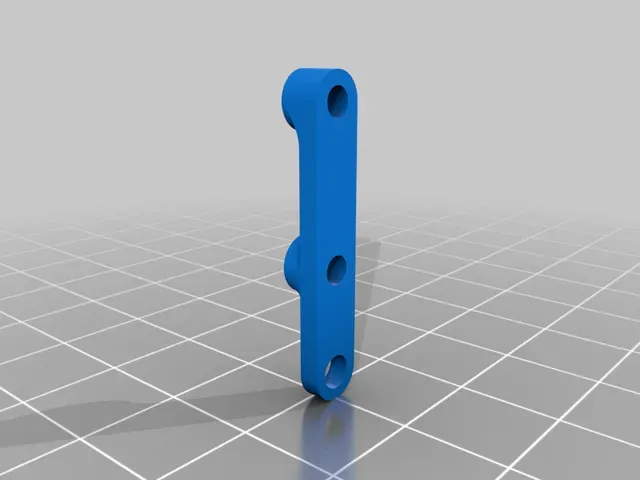

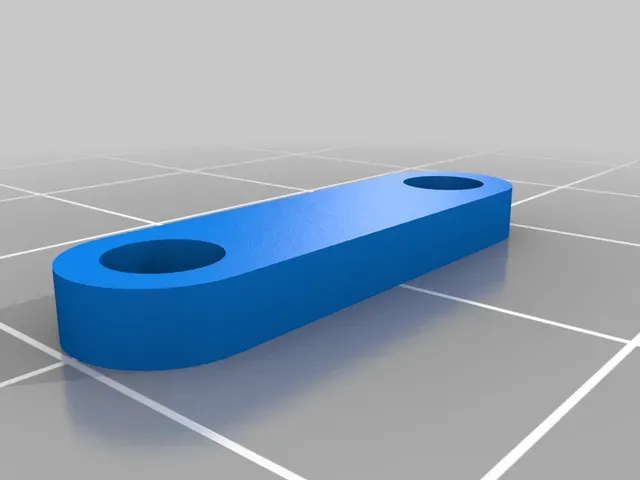

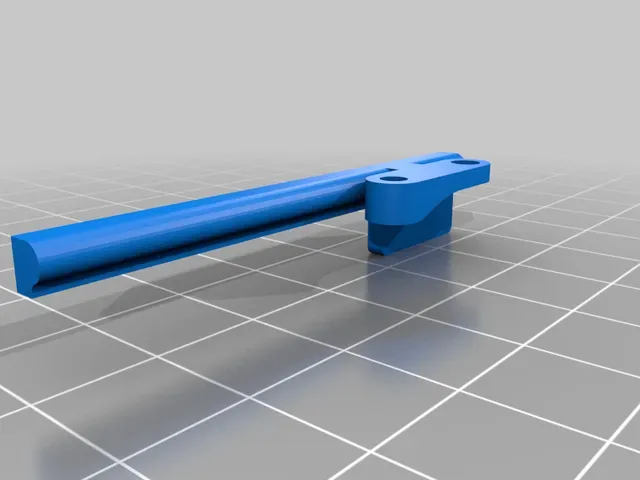

2 Link beam

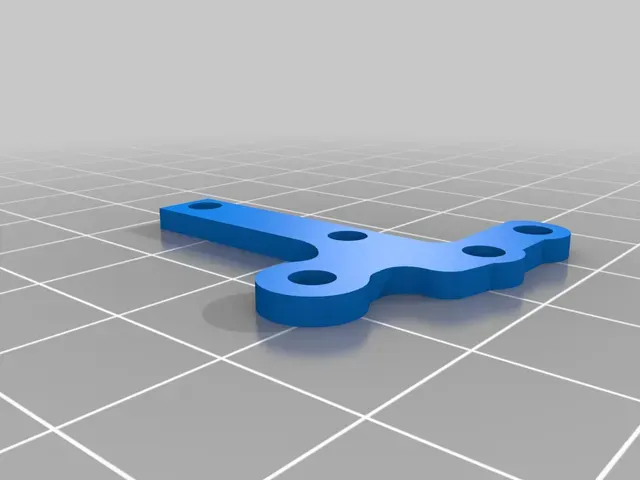

2 Leg link

2 Slide link

1 Right Lower leg link

2 Motor bracket

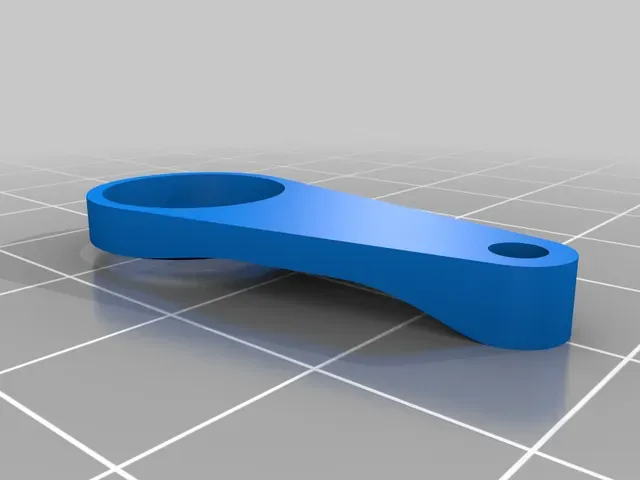

2 Motor connection

1 Lower leg link (Left lower leg

1 Eyes

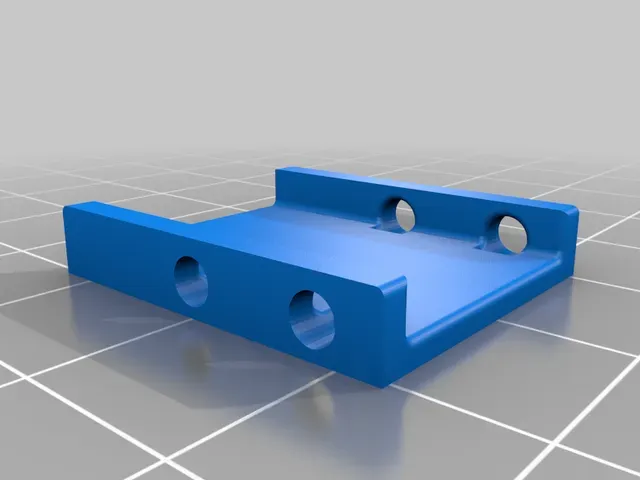

1 Battery retainer

2 Slide link

4 Washer
