Raspberry Pi Camera Mount - Waveshare - RPi Camera (B) - OV5647 - 40mm Fan Spacing Mount

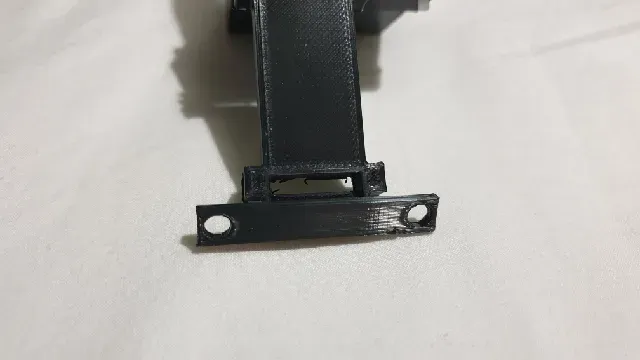

A mount which will let you attach a Raspberry Pi Camera to 40mm Fan Spacing, you can share the same screws with a fan if they are long enough.

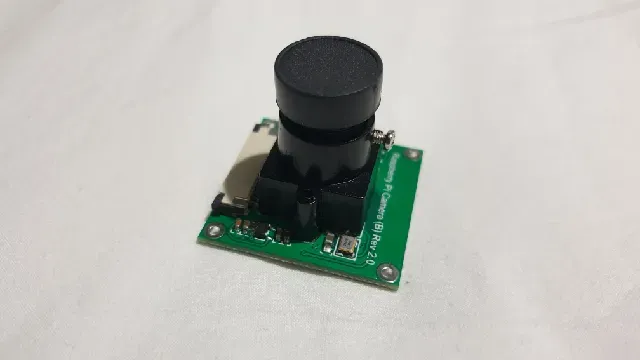

I couldn't find a similar mount so I decided to go ahead and try to make my own with Fusion360 and a measuring tape using MM measurement. Camera; Waveshare - RPi Camera (B) - OV5647

I used this with a Raspberry Pi Case that someone designed with a 40mm fan; “Malolo's screw-less / snap fit Raspberry Pi 3 Model B+ Case & Stands” and specifically the "Top_H20_Slots_SM_Fan40" with camera cut out.

My "GeeekPi DC 5V Brushless Cooling Fan 40x40x10mm" had long enough screws to accommodate this mount and the mentioned case.

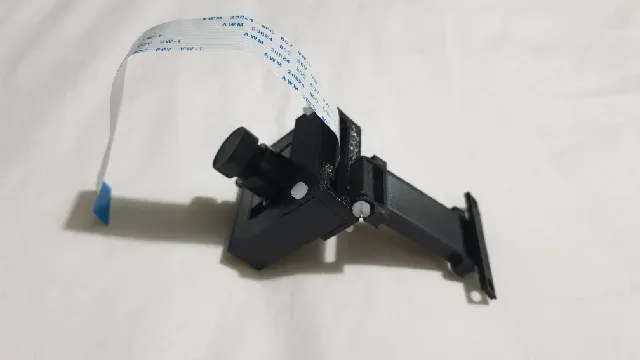

I used Four screws from “Nylon Slotted Cheese Head Screws - M2.5 x 20mm (10 Pack)” from ThePiHut. They were used like pins for hinges and two to help secure the main camera pieces. Main Piece + Attachment piece require supports. I used Tree supports at 20% support density.

Feel free to use as long as you attribute/mention me! Printed on a Creality Ender 3 Neo at 0.4mm and 0.2 resolution and tree supports where needed. You MIGHT need to sand some pieces as the main piece and attachment piece can be quite tight.

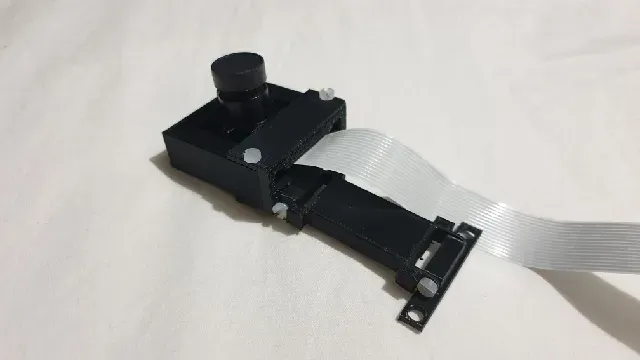

The Camera PCB slides into the Main piece loosely and then the Attachment piece locks it in place with a tight fit.

You can find an improved version of this mount here; IMPROVED Raspberry Pi Camera Mount - Waveshare - RPi Camera (B) - OV5647 - 40mm
