Raspberry Pi 4 Quick Release Latching Mount (2020 T-slot version) For Malolo's Pi4 Snap Fit Case

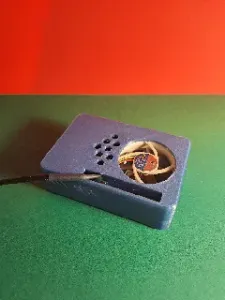

This is a 2020 T-slot version of the base used with this design which uses many of the same parts, however I have also included them here for convenience. Also for convenience I am including a base for Malolo's screw-less / snap fit Raspberry Pi 4 Model B Case .

Also included is a remixed a cover for a 40mm fan, and additional vent holes (this requires Fan40_Sled.stl from Malolo's original design, which is included here for convenience https://www.thingiverse.com/thing:3723561/files).

The T-slot itself was adapted from the model by Sanger_A2:

"Creality CR6 CR-6 SE Under-screen / Side Rail Raspberry Pi Model B 1 2 3 Case": https://www.thingiverse.com/thing:4722944

I have not tested this (and don't plan to at this time), but it should be a tight fit on the t-slot rail. If you print one, it's at your own risk, but please provide feedback if you do make one, thanks!

If you like this thing, please like it or download it (which helps to get me closer to my first free spool of Prusament). Or you can check out my site, to see what other projects are in the works.

Update 1/2/2022 - I added a back plate to this model which should be held on using four M3x10mm flat head screws.

Update 11/23/2023 - fixed the remix sources which were not showing. Also added the Case Base Plate which works with Malolo's Snap Fit Pi4B cases.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

200

Infill:

38

Filament: PolyMaker PETG

Category: 3D Printer Parts
