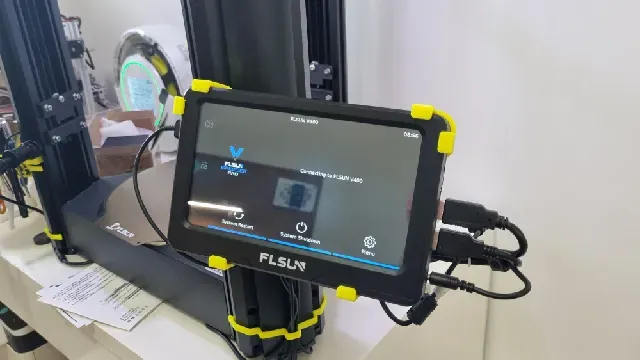

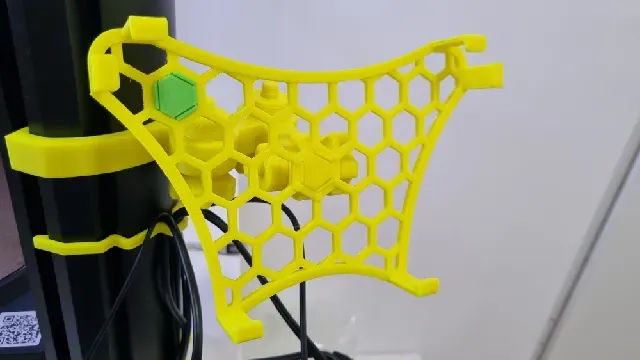

FLSUN v400 Speeder Pad Display Holder

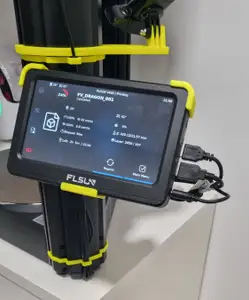

this is a v2 for my previous design Flsun v400 Speeder Pad Display Holder Upgrade

after v1 these are the new features to the new design:

- more robust holding - less material - better cooling : - spacers in the back of the screen - more air way - multiple connectors : - base connector to V400 Speeder Pad Adjustable Arm Mount - connector for cables in the back of the screen - there is a base connector to the back of the screen that can be modified to be attached to any base / arm [I WILL ADD MORE] there are 2 parts so no added materials needed :

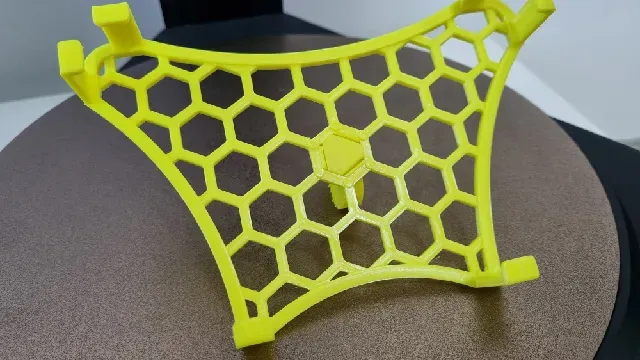

- the display mount - a connector for the back with snap-fit the is the original base snap fit (i will improve the design) to connect anything to the back of the screen.

i printed both with generic yellow PETG on my brand new Flsun v400

print params :

- temp : 240 for first layer 235 for the rest - speed : 150 mm/s - retract : 2mm * retract speed 20mm - NO BRIM - infill : lines 20% - walls : 3 (optional, but its stronger that way) - top/bottom layers : 3 / 5 (PTEG tends to be problematic at these speeds so this will keep a top surface nice and neat) - ironing makes it nicer - support for the screen holder : - support overhang angle : 70 - lines , 30% - cura did all the work ,came out perfect, easy to remove esun PLA+ printed better results then PETG

if you liked it throw me a LIKE
