Nozzle camera holder for Flsun Q5

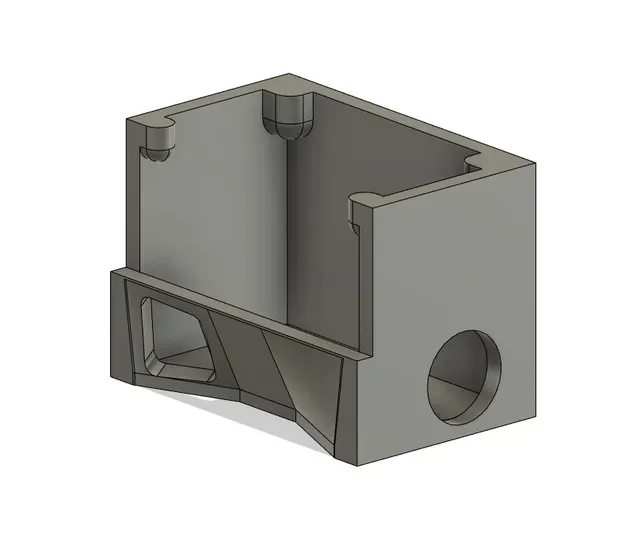

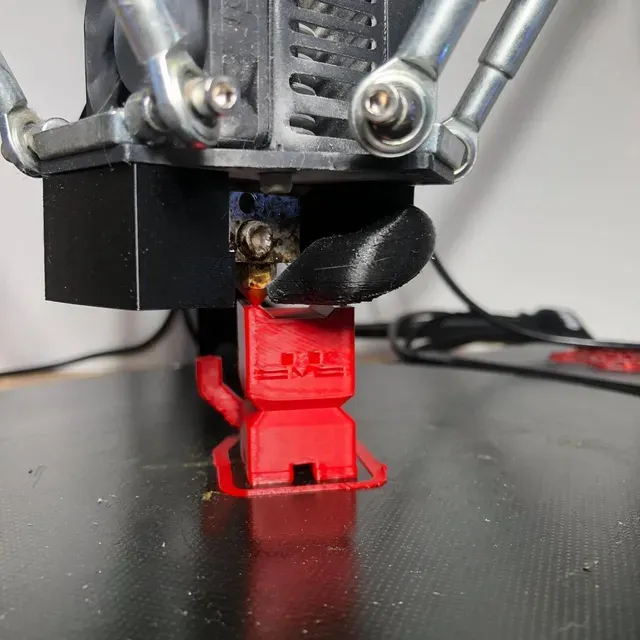

This is the nozzle camera holder I designed for my Flsun Q5.It snaps on the bed leveling sensor mount.

I was inspired by this tutorial: https://www.youtube.com/watch?v=GAp23w_dnNc

I mark it as a "work in progress" because it in my opinion is not very reliable, but it works.

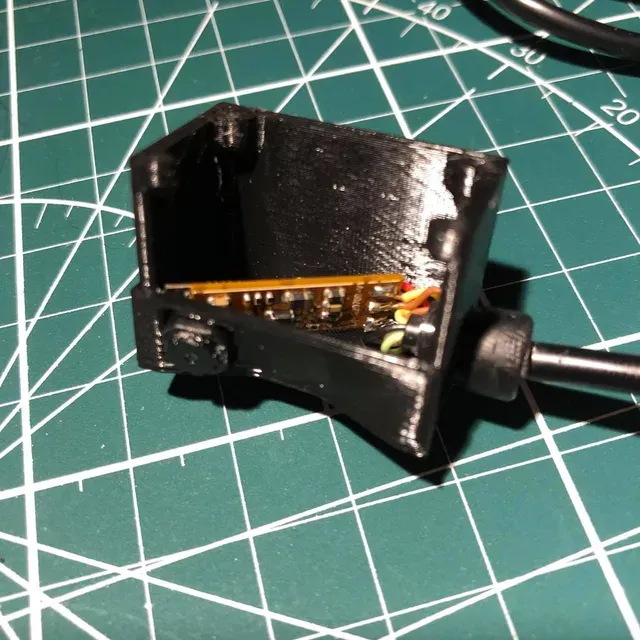

- I used endoscope from AliExpress as a camera (this one with soft cable https://aliexpress.ru/item/32946724653.html ). In tutorial I followed, there was advice to check camera orientation and cut in the bottom. It didn’t work in my case, in my endoscope the board was mounted sideways, and I was lucky not to damage it when cutting. - I cut off endoscope LED lights, but now I think I should have left and used them. The camera holder blocked light from my LEDs installed in delta poles, so I had to use my powerful video light to have a normal image. - I printed the camera holder with PETG, and it gets soft because of hotend heat, so the camera can move a little; - I will not leave it mounted permanently because there is to many problems to solve to use it that way: wiring, additional LED on nozzle camera, hard to clean nozzle before print start, melting nozzle holder. Check out my collection of Flsun Q5 Upgrades I made or used .
