MKS TS35 V2.0 screen mount for Flsun Q5

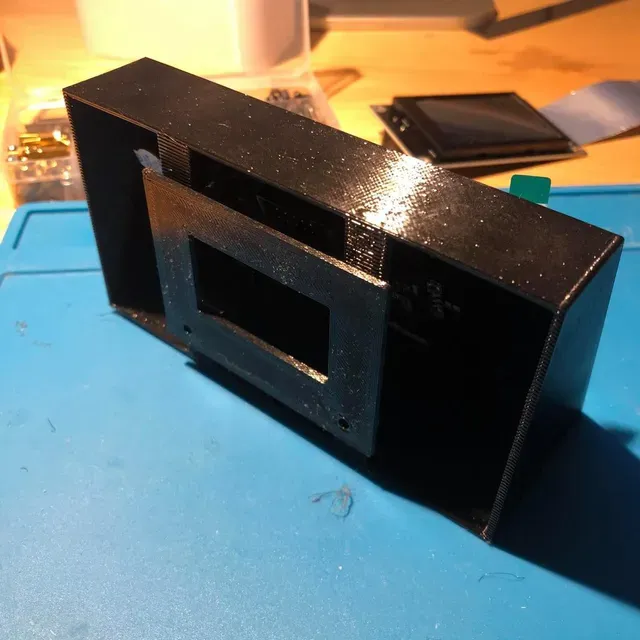

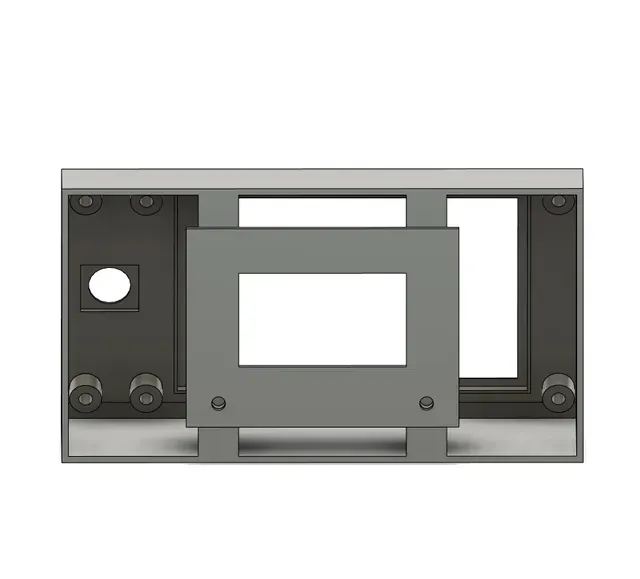

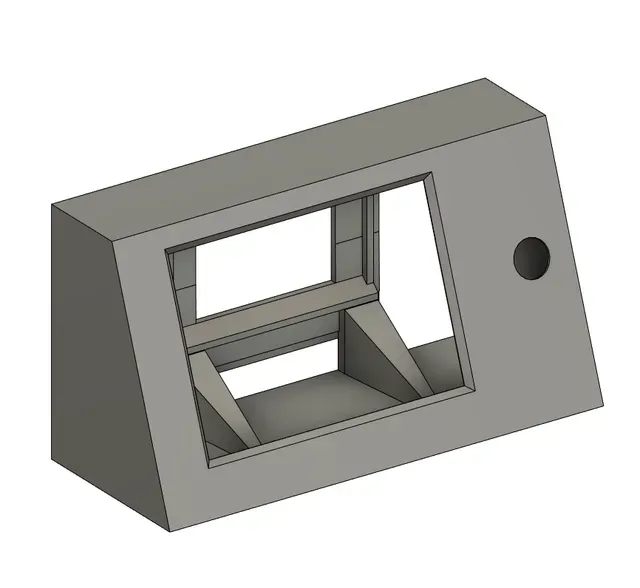

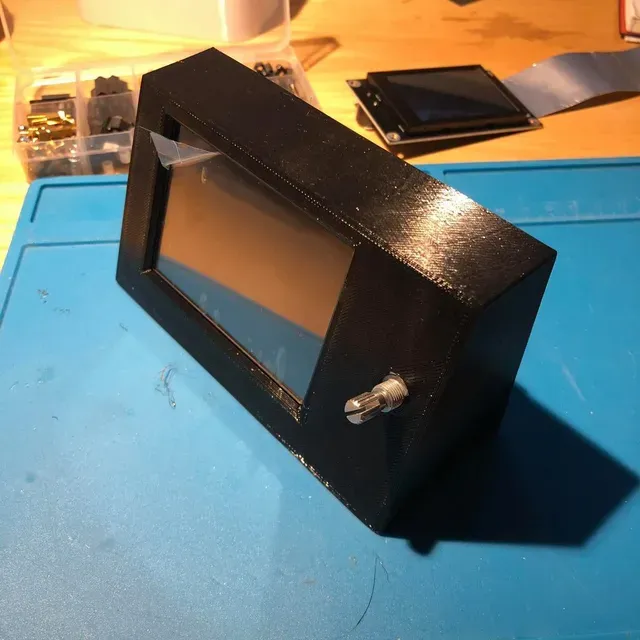

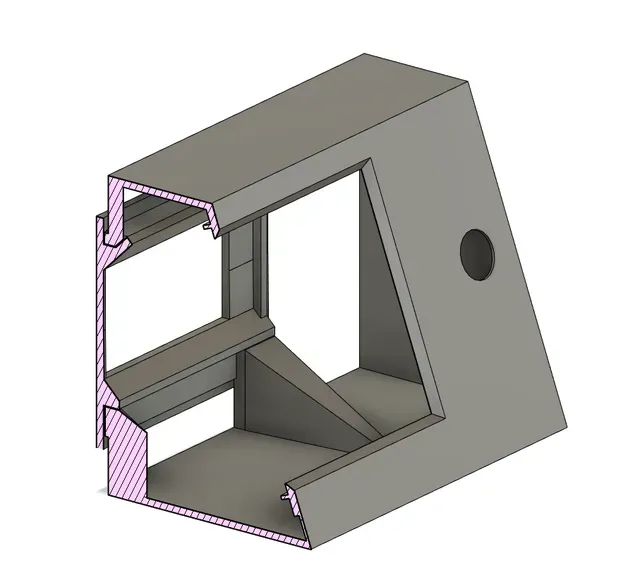

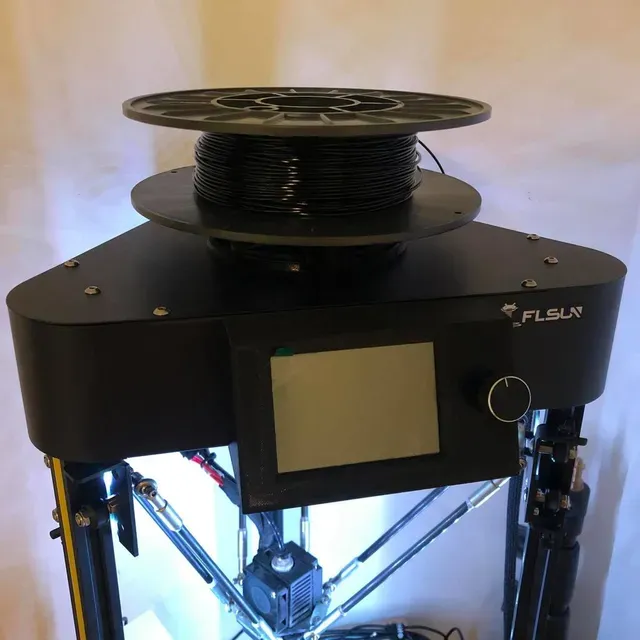

This is my design of MKS TS35 V2.0 screen mount for Flsun Q5 - version 2.

This screen comes with Robin Nano v3 board, I bought the board and decided to make this mount. It uses the standard screen hole of Flsun Q5. No cutting or any printer body change needed.

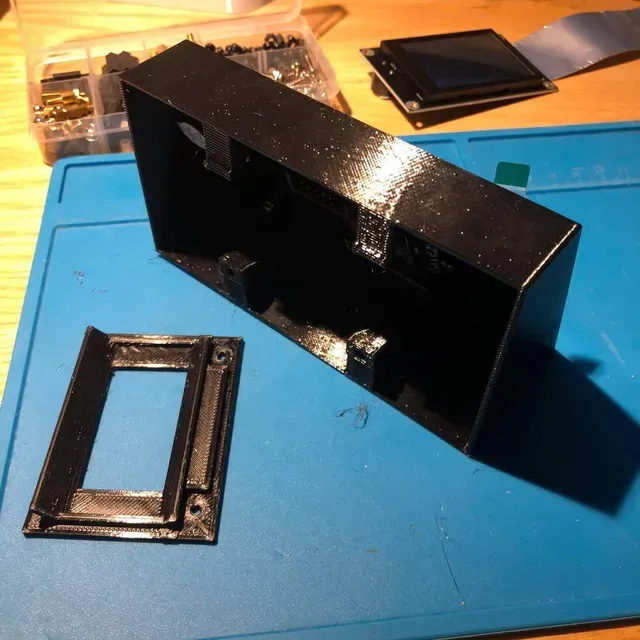

It prints without supports (print "face" down) and uses standard computer screws to secure the screen and fixing plane.

To put in the screen you have to push the bottom part all the way to the lower corner of the mount.

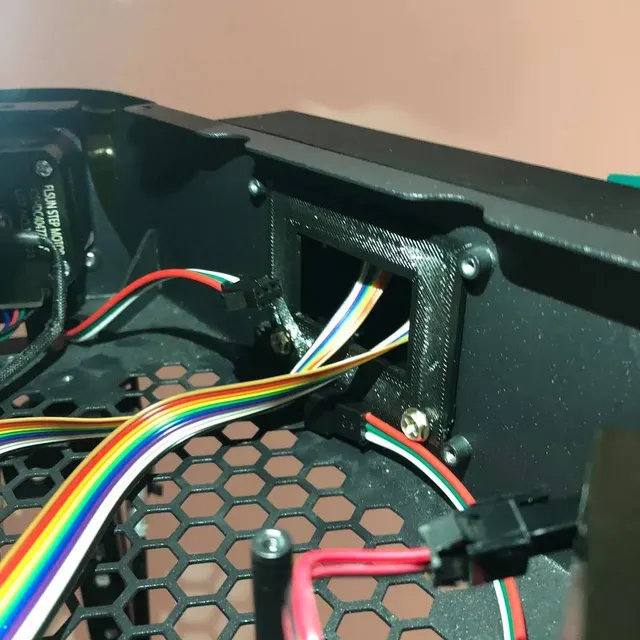

To mount it to the printer i had to remove my main board and power supply.

Check out my collection of Flsun Q5 Upgrades I made or used .
