Flsun Q5 horizontal spool holder

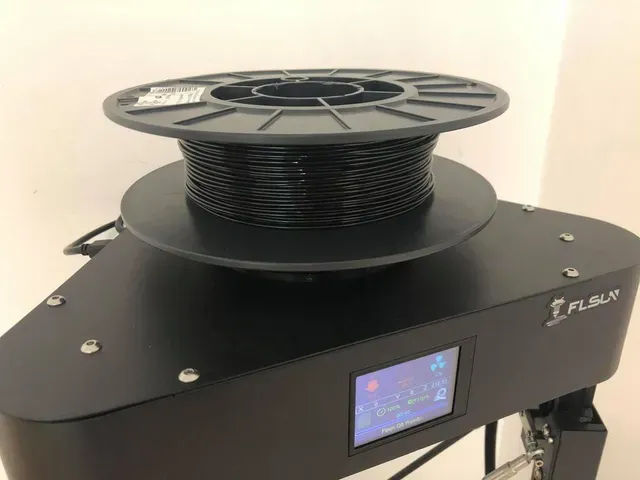

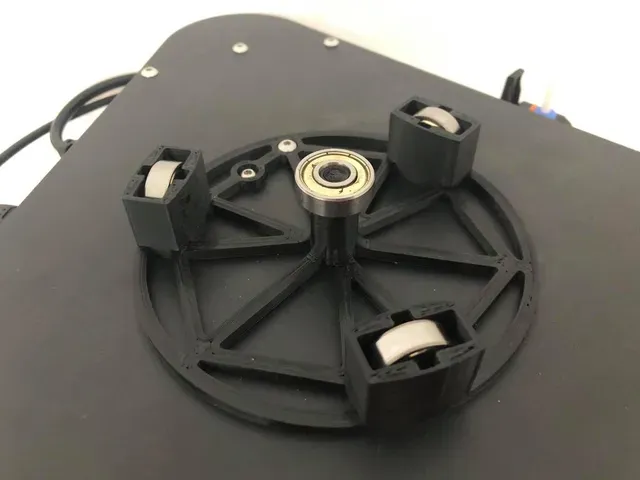

This is the spool holder I made for my Flsun Q5.

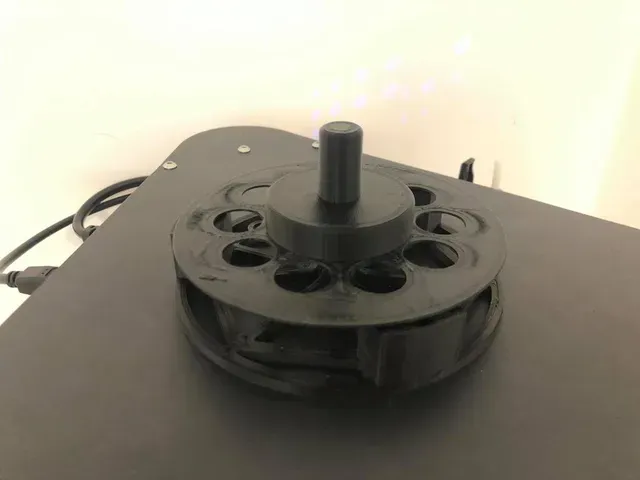

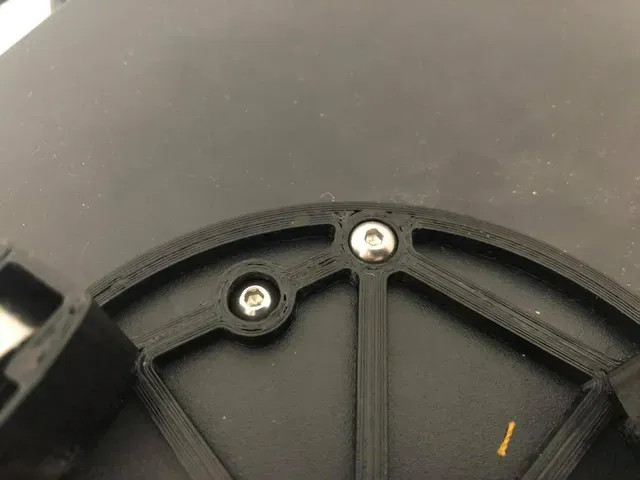

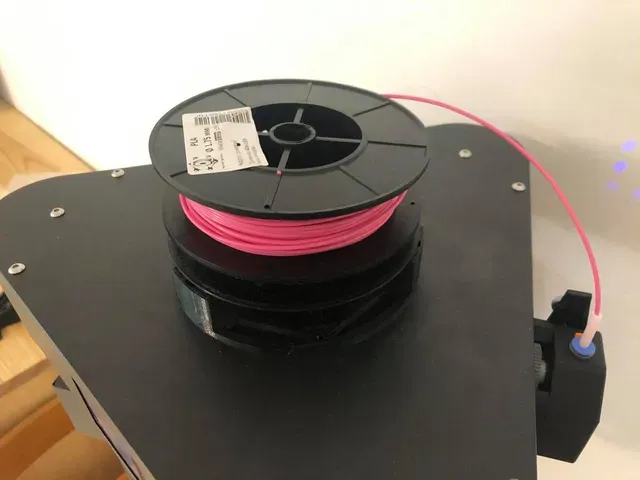

- only four 608 bearings needed; - stock screws and holes used; - no additional screws needed for assembly and mounting; - took me about 5 hours to print (40 mm/s, 0,3 mm layer); - there is mount for filament guide and run out sensor I planed to design in the future. I have two types of spools, large with 53 mm center hole and small with 15 mm center hole, so top part is made for them.

You need to print:

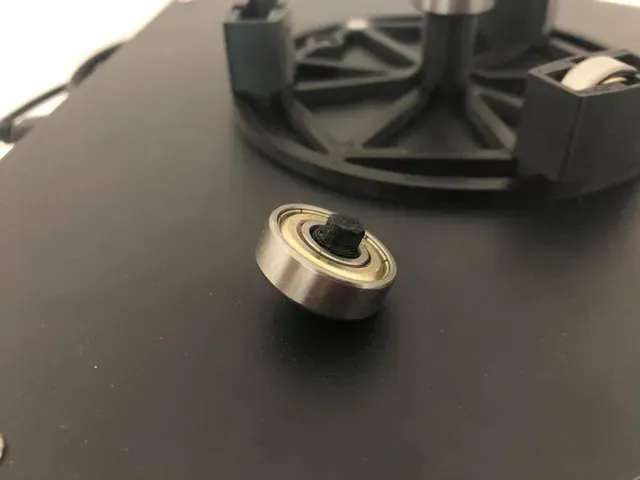

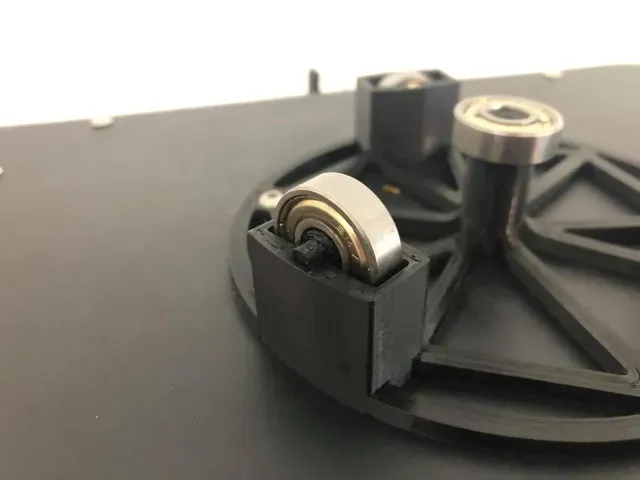

- base; - top; - three bearing holders; There are two mounting positions for bearing holders, so they are higher or lower, just rotate the holder and select how to mount it.

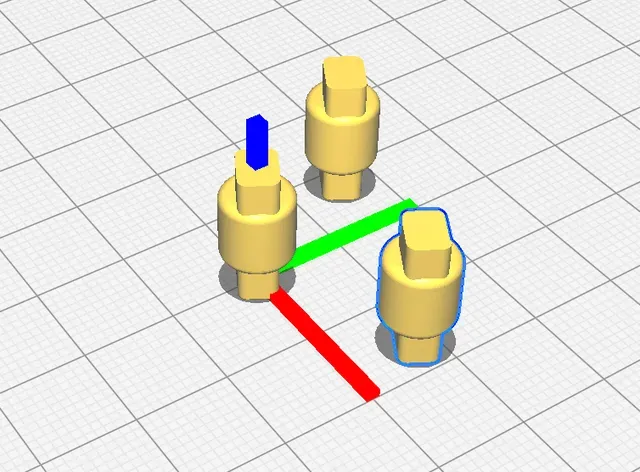

Everything should be printed with supports. To print bearing holders you should rotate them, you can print all three at once as shown on one of the images. And for bearing holders it is better to use brim.

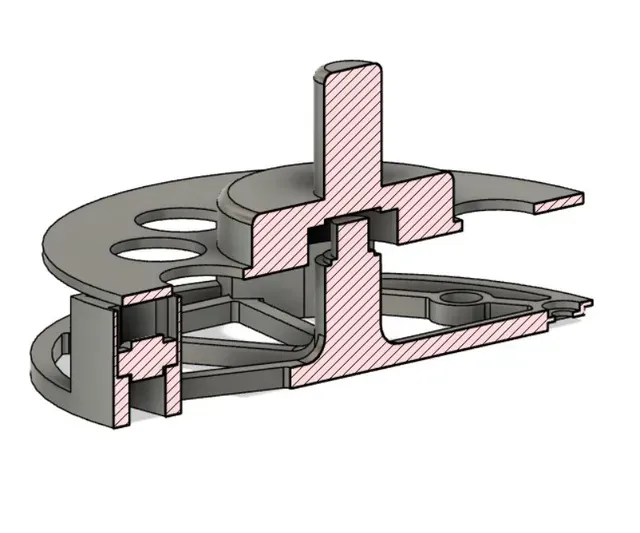

I also included *.step format file for the top part, so you can easily remix it for different spools.

Check out my collection of Flsun Q5 Upgrades I made or used .
