USB Touch Dimmable Led Desk Lamp v1.4

- If you don't see a gif animation here, then something broke, or you are blocking it. Turntable is 33cm.

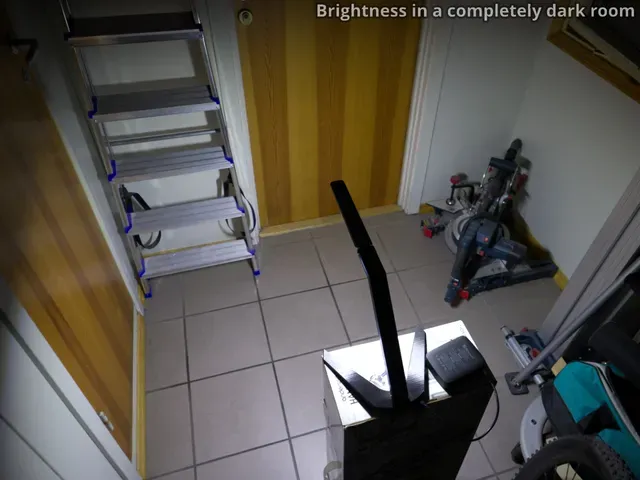

- Photo 4 shows pretty well how bright the default top with the 17cm LED COB is.

- If you make one, consider uploading a picture. It's nice to see other's prints.

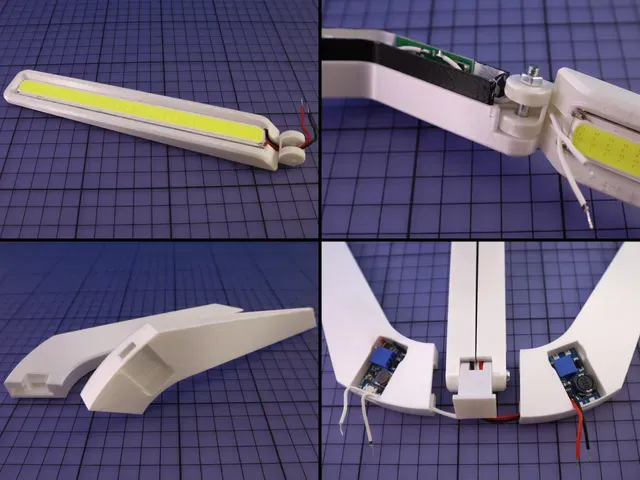

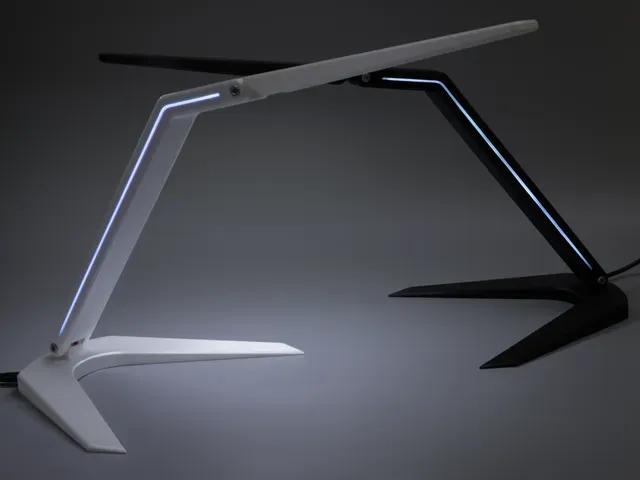

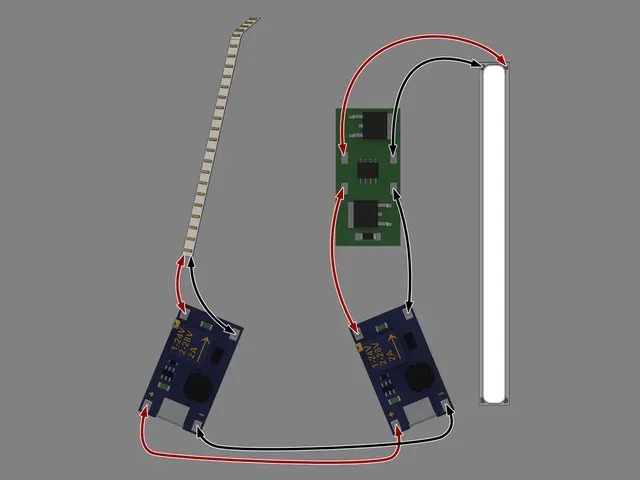

A modern desk lamp with an invisible touch switch/dimmer that senses your finger though the plastic. It has two boost converters with a micro USB connector that converts the 5v USB up to a higher voltage that you set. It has a 12v 6 Watt COB LED bar as the main light, and a 25cm long LED strip inside the arm. These two lights are run separately on each converter so the brightness can be set independently. The converters input are also bridged together, so it doesn't matter which side you connect the cable.

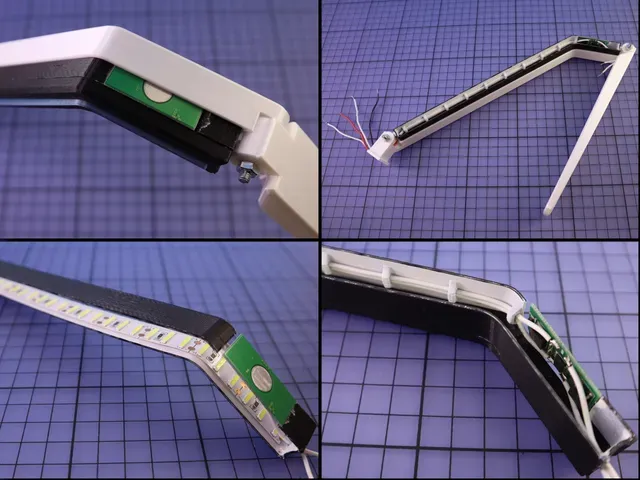

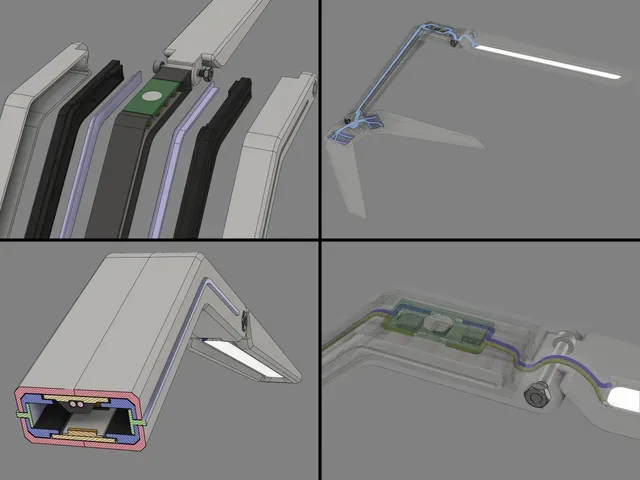

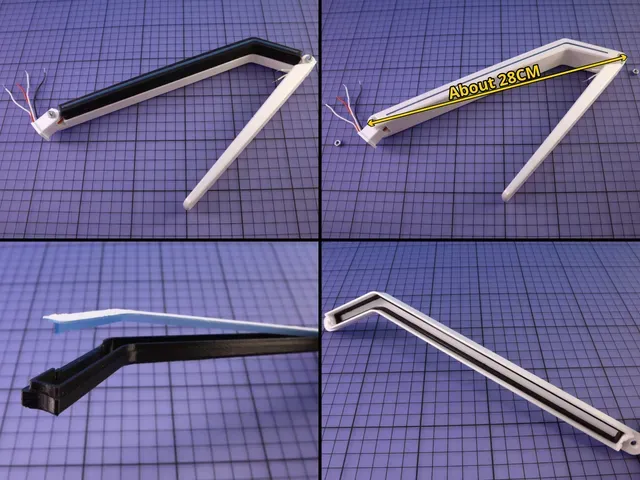

This lamp can be printed in any color without getting any light bleeding through the moveable arm. The arm is the most complex part. It's made with 7 parts that all nest into each other. It has a 3 part isolator that is printed in black, which is what keeps the light inside. The light is only allowed to exit through the two light guides that goes through all the parts and emits light along the arm. This is just a detail light, although it does make the lamp easy to find in complete darkness.

Both of my lamps where printed in PLA. The temperatures are quite low, but you do need to be careful with the COB, as these can easily overheat when run at the rated spec. I run it at around 11 volts so it does not overheat. The LED strip in the arm is run at around 8 volts, so it doesn't produce much heat either.

- This requires a high precision printer and precise assembly of the arm.

- Not printable on the mini, as the arm is too long.

- To power the lamp, you probably have an old phone "charger" that can be used. You will need a 5v with at least 1amp of current. Can also be powered with powerbanks.

Changelog:

The lamp has changed somewhat after I made mine:

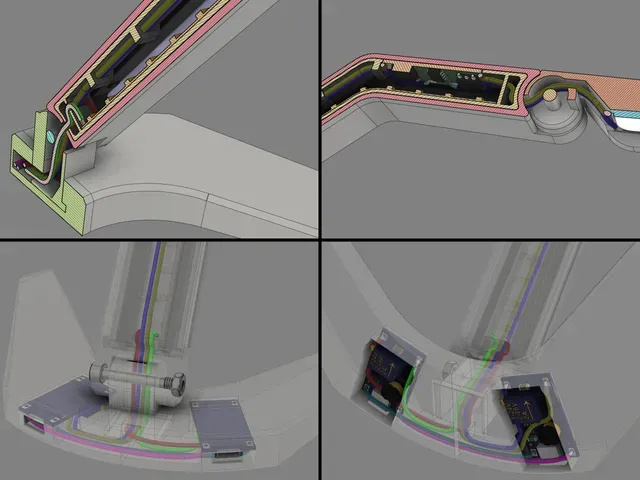

- Added double walls to the center isolator where the wires enter and exit in the arm. This is to block more light. The chamber can be filled with something like black silicone to stop all light from leaking through.

- Replaced the small chamfers on the base with tapered ones. I think it looks better. Picture 5 is the most current model.

- Added small connection points to the outer case and isolators. This divides the light guides into 3 zones instead of a continuous line. This was done to make these parts less floppy, and easier to glue.

- Added a simple version of the arm that does not have any lights, or switch. This is just 1 part, instead of 7 for the lit one.

v1.1

- Added a new top for a different COB LED bar. This is a 12x250mm long led. It makes the top about 8cm longer, so it will have even more reach over a desk.

Search eBay for: "250x12 cob led" to find this one.

Added a photo of this.

v1.2

- Added two new tops for 10mm wide led strips. One for 15cm, and one for 20cm strips. These are more suited for regular led strips, since they are usually cut every 5cm.

- Added v1.2 comparison photo. The top for the default 17cm cob is not shown.

- You might want to print the legs solid if you use the longer tops, as the lamp will be fairly front heavy with them. A solid base will be a little more stable. Or it could be fixed down with double sided tape.

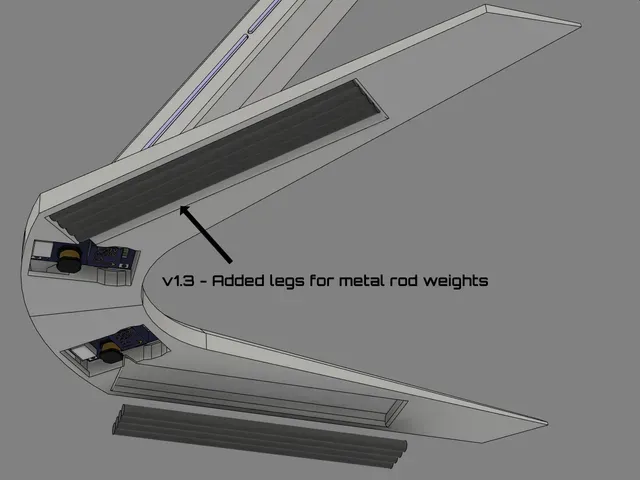

v1.3

- Added a different set of legs. These are supposed to be used with metal rods, like tungsten, which is very heavy. Using solid tungsten rods will increase the weight of the base about 5 times, making it more stable, especially with the longer tops. You can use other metals as well, like steel and copper, but they are less than half the weight of tungsten. Tungsten is about twice as heavy as lead (lead is cheap but toxic, so I would rather not recommend that).

You will need 8 4x100mm rods to get the maximum weight. Each rod is about 20 grams (which is the same weight of a single PLA leg). I got 10 rods for about 25 dollars on eBay.

Another benefit is that the legs will be stiffer.

I have just ordered the tungsten rods so it will take quite awhile before I can test these, but it should work just fine. I will update this when I get them. I ordered mine from a eBay store called klot-tool (link)

v1.4

- Minor change to the base. The tungsten weights I got was slightly longer than advertised so I made the hole for the weights 102mm. The weight of a solid printed base with 8 tungsten rods is 5.5 times heavier than just a non solid base with no weights. Note that the heavy base is not absolutely necessary. It just makes the lamp more stable with the longer tops, and it just feels better to use.

- Also added a slot for the wires so they can be pulled out or into the legs. Makes it a little easier to work on the converters.

Print instructions

The Parts

- All parts has to be printed with 0.2 layer height. 0.3 can cause issues. No supports are needed for anything. All parts in the arm is glued together. All parts of the isolator (including the electronics) can be assembled and glued separately before it's glued inside the two outer case parts.

Top:

The top has a pivot that is slightly oversized. This is because the joint has to be very accurate. It will need some quick sanding to get the optimal fit, so it doesn't put too much pressure on the arm when the screw is tightened. If the joint gap is too large, the pressure can blow the glue joint on the arm open

This part will deform if your cob gets too hot. Might be wise to print this part in petg if you have it in the same color as pla.

It will be beneficial to add a modifier box around the joint in prusaslicer, so this area is printed solid.

Top is printed upside down.

Outer Case:
