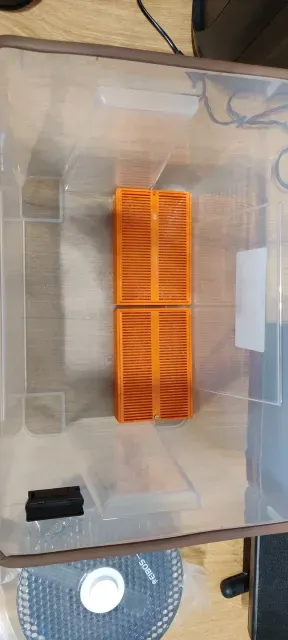

Silica Gel Box with Sliding Lid (IKEA Samla 22L friendly)

About

Remix of the silica gel box:

- Adjusted for better fit in IKEA Samla 22L box - Samla 22L has a bottom size of 300mm x 216mm (measuring the largest usable rectangular surface) - This box's dimensions are 146.4mm x 100mm - This means you can put 4 of these inside with less spacing between them than the original one - Minor optimizations (for more usable volume & fillament savings with minimal impact on sturdiness) - Bottom height reduced by 1mm (from 3mm to 2mm) - Lid height reduced by 1mm - Height of the box's inside raised from 12mm to 21.40mm (total height of 27.4mm) Should fit almost 200 grams of white silica gel.

Print settings

Printer:

Prusa MINI+

Supports:

No

Resolution:

0.2 mm

Infill:

20% (Rectilinear)

Filament: PETG (Prusament Prusa Orange & Fiberlogy Orange)

More details

Go to the original model's page for mode details (eg. threaded vs inserts): https://www.printables.com/model/81318-silica-gel-box-with-sliding-lid-for-100-g-gel

I've prepared both threaded & insert versions with my modifications, however I myself did NOT print the threaded version, only the insert one, so in case of any problems, please contact me about this and I'll try to fix it.
