Modular Stackable Tee Organizer with Tee Display

The Idea:

- fits a whole pack of 20 tea bags (small boxes fit 10 each) - modular and stackable - easy to print with minimal material and supports - tee display on the outside - finger hook for easy access Design Process:

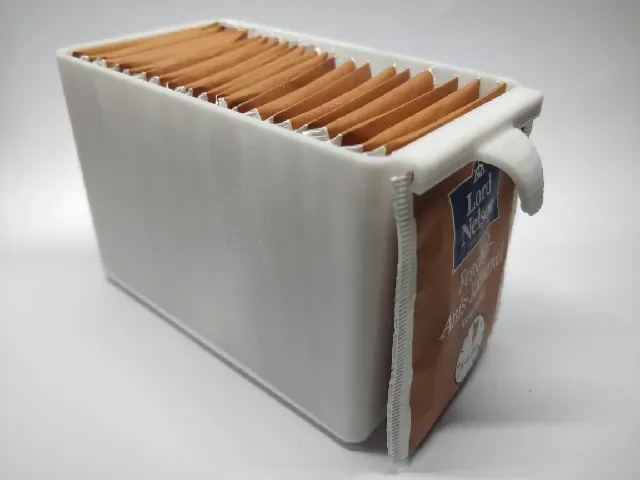

- the notch allows a bag of tee to be slid in and be held in front of the tee box to display it's content - the hook is useful to grab the box from a shelf and is printable without support

- the bottom of the box has a bridge in the middle to make the bottom print cleaner by halving the bridging distance - if it droops a lot, you can remove it afterward and get an even cleaner result - you might need to change Bridging angle to 90°, so the bridging connects the shorter sides after doing the long beam in the middle

- the bottom ridge is for interconnect the boxes while stacking - the ridge is split in two, so the big box can be put on two small boxes

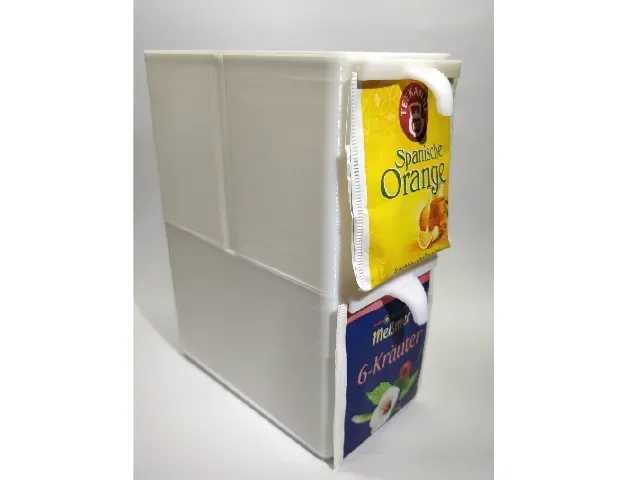

- so two small boxes (one without finger hook and display) can be stacked on a big box or the other way around - same for the lid, that keeps your tee from running away

Overall dimensions:

Big Box:

weight height width depth

53 g 80 mm 65 mm 130 mm

Small Box:

weight height width depth

34 g 80 mm 65 mm 73 mm

Small Box Back:

weight height width depth

31 g 80 mm 65 mm 56 mm

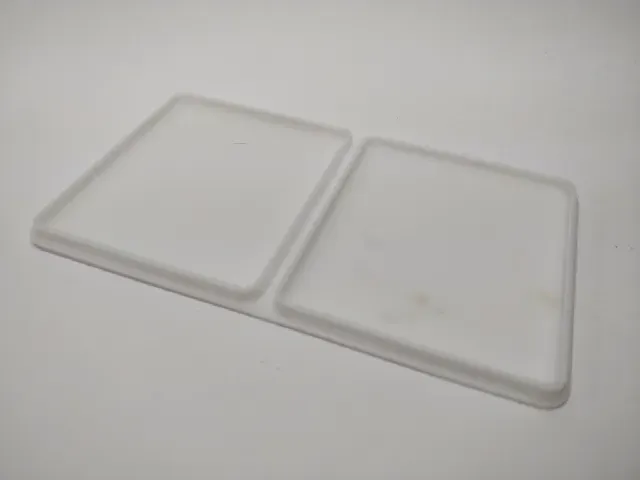

Box Lid:

weight height width depth

12 g 4 mm 65 mm 112 mm

Print recommendations:

- PLA - 0.4 Nozzle 0.24 mm layer height - 100% Infill - no supports (the hook works without, but might look better with some painted on supports) - (gcode overview in the header represents one Big Box) Orientations:

- it might seem non-intuitive, but the print direction is with the bottom of the boxes facing up - this way the hook and display notch don't need support and the interlocking feature on the bottom can be added Post Processing:

- depending on how good your bridging is you may want to remove some loose strands of the sacrificial middle bridge, everything else should be clean as is Related Models:
