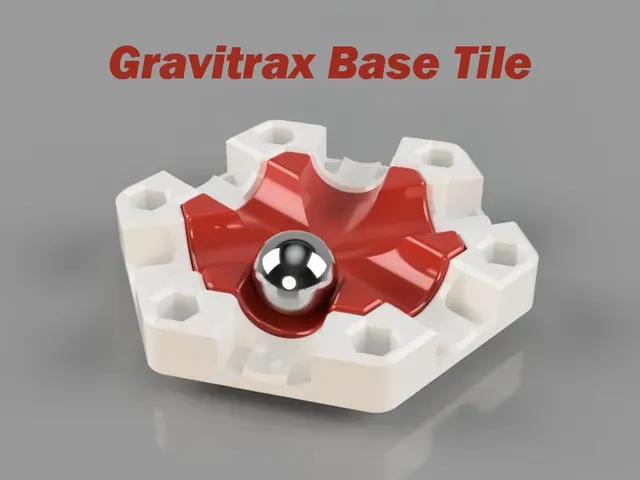

Gravitrax base tile

This is my version of the Gravitrax compatible baseplate with 6 exits and interchangeable insets as well as corner holes for height blocks - all for the construction of flexible tracks.

To be able to use this building block, you need to complete it with one of the insets that you can download from Gravitrax insets .

In order to build high tracks with this building block, you can complement it with one of the following building blocks, which you can download from Gravitrax pillars or Gravitrax tunnel spacer .

Assembly

You must press the foot with the tabs into the bottom of the base. I made a snap-on connection between the foot and the base to ensure a firm connection. There is a small groove in the foot that fits into the base as you can see in the pictures. It's a little tricky to press the foot into the base, but once it's in place, it's fixed.

Printing and print settings

In the model files, the parts are orientated in the direction best suited for printing. Use PLA for printing with a layer height of 0.2mm and a nozzle width of 0.4mm or less. A wall thickness of at least 3 lines and an infill of 25%. No support structure is needed.

More of my models

Click here if you are interested in seeing more of my models for Gravitrax

Feedback is always a good thing. To encourage me or other designers to make more models, hit like and/or post your makes. If something doesn't work or is missing and can be improved, please leave a comment.
