MK3S PrusaLink RPi Camera holder

Camera holder for RPi camera to be used with Prusalink.

Compatible with: - Prusa MK3/MK3S/MK3S+ printer - Raspberry Pi Zero W / 2 - 15cm RPi Zero CSI camera cable (Zero has a narrower connector than the larger RPis) - Raspberry Pi camera module 1.3 / 2 / 3 / Wide / NoIR - software PrusaLink 0.7 RC3 and up

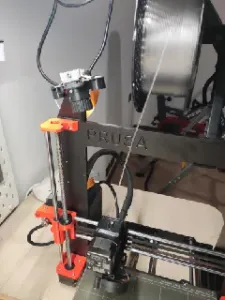

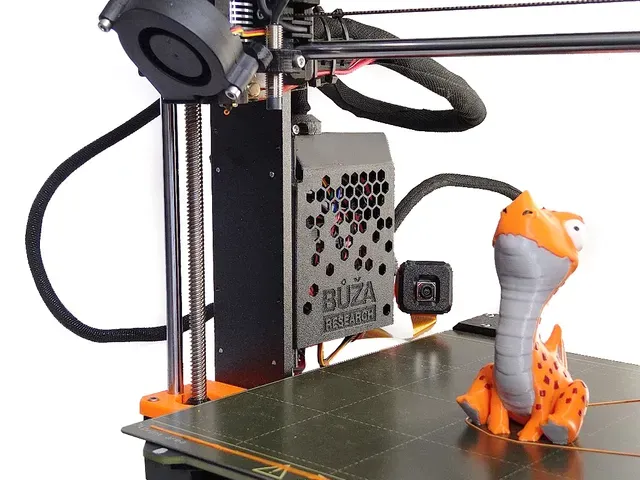

There are two versions of the cover. One for the top-mounted camera - above the Einsy box, one behind the Einsy box. See pictures and try what suits your use.

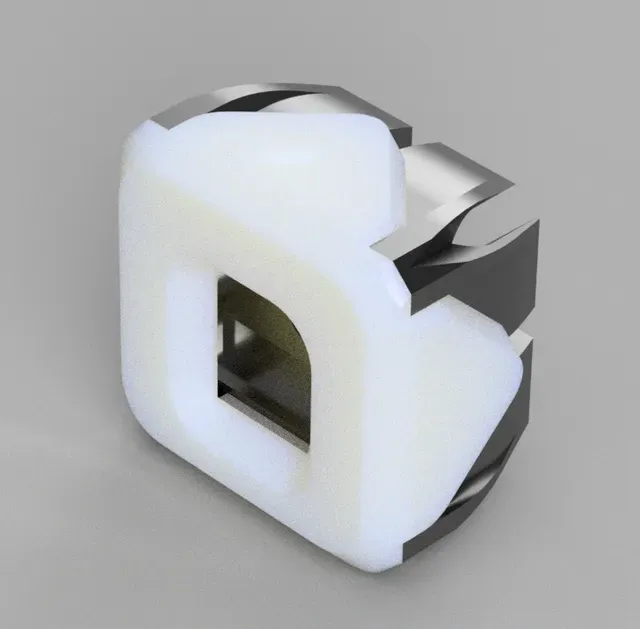

The camera base and cover were inspired by Sneaks articulating camera holder - but smaller in size. 16mm ball-mount plumbus is still compatible with the Sneaks' camera cover.

Before installing, also print the RPi Zero 2 Frame and Pliers . The pliers are essential for inserting or removing the RPi Zero or the microSD card.

To mount the camera independently, use RPi Camera Holder Plumbus .

How to install:

- Connect the camera and the RPi Zero using the dedicated CSI cable. - Attach the camera into the rpicam_base and cover it with the rpicam_cover part. - Install PrusaLink according to this guide - Cover the RPi Zero with the selected cover. Attach the cover using one or two M2x8 bolts (bundled to MK3S+ in the SPARE bag). - Replace the Einsy-door with the chamfered version so that the camera image isn't obstructed by it. - in Prusalink, visit Cameras tab. Set up the camera and link to your Prusa Connect. - Enjoy the camera.
