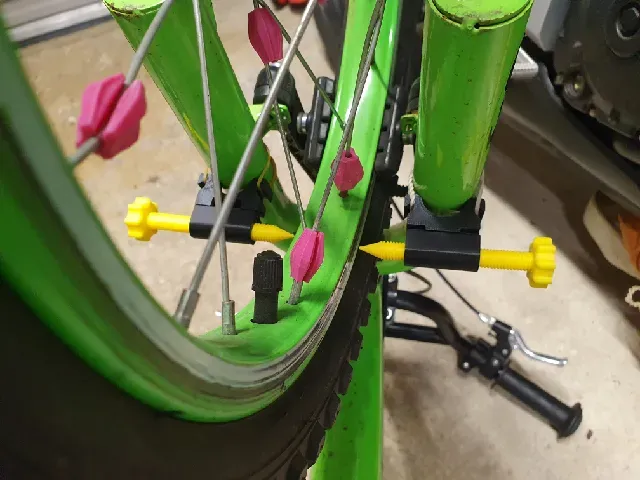

Bike wheel truing tool with dovetail (no glue required).

Remix of https://www.printables.com/model/42109-bike-wheel-truing-tool

Redesigned wheel truing tool for bike with w dovetail between two main parts to eliminate a need for gluing parts together.

Can be used to trim the front or rear wheel.

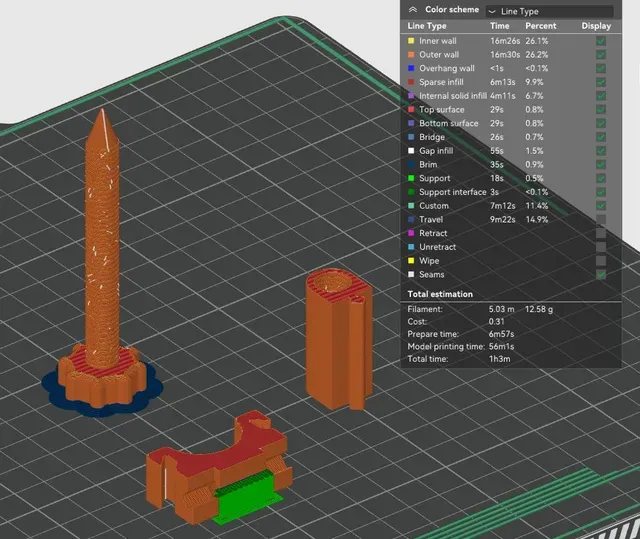

Print instructions

Printed with Bambulab ABS, 0.16mm layer, 3 perimeters and 15% infill works great.

Print the threaded parts vertically for better quality and the attachment horizontally (with a very little of support in the mid section of a dovetail groove) to increase the strength.

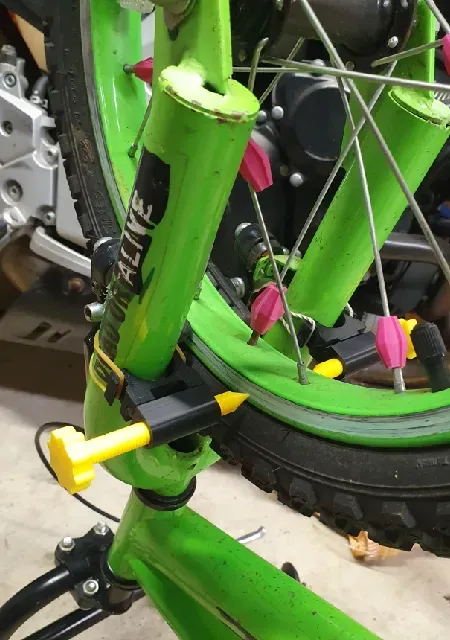

No glue or other tool required, just press fitt threaded part's dovetail into attachment. Attach to bike frame using the rubber band made of inner tube.
