BMG-M and Mosquito Hotend RHD Mount

This mount works for PrinterMods MDD, BMG-M and Mosquito Hotend, with a RHD Fan Duct by RH_Dreambox. The duct is the "RHD Fan duct for MK3 Bondtech BMG Mosquito" https://www.thingiverse.com/thing:4217188

Print instructions

I designed this for the PrinterMods MDD V1.3 Direct Drive Kit, with a Bondtech BMG-M and Mosquito Hotend. You will need a 5015 fan, two brass threaded inserts (heatset), superglue, and various m3 bolts and nuts.

Print two of the MDD_BMG_Mosquito_Fan_Mount. One is used to mount the fan duct the other is used for cable management.

Print one MDD_BMG_Mosquito_Baseplate.

Print one RHD Fan duct for MK3 Bondtech BMG Mosquito.

Insert the heatsets into the left and right holes on the baseplate. These will be used to attach the two MDD_BMG_Mosquito_Fan_Mount. Attach the BMG-M/Mosquito to the baseplate. Then attach the baseplate to the PrinterMods MDD. Finally Attach the MDD to your printer.

Glue the 5015 fan to the fan duct. Screw the fan duct to the MDD_BMG_Mosquito_Fan_Mount with an m3 bolt and nut. The fan mount goes on the side closer to the front of the printer. Loosely attach the mount/fan/duct to the baseplate with an m3 bolt. Adjust the height of the duct to about 2mm off the print surface. Tighten the mount to the baseplate.

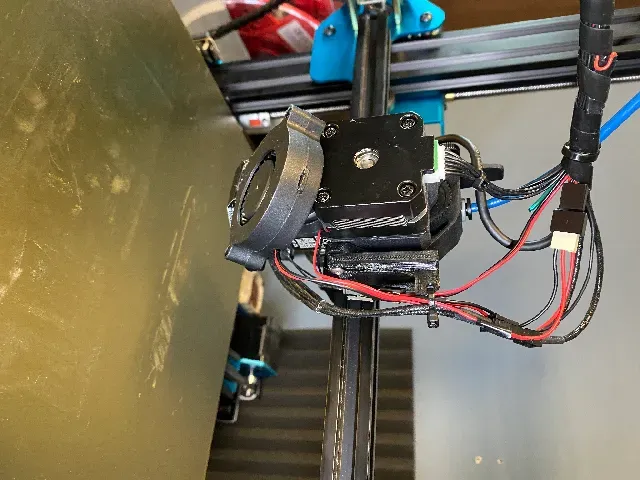

The second MDD_BMG_Mosquito_Fan_Mount goes on the right side of the baseplate and can be used for strain relief/cable management.

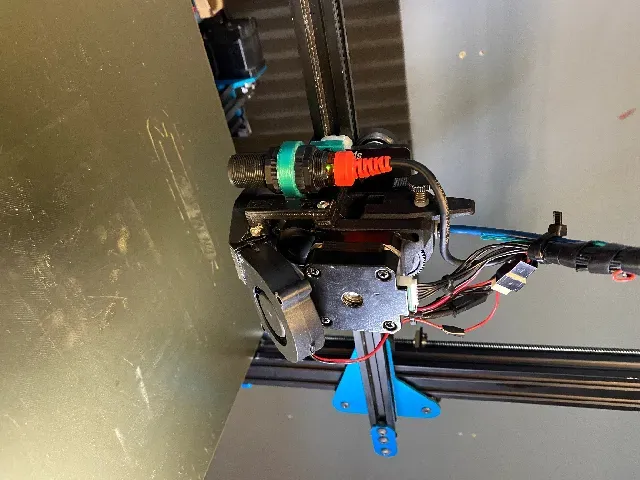

There is plenty of room for an ABL mounted on the left side. I am using an EZABL.

Use PETG/ABS and .2mm layer heights, infill 40%+, 4 walls, 5 bottom/top layers, no supports. I used carbon fiber PETG.
