Bondhus T-Handle Hex Key Metric IKEA Skadis Holder

Introduction

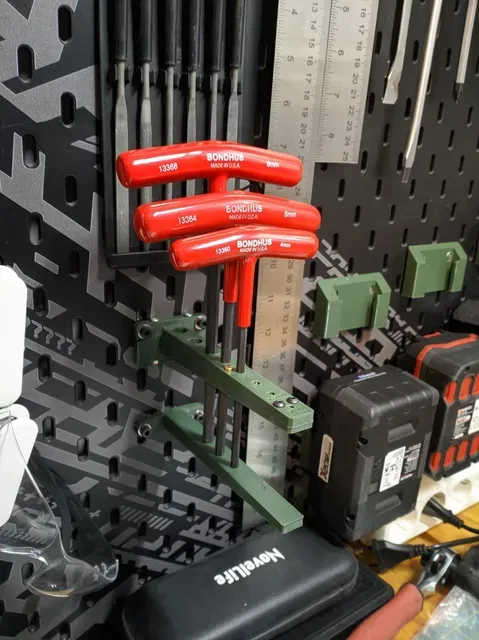

The original holder for Bondhus Metric hex keys wasn't available where I live, and I got tired of the tools always getting lost in the shop, so I designed a holder that can be attached to a Skadis system. It is designed to be as effortless as possible to use.

It's made into 3 separate parts to not require supports, to use less filament, and for more structural rigidity. The 2 top parts are attached to eachother via M3 screws, with the lower part being attached at a different point.

Required parts

For attaching the two upper halves

- 6 pcs M3 hex nuts - 2 pcs M3x11 screws - 2 pcs M3x7 screws - 2 pcs M3x30 screws For installing onto a Skadis system

- 4 pcs M4x15 screws - 4 pcs M4 flange nuts, or regular hex nuts with washers

Print Settings

Printer Brand: Creality

Printer: Ender 5

Rafts: No

Supports: No

Resolution: 0.12

Infill: 95+%

Filament: Herz PLA NATO Green

Notes: Need to rotate the parts on the print bed to have the flat sides downward
