Ultimate64 SidTap Audio Jack adapter for RF port

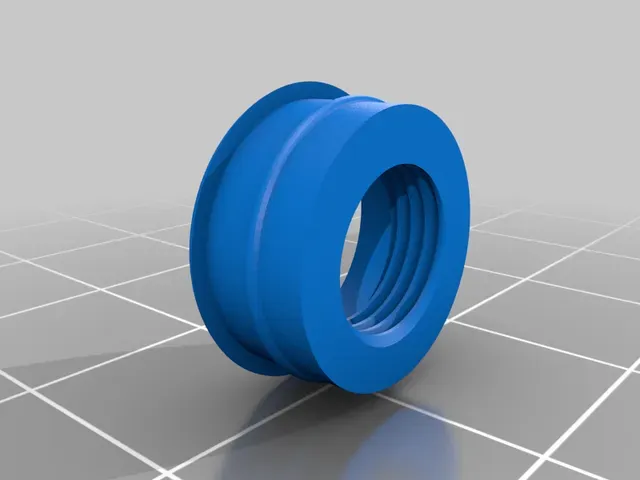

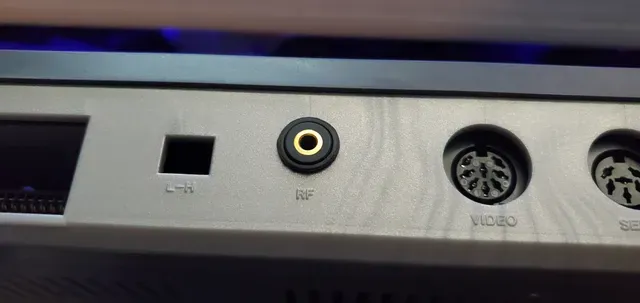

A snap in adapter with m8x.75 threads for a 3.5mm panel mount audio jack to tie into the SidTap header of the Ultimate64 motherboard. 3.5mm jacks can be found on ebay or aliexpress. Thread the jack into the adapter and push the entire assembly into the RF hole of the 64c or pixelwizard case. There is a small ridge on the outside barrel of the adapter for a snap in fit that can later be removed if needed. I have not tried a breadbin case for this adapter.

Update: I included a modified version for U64 Elites and other taller Sids. This pushes the jack out of the case another 3mm. I have not tested it, so any input on the modification would be helpful.

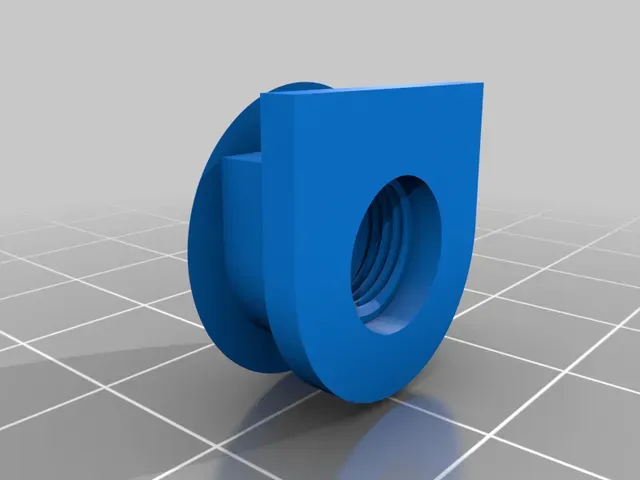

Update: number 2. Added a breadbin jack for Regular Ultimate board.

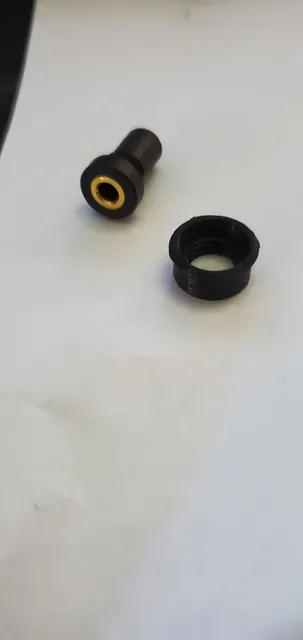

Links for the audio jack will not always work as sellers change product. I just search for 3.5mm audio jack on Aliexpress. You are looking for the black plastic ones with threads around the body of the jack as shown in my photo.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

.15

Infill: .15

Filament: overture PETG black

Notes:

Lay flat on on inside face and use supports from build surface

There is a great remix done up for the breadbin version using the type of jack that treads from internal instead of external. https://www.thingiverse.com/thing:5474552?fbclid=IwAR1OMJ_d3nny199lo3jxYKsRplMIYrnQiXMfzJT5DOHCKZ-p6ZfOULNFhj4

Post-Printing

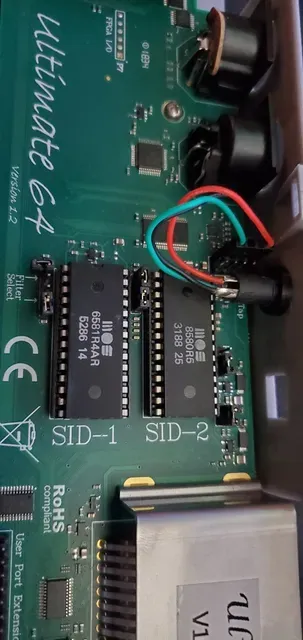

Left pins of sid tap are Sid2 out, ground, ground, sid1 out. Only need to use one ground, does not matter which one
