Rigid EBB36 v1.2 mount on Voron CW2 / Stealthburner - Tested on VT

Площадка: Printables
Цена: Бесплатно
Лицензия: уточняйте на площадке; Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы: STL

65 Лайки
598 Загрузки
2 Напечатали
7 Комментарии
4 090 Просмотры

Автор:YuriO

Опубликована 20.03.2023

Скачать на

Printables

Описание

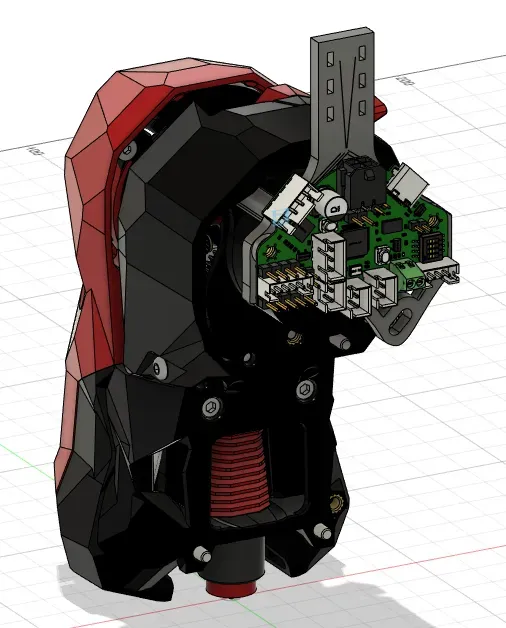

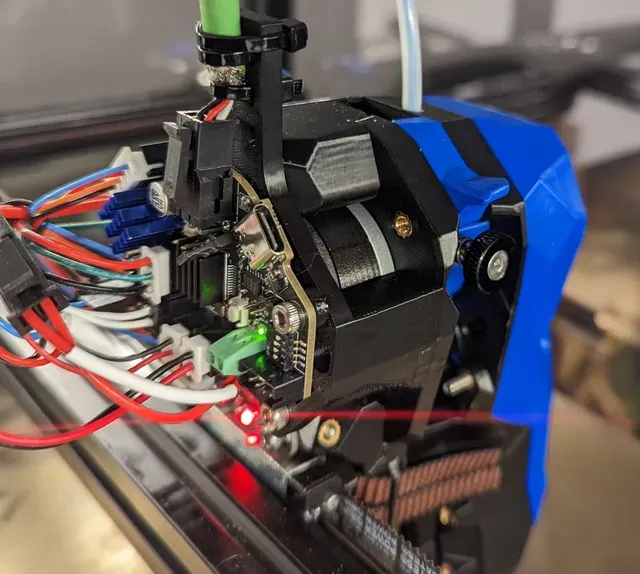

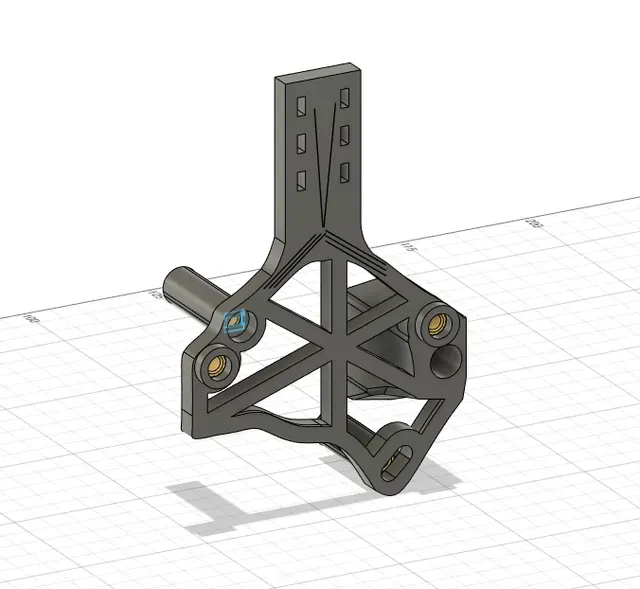

This is a rigid mount for the BTT EBB3.6 v1.2 toolhead board on the ClockWork2 / Stealthburner. The plate is supported on three points and a lot more rigid than other solutions. It was only tested on a Voron Trident. No tests currently on the V2.4.

BOM:

- 7x M3x5x4 standard Voron heat set inserts - 5x M3x8 screws - 1x M3x20 screw - 3x zip ties Please print the STLs with standard Voron settings without support. Orient for printing the bodies so that they are flat side is on the build plate. STLs to print and quantities:

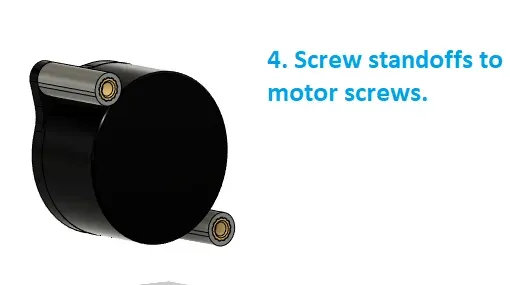

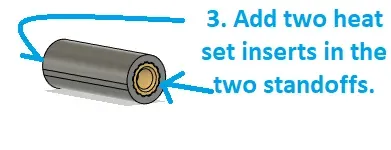

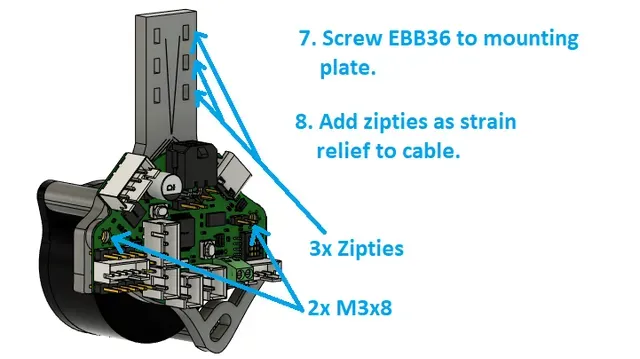

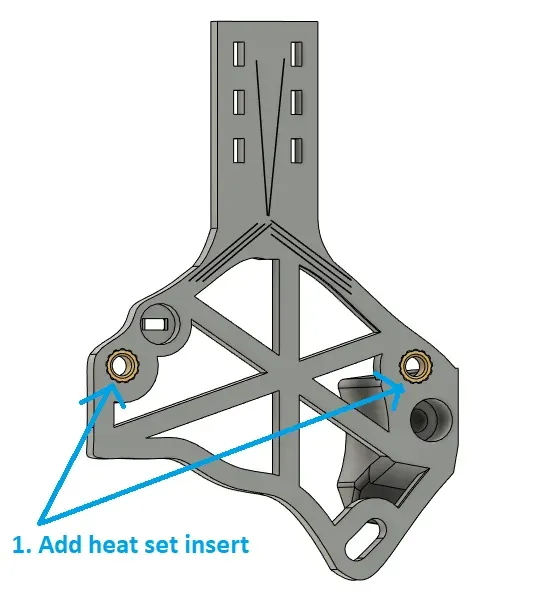

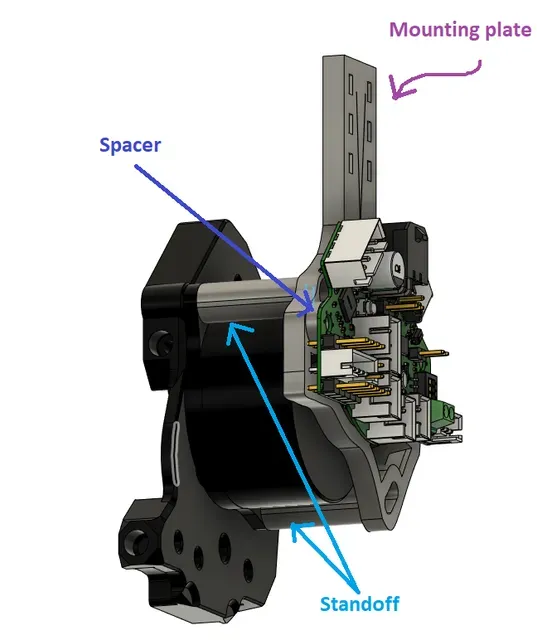

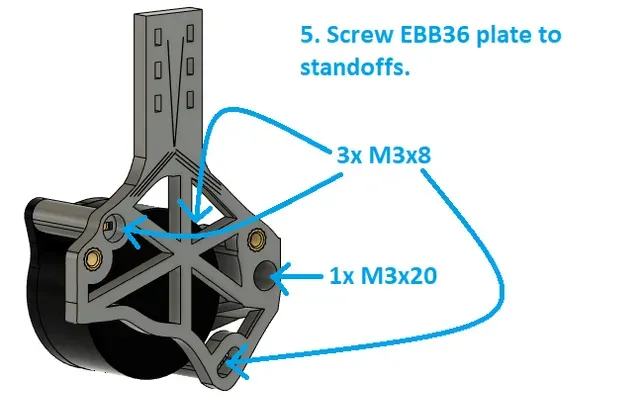

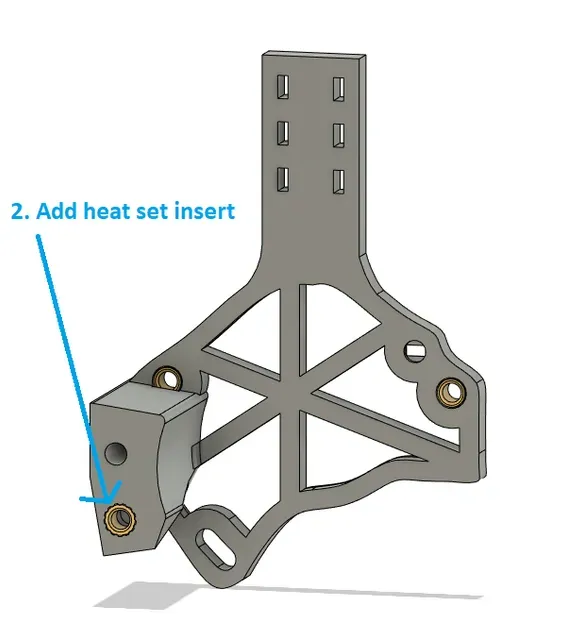

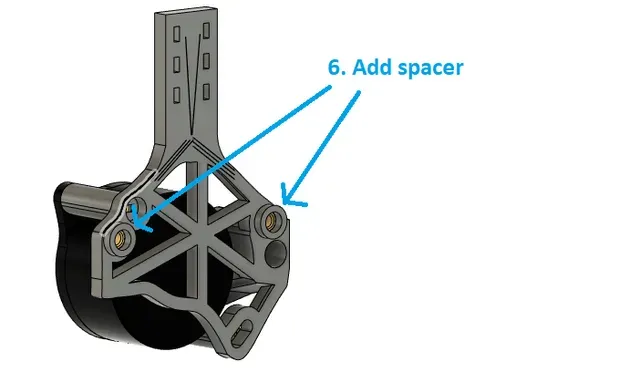

- 1x Mounting plate - 2x Standoff - 2x Spacer How to build: See screenshots

Have fun and leave a make/like if it is useful :-)
