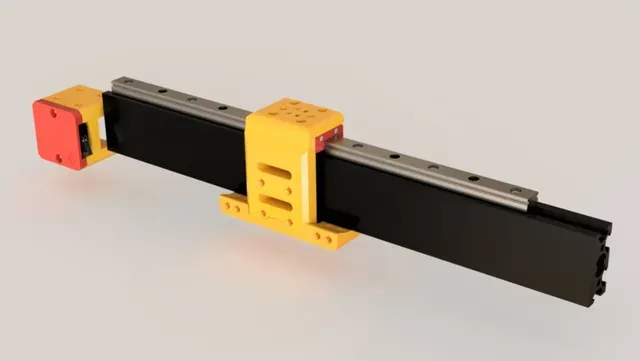

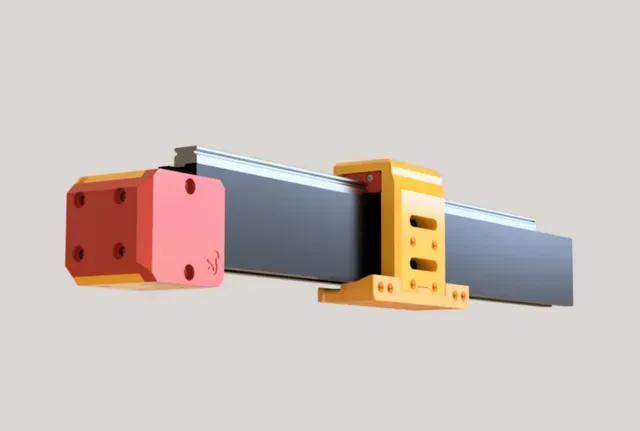

Fokoos Odin5 F3 - X linear rail base

This is a starting point to install linear rails on the Fokoos Odin5 F3

Compatible with Apollo Shroud and Apollo Mini - to use different aftermarket hotend and aftermarket direct drive extruder (or bowden setup)

Uses heat inserts M3x4(L)x5(OD) or M3x4(L)x4.5(OD) Uses a basic endstop (stock endstop and motor might still work, I just don't remember how it was setup)

Front mount matches a front mounted rail, holes are spaced 20mm in a square pattern.
