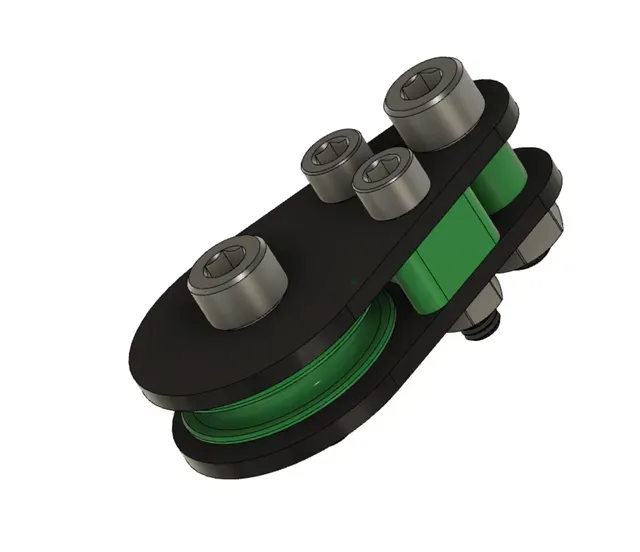

rope pulley

simple pulley for use with 550 paracord or similar diameter rope.

tested up to 80kg, handled this with ease.

in the description there are two setups described. theoretically you can add as many Pulley wheels you want.

recommend to print with at least 4 perimeters and a layer height of 0.2mm.

there are two version. - light. - heavy.

printable washer are included, it is recommended you use metal washers.

light pulley: hardware needed: 2x m6 bolt. 2x m6 nut. 2x m4 bolt. 2x m4 nut. 608 bearings. one for every pulley wheel you want.

when making a singe pulley you will need a 25mm bolts. if you're making a double pulley you will need a minimal 30mm bold.

for the light version there's a bearing bushing to make a m6 bolt properly fit the 608 bearing.

hardware option(recommended): single pulley: 2x m6 washer.

double pulley: 4x m6 washer.

3d print files: single pulley: 2x light side. 1x pulley wheel. 1x light ropeguide. 1x light sleeve. 1x light m6 bearing bushing. 2x light m6 washer (if not supplied as hardware)

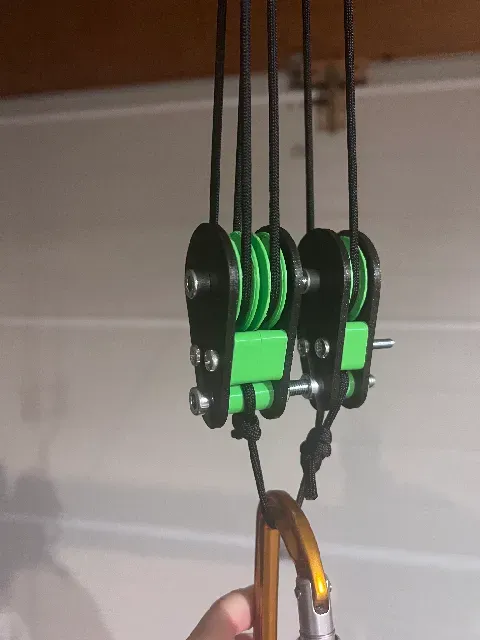

double pulley: 2x light side. 2x pulley wheel. 2x light ropeguide. 2x light sleeve. 2x light m6 bearing bushing. 4x light m6 washer (if not supplied as hardware)

heavy pulley: hardware needed: 2x m8 bolt. 2x m8 nut. 2x m8 bolt. 2x m8 nut. 608 bearings. one for every pulley wheel you want.

when making a singe pulley you will need a 25mm bolts. if you're making a double pulley you will need a minimal 30mm bold.

hardware option(recommended): single pulley: 2x m8 washer. 1x 608 bearing.

double pulley: 4x m8 washer. 2x 608 bearing.

3d print files: single pulley: 2x heavy side. 1x pulley wheel. 1x heavy ropeguide. 1x heavy sleeve. 2x heavy m8 washer (if not supplied as hardware)

double pulley: 2x heavy side. 2x pulley wheel. 2x heavy ropeguide. 2x heavy sleeve. 4x heavy m8 washer (if not supplied as hardware)
