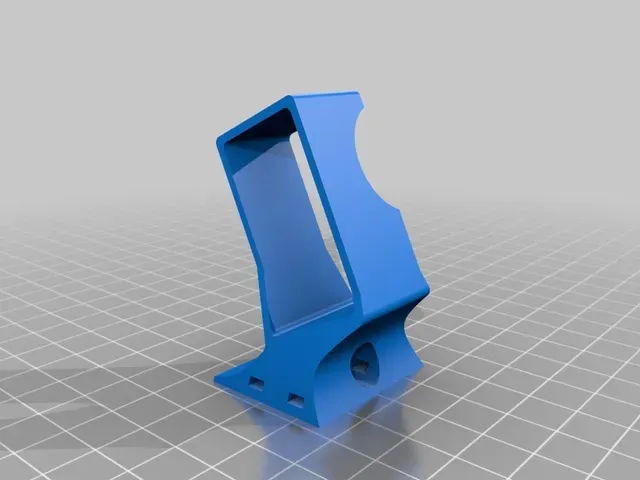

V1 + V2 + V3 Diatone Tyrant 630 / 540 Gopro 3 holder (25 deg)

UPDATED VERSION 2/3

Mount for Diatone Tyrant 630 ,540, and 530 with an angle of 25 deg.

V1 its too bouncy/flexible!! / dont waste time and filament

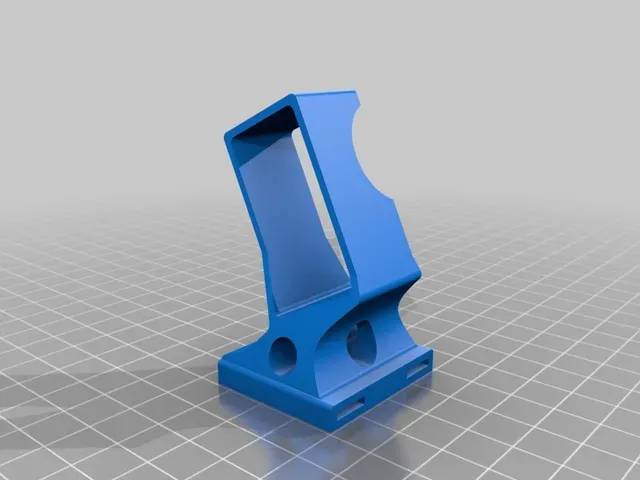

V2 is much better. More Gopro contact surface and more stable with almost same weight.

V3 is same design as V2 but mounted with zipties (max 2x4mm)

Gopro is clear and "out of danger" with 5 and 6 inch props.

mass: ~20g with support

~16g without support

Print in TPU / Ninjaflex with 30% and 2 perimeter.

Print with support

print all fans allways on. cant get too much air

FFF profile is in the download section

my tpu print settings on CTC Bizer MK10

----General settings----

retraction distance : 1.5mm (UPDATED!)

retraction speed : 25mm/s (UPDATED!)

nozzlediameter : 0.4mm

layer height :0,15mm

Solid top/bottom layer : 5 (UPDATED!)

perimeter : 2

infill pattern : FULL HONEYCOMP (UPDATED!)

external fill pattern: rectilinear

overlap: 11 %

minimum infill length : 0.1mm

----Support----

suport infill : 17%

extra inflation distance :1.6mm

dense support layer :3

dense infill percentage :65%

horizontal offset :0.2mm

----Temp----

Table : ABS Juice (thin film DOOOONT touch it!!!)

Extruder Temp: 230 deg

Table temp: 0 (not powerd/ room temp / 25 deg)

---- FANs----

all full power always.

yes also the first layer :-)

----Speeds----

general speed : 37mm/s (UPDATED!)

outline :60%
