Prusa i3 Horizontal LCD Mounting Bracket Version 2

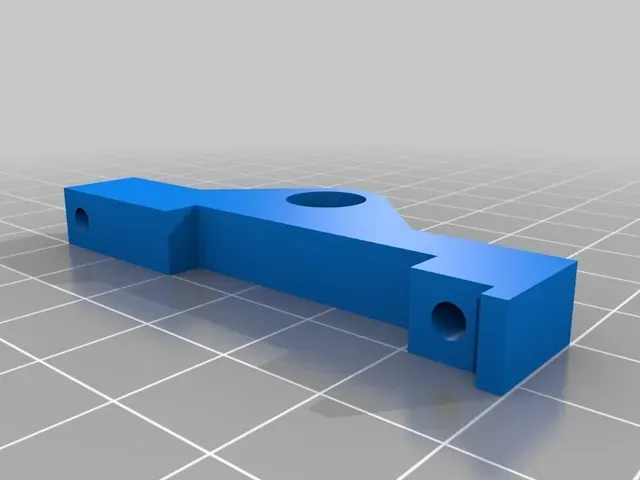

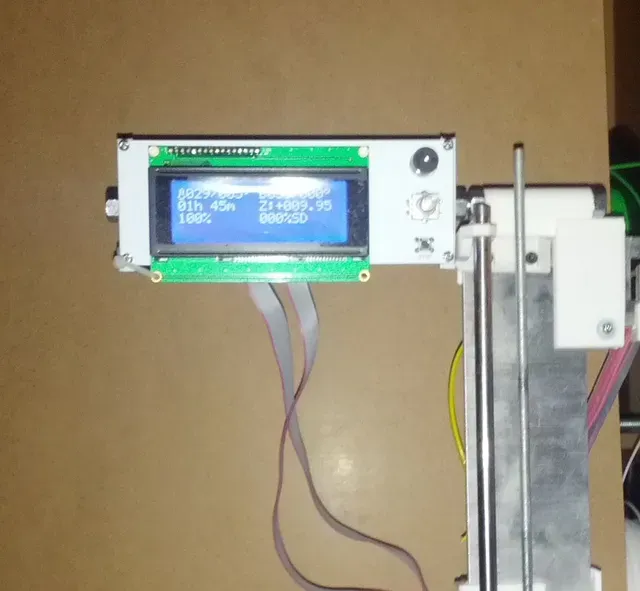

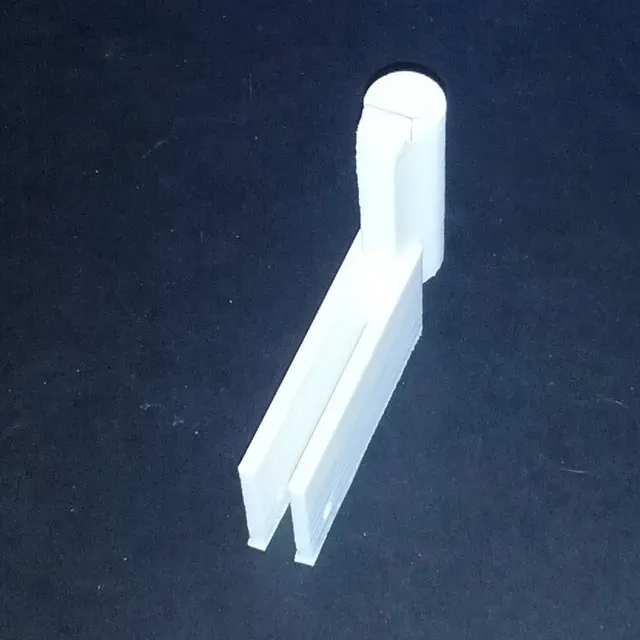

This is a variant of the Prusa i3 Horizontal LCD holder ( https://www.prusaprinters.org/prints/43091-prusa-i3-horizontal-lcd-mounting-bracket ) which is installed on the very top of the printer. The LCD display (from RepRap Discount) is installed horizontally, leaving free the top of the printer. It can be installed either on the left or the right. One of the LCD holders has a slot for the SD-card.

You will need:

- 1 x 24 cm (9"1/2) 8 mm or 5/16" threaded rod - 6 x 8 mm or 5/16" nuts - 5 x M3 (4-40) x 2 cm (3/4") bolts - 5 x M3 (4-40) nuts - 2 x M3 or (4-40) washers - The plastic parts a zip tie (optional) Mount it as shown on the pictures. A zip tie is installed to prevent the LCD from vibrating. You do not need to drill holes in the frame to install this holder.

It might be Sgraber's frame compatible. If you have issues, please, contact me.

Use support material to print it.
