DIY ballistic chronograph / FPS Reader

This is a printable case for an Arduino Uno based ballistic chronograph / fps reader meant for Dartblasters like Nerf.

Its based on the really great arduino code from paperskeletons3d. He is the great mastermind behind this DIY Chrono! I just made a fancy housing :-)

https://github.com/PaperSkeletons3D/PS3D-Chronograph

Files include:

- main housing - cover - small distance rings (eventually needed for the sensors to screw on) - small frame (meant to hold the display in place)

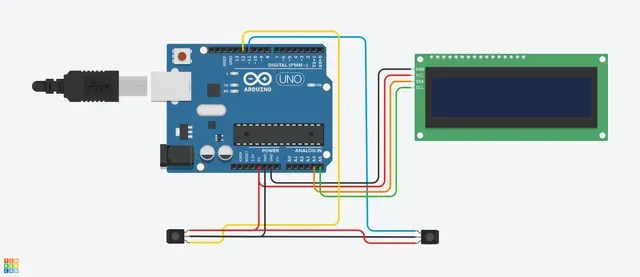

you will need following hardware:

- 1x Arduino UNO (or Clone) - 1x I2C Display 0,91 (128 x 32) - 2x TCRT 5000 Sensors - 4x Heat Inserts M3 (for cover screws) - 4x M3x10mm InnerHex Screw (cover screws) - 7x standard Nerf Screws (for arduino, sensor and display)

it can all be printed in PLA without any supports.

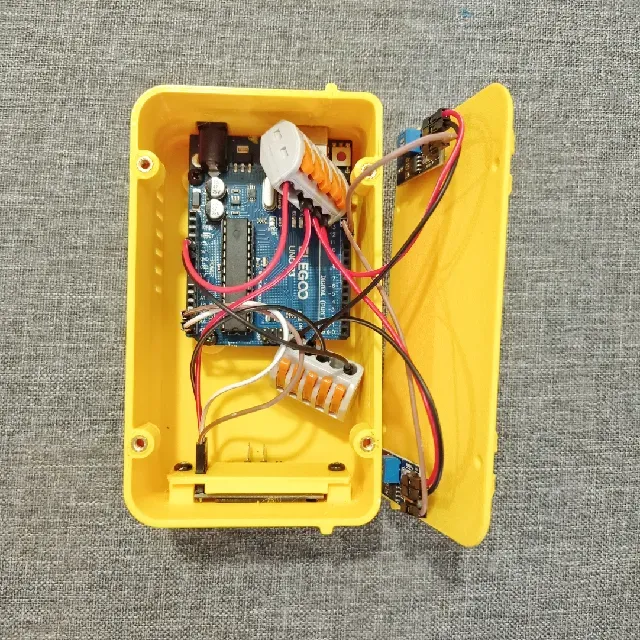

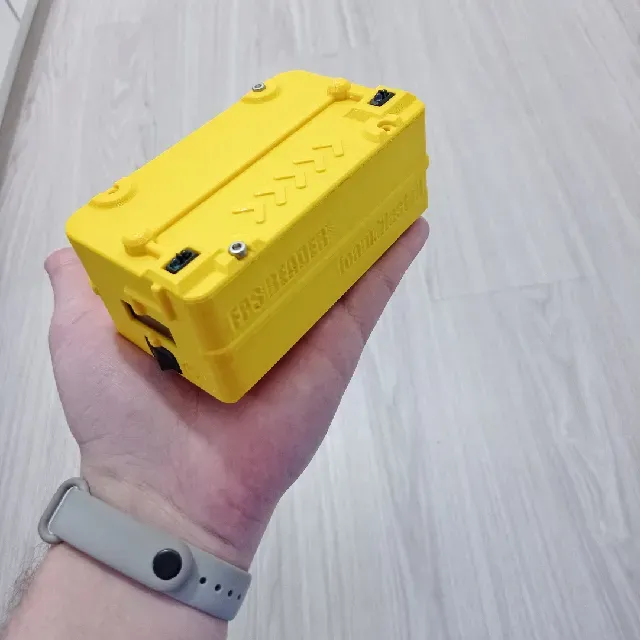

Pictures show a first prototype (additional off switch hasn't made it to the final version).

Let me know if you have any issues
