Ender 3 Raspberry PI 4B with 5" Touchscreen Case

This case is designed to fit an Raspberry 4B with a 5" Touchcreen to the left front edge of the original Ender 3 - not V2 or other variants !

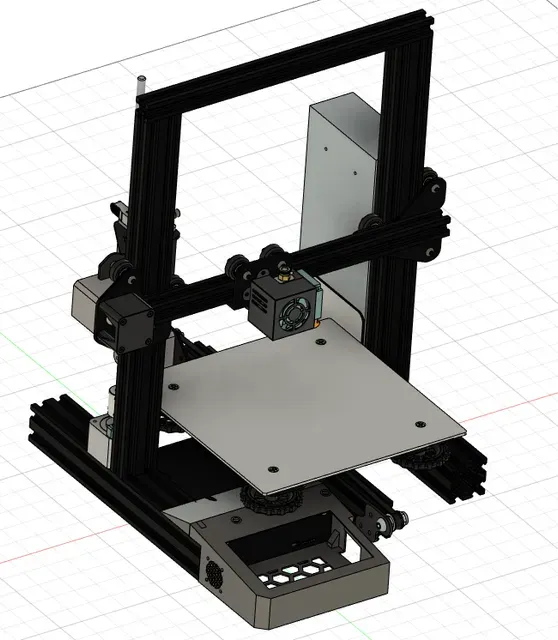

It will be screwed into the two original holes on top of the electronic case. Moreover there is a an additional plate with a fan shroud to have a aesthetic appearance.

Requirements :

Touchscreen has the following dimensions and includes the HDMI and USB connectors. My one was from a company called “Elecrow” .

The screws of Y-Axis should be assembled like below. The nut has to be on the upper side to have enough clearance.

You will need an USB type C cable with a 90 degree connection, otherwise it wont fit to the metal frame. Route the cable through the hole in the backside of case and shroud.

Needed materials :

- 2x M3x16mm screw → to fix the case to the Ender3 - 4010 5V fan (optional) - 4x M3x12mm screws (optional) - 4x M3 Nut (optional) - 4x M4x6mm screw → to fix the bottom plate - 4x M3x5mm screw → to fix the display to the case - 2x M3x8mm screw → to fix the fan shroud
