Creality Ender 3 BMG + E3D Volcano Mount

Extruder.

Extruder Bracket for Linear Rails.

Bobblejot Website

Bobblejot GitHub

Bobblejot Twitter

Bobblejot Patreon

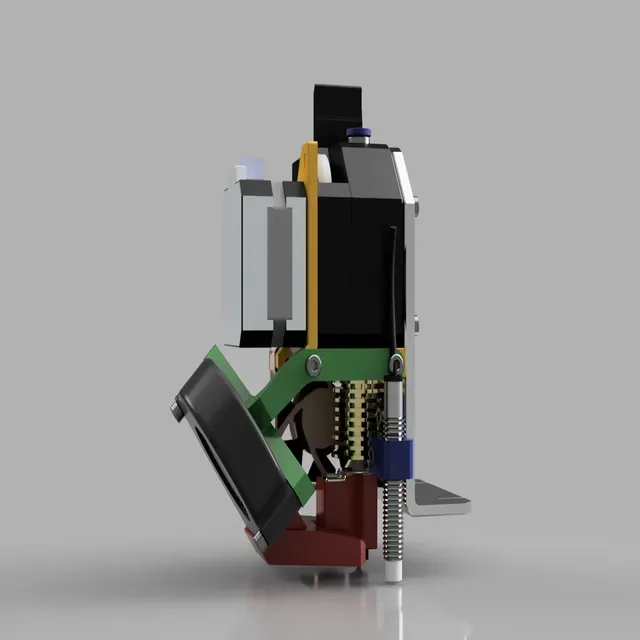

Just 5 easy to print parts that can be used to mount a Bondtech BMG or clone along with an E3D Volcano hotend to an MGN9H or MGN12H Linear rail.

I use this setup now on my Ender 3's but it could be used on other machines.

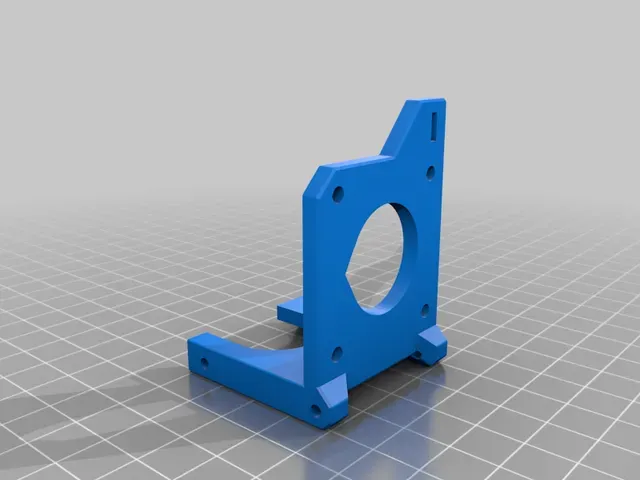

I have also provided a drawing with dimensions so that the actual main mount can be cut and drilled out of aluminium.

This is what i did and used 100x50mm Aluminium angle i purchased from ebay for a couple of pounds. It makes for a lot stiffer mount and is pretty straightforward to do with basic tools. You can see it in the pictures.

Materials:

BMG Extruder - Aliexpress

BMG + Volcano - Aliexpress

4 x M3x8mm Button Head Bolt

6 x M3x12mm Cap Head Bolts

3 x M3x20mm Cap Head Bolt

3 x M3x40mm Cap Head Bolt

1 x M3 Locknut

And That’s it.

Enjoy :-)

Print instructions

Print Settings

Printer Brand: Creality

Printer: Ender 3

Supports: Doesn't Matter

Resolution: 0.28

Infill: 30%

Notes:

Printed in Sunlu Filament Black PETG purchased from Amazon.

Print Temp : 240°C

Bed Temp : 80°C

Print Speed : 50mm/s

Top Layers : 4

Bottom Layers : 4

Perimeters : 2

Printed on Buildtak.
