Gridfinity expandable strorage boxes

If there is a need for bigger Gridfinity bins, here are the expandable bins you can print in almost any size, the minimum width is 1 and maximum is 4.

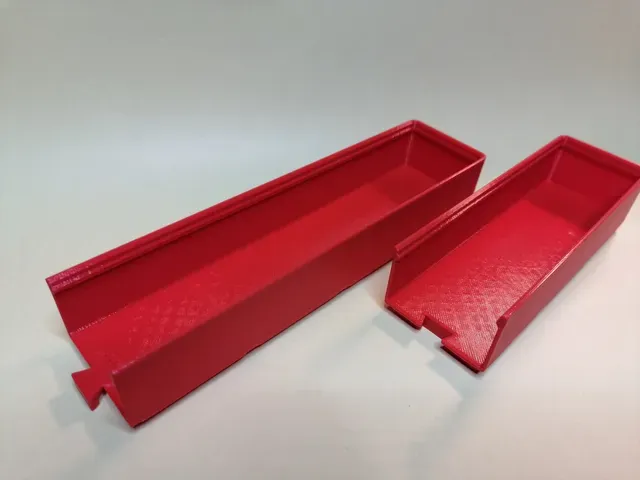

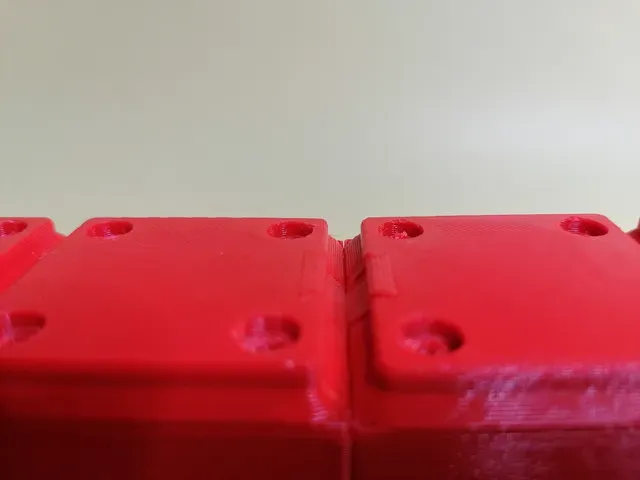

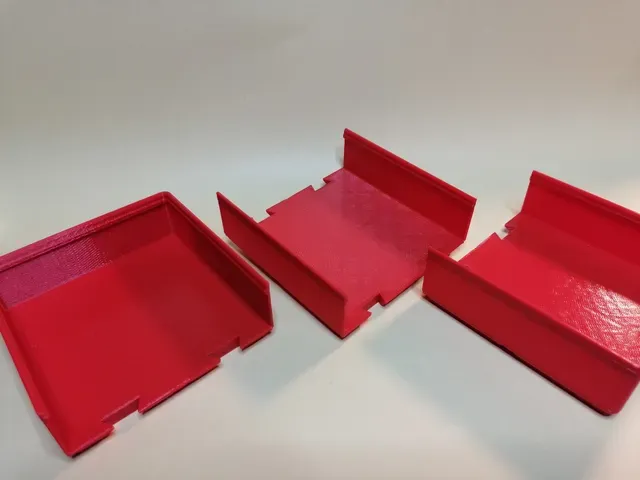

There are End- and Mid-Sections that will connected via dovetail connectors. With different end and mid sections you can print allmost any size.

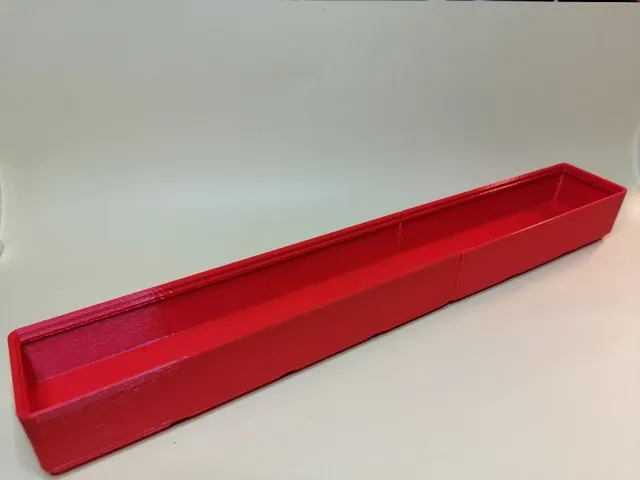

For length up to the gridfinity factor of 8 you only need to print End-Sections. So in order to get a 3x7x6 bin you have to print one bin-end-3x3x6 and one bin-end-3x4x6

Every length over 8 will be realized with additional Md-Sections, so theoretically there is no limit.

The modell with the max size of 4x4 will fit even onto the Prusa Mini.

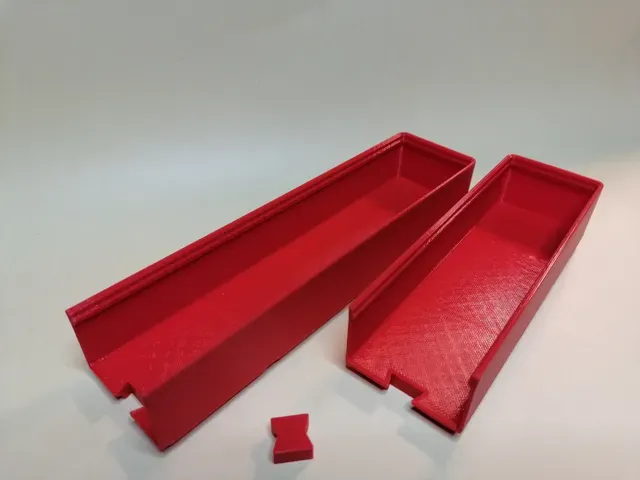

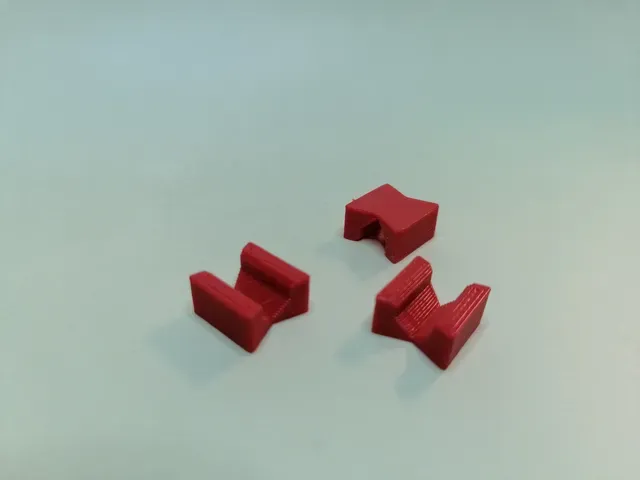

The dovetail connector is a separate print. There are modells with different tolerances for the right fit. For my MK3S+ with 0,3 layer height and 04 nozzle the ”standard-005” tolerance fits best.

pass (0.00mm) standard (0.05mm) loose (0.10mm) evenlooser (0.15mm) extremloose (0.20mm)

Update 07.04.2023:

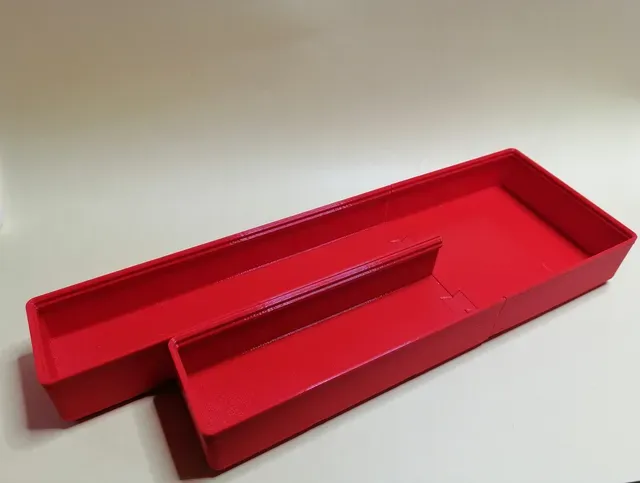

added a dovetail to each section, so a bin with a width of 3 has now 3 dovetail connectors. This allows you to arrange bins of different widths and lengths into irregular shapes.

see my other Gridfinitys

storage boxes (1x1 to 3x3) https://www.printables.com/de/model/175692-gridfinity-storage-boxes

storage bigger boxes (4x1 to 5x5) https://www.printables.com/de/model/176917-gridfinity-storage-big-boxes

storage boxes expandable, lenght to infinity… https://www.printables.com/de/model/437449-gridfinity-expandable-strorage-boxes

collet holder for CNC https://www.printables.com/de/model/175705-gridfinity-collet-holder-cnc

holder for superglue bottles https://www.printables.com/de/model/177516-gridfinity-box-for-superglue-bottles

holder for torque wrench handle https://www.printables.com/de/model/425640-gridfinity-bin-for-torque-wrench-handle

Credit goes to Zack Freedman for his inovative Gridfinity concept
