Voron StealthBurner Mount with BLTouch for Mega Zero V1 and Ender 3

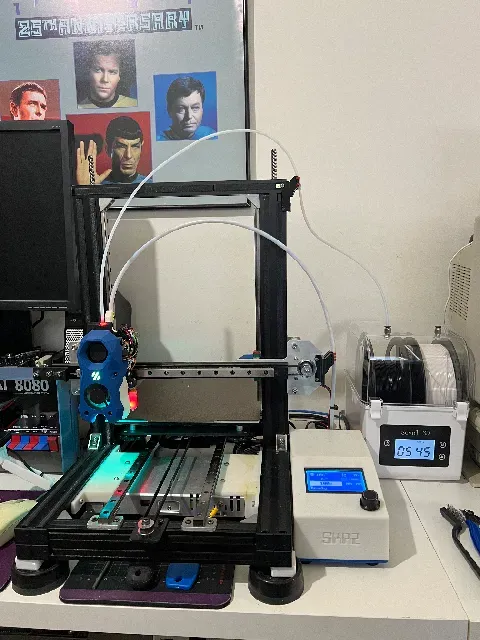

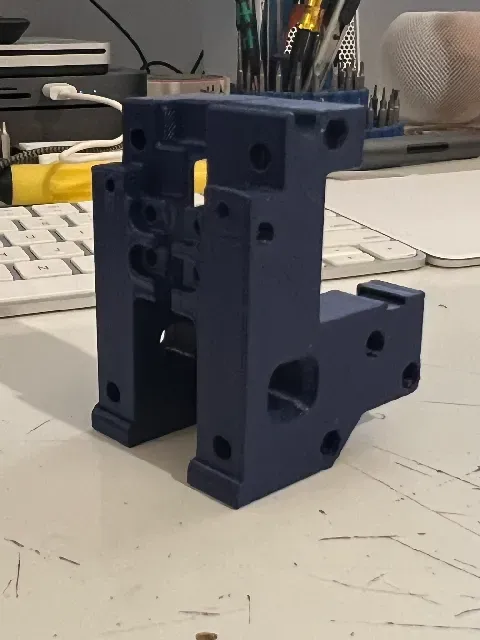

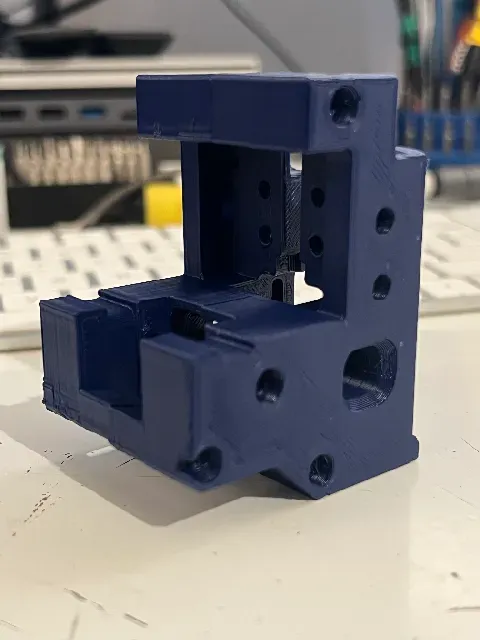

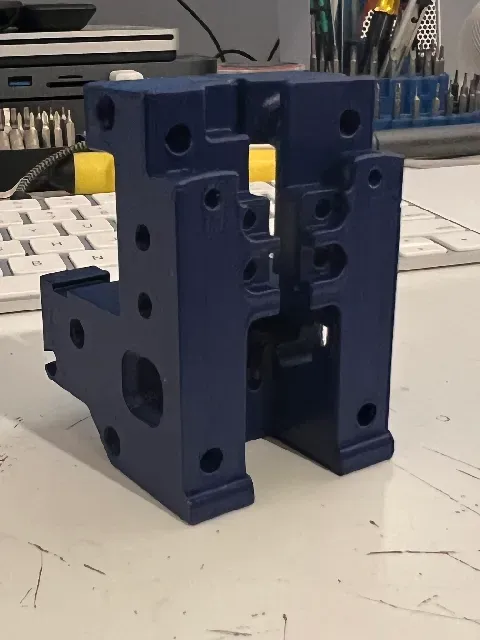

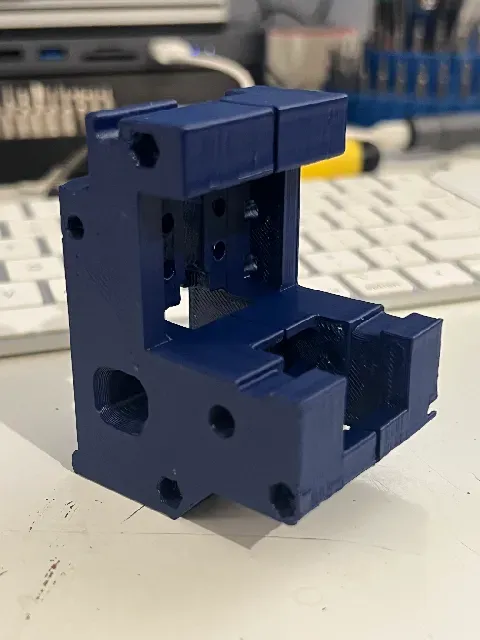

This mod comprises 3 main parts, the SB Linear Rail Mount, X-axis end-stop mount and a BLTouch mount. Ender 3’s don’t require the end-stop mount.

UPDATE : I've now created an optional internal Mount for the Biqu / BTT MicroProbe

This is designed for use with an MGN12H Linear Rail on the X-axis.

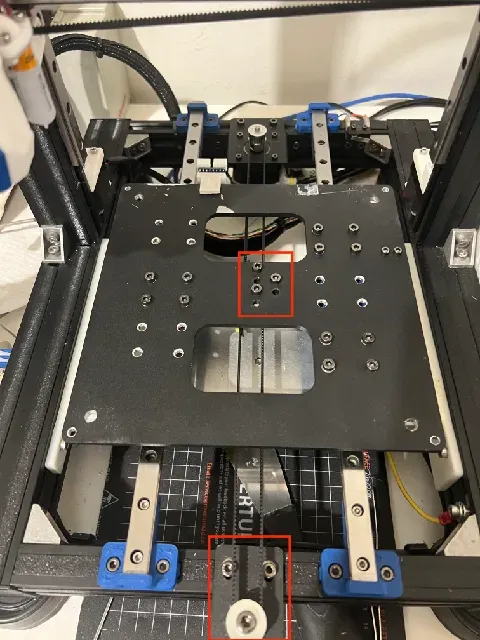

Mega Zero owners will need to replace their Y axis Belt with a longer one and move the front Y-axis Idler to the front of the printer (see Pics - ignore the moved Center mount). This will recover lost Y-axis range.

This mount is designed to use M3 Heat-Insert nuts, just like the rest of the StealthBurner design (except where noted in the Voron instructions).

This mod is compatible with all other standard Voron StealthBurner parts.

CAD file has been included.

Main Voron StealthBurner Files

BLTouch Offsets: x_offset: 29.00 y_offset: 22.0

Optional Components:

Orbiter v2.0 Mounting System

EBB36 Mount with Cable Strain Relief for the Orbiter v2.0
