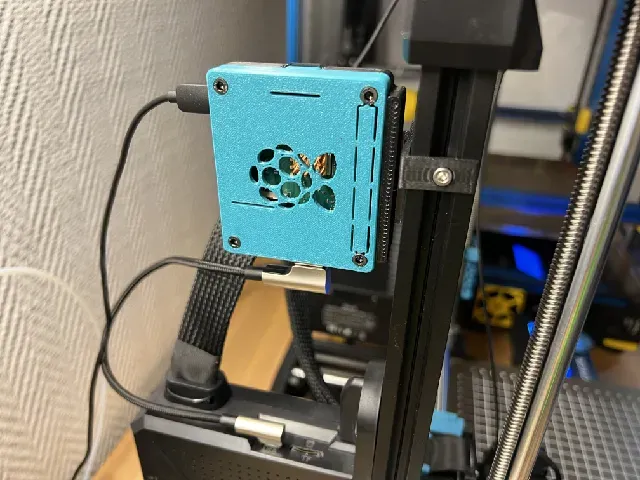

Raspberry Pi 3 A+ case for 4020 extrusion (e.g. Sovol SV06)

Since the Raspberry Pi 3 A+ is powerful enough to run Klipper I use one for my SV06.

This is a remix of the Raspberry Pi 3 A+ Case for Prusa Mini adding a bracket to mount that case to a 4020 aluminium extrusion. There is also a remix of the case adding a fan if you like. In my experience you don't need that though, for me the Raspi temperature never exceeds 50°C/122°F while printing using passive cooling only.

I printed my case/bracket in PETG.

You'll also need:

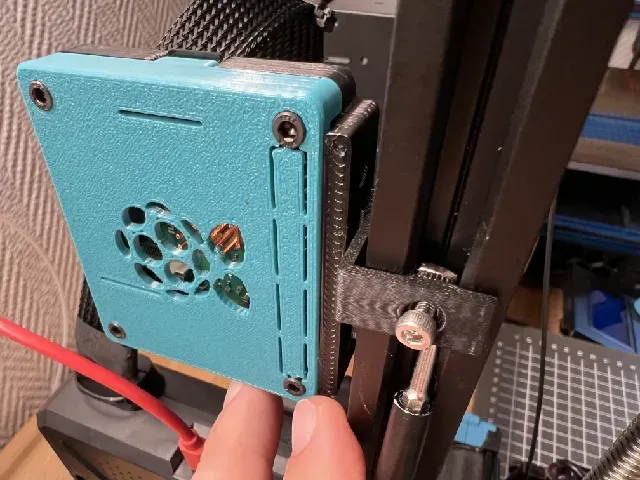

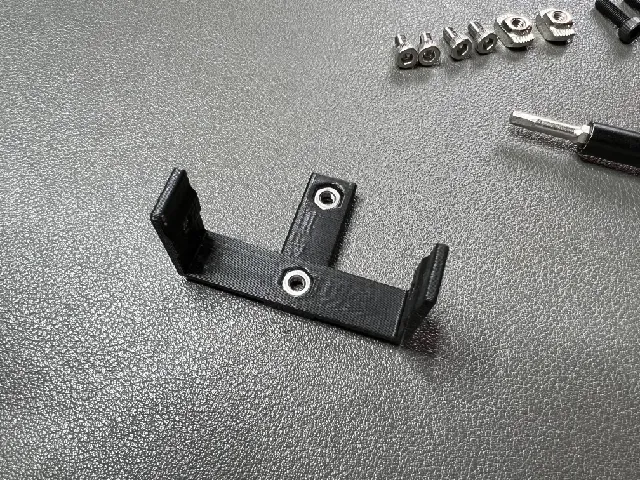

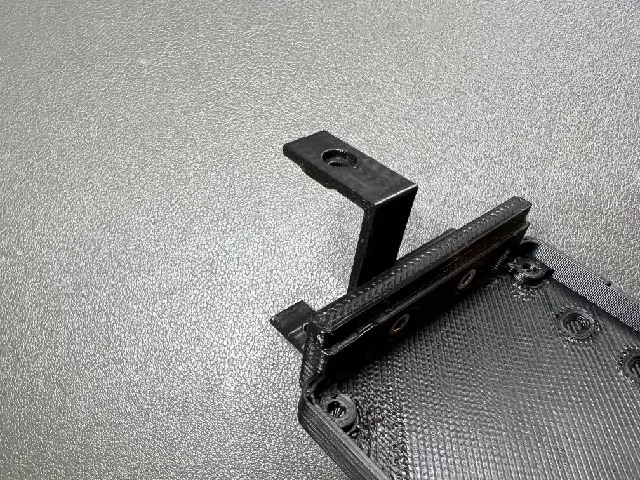

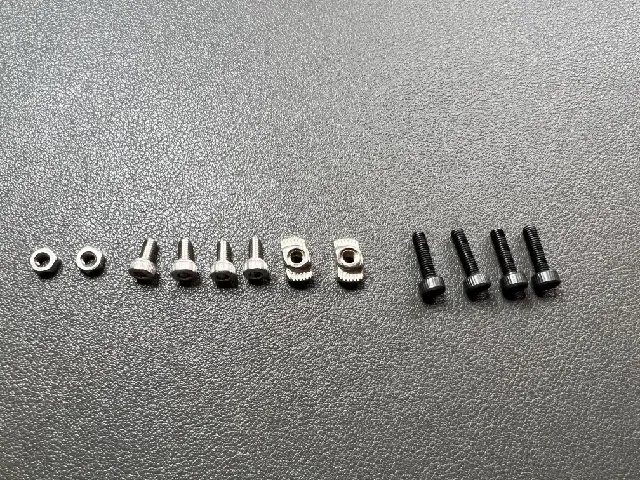

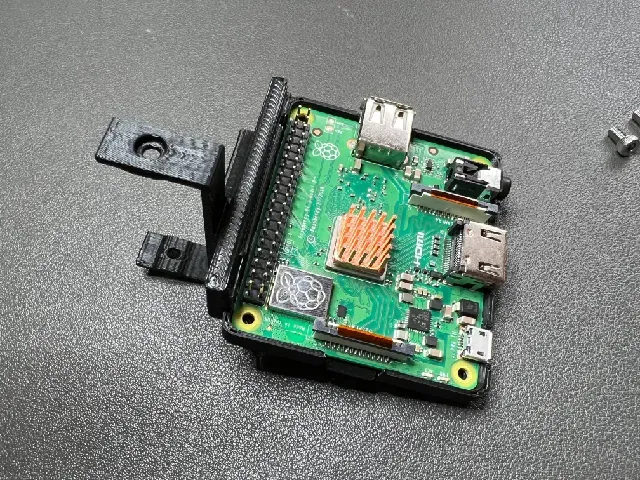

- 4pcs M3x6 SHCS - 4pcs M3x12 SHCS - 2pcs M3 hex nuts - 2pcs M3 2020 T-nuts - 1pc USB-A to micro-USB cable (Raspi to printer control board connection) - 1pc micro-USB cable + USB power supply (for the Raspi) First add the two hex nuts to the bracket, then mount it to the bottom half of the case using two M3x6 screws. Insert the Pi and put on the top half of the case. Screw in the four M3x12 screws. Clip the bracket onto the 4020 extrusion. Put a M3x6 screw through one of the mounting holes of the bracket while pushing in a T-nut from below into the grove of the extrusion. Fasten that screw into the T-nut. Repeat for the other side. Connect the Raspi to the control board of your printer with the USB cable. Connect the USB power cable to the Raspi.
