Bosch GSR FlexiClick toolhead wall holder with MultiClip and protection cap

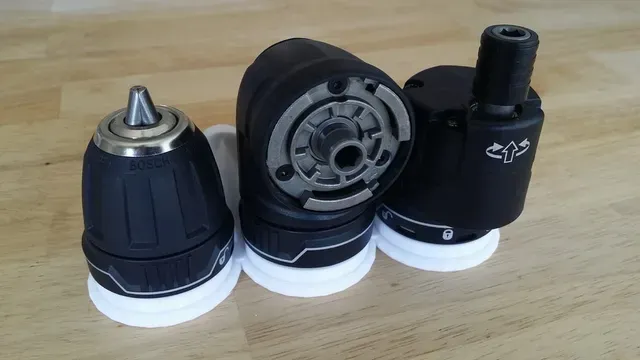

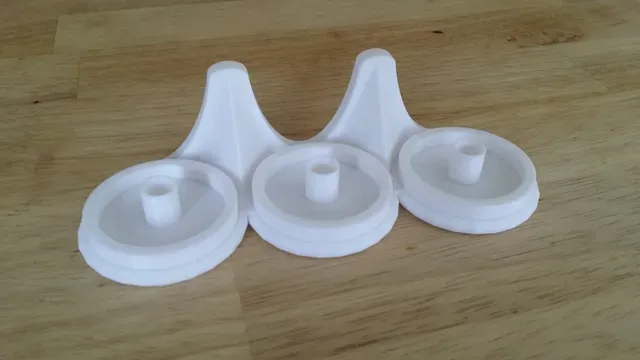

Bosch has recently released a few new GSR models with exchangeable toolheads. These models are identifiable by their "FlexiClick" name extension. You can buy them together with a box to store them in, but often I want them to be just a grab away. So I designed this wall holder which not only holds the FlexiClick toolheads but also protects their mechanism from dust. There is a version for 3 and one for 4 Toolheads.

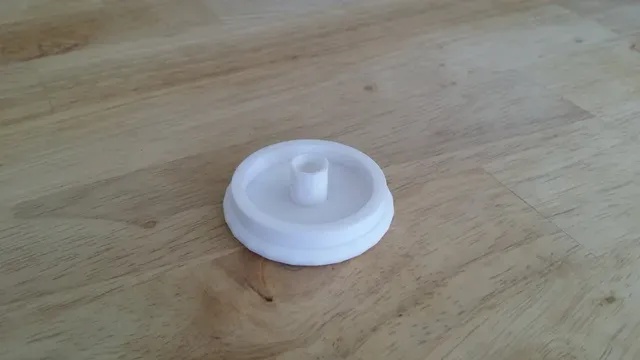

As an added bonus, I also added a protection cap that you can put on FlexiClick toolheads while you carry them around in a pocket or pouch. So your tool pouch wont get oily and your precious toolheads will not collect dust and fluff.

To mount this item to a wall, box or whatever, you will need two or three MultiClips of your choice. At the link you will also find alignment and wall marking tools that help you to mount the clips (and the bracket) easily right where you want it to be.

If you like the GSR wall mount in the last picture, too, you can find it here .

If you like the MultiClip idea you might want to have a look at even more MultiClip-enabled designs . You are also very welcome to use the MultiClip Templates in your own objects.

Print instructions

Printer: Anycubic i3 Mega (UB) Supports: No Resolution: 0.15 Infill: 20%

Notes:

I recommend at least 3 top, bottom and border layers to give the tool holder some stiffness.
