customizable beer crate with individual text and logo

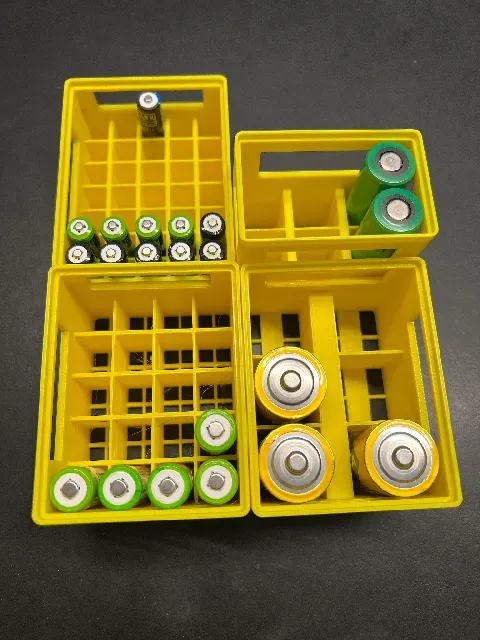

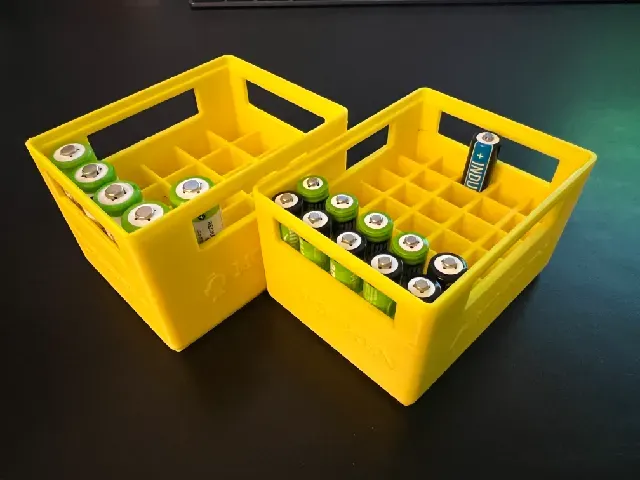

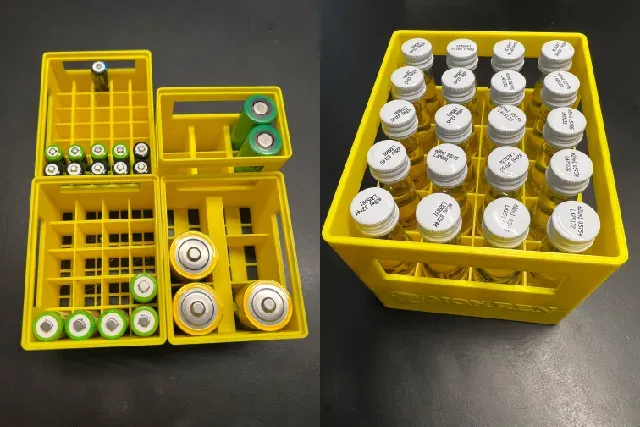

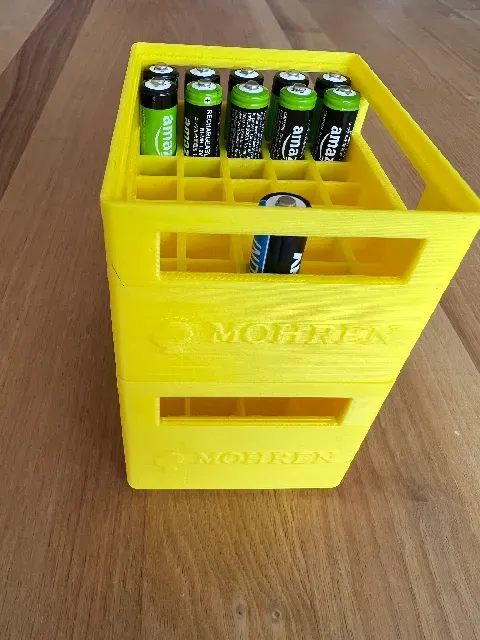

To be honest, I was a bit annoyed that there are so many beer crates for batteries but none of them is customizable the way I'd like it to be. So I created my own, that I'd like to share herewith…

beer crate customizable in

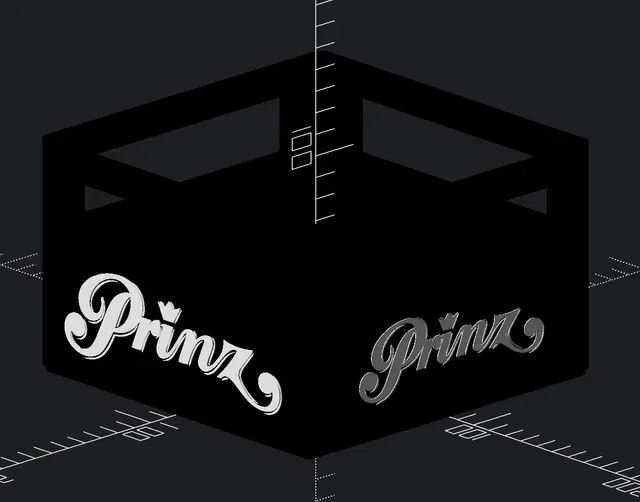

- crate - color - number of rows (x) - number of columns (y) - wall thickness - with or without stackability on top - with or without stackability on bottom - stackability tolerance - outer corner radius (z) - lateral recess - height above recess (z-position) - height - size in % (x and y) - corner radius - floor - height - with or without grid (holes) - grid with rectangles or triangles - triangle wall thickness - bottle / battery / whatever - diameter - height - grid - height - wall thickness in x-direction - wall thickness in y-direction - conical or not - top diameter of glas (bottom of crate) - logos from svg - with or without logo in x-direction - with or without logo in x-direction - color - filepath x-direction - filepath y-direction - logo positive or negative from wall - height (positive or negative) - z-angle in x-direction - z-angle in y-direction - size in x-direction - size in y-direction - text - with or without text in x-direction - with or without text in x-direction - color - text x-direction - text y-direction - text positive or negative from wall - height (positive or negative) - z-angle in x-direction - z-angle in y-direction - size in x-direction - size in y-direction - aso. All comments currently in German. Please message me if you cannot find translation.

Updates

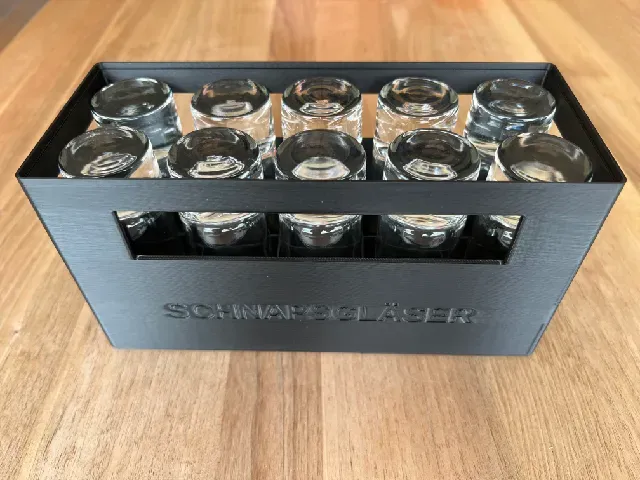

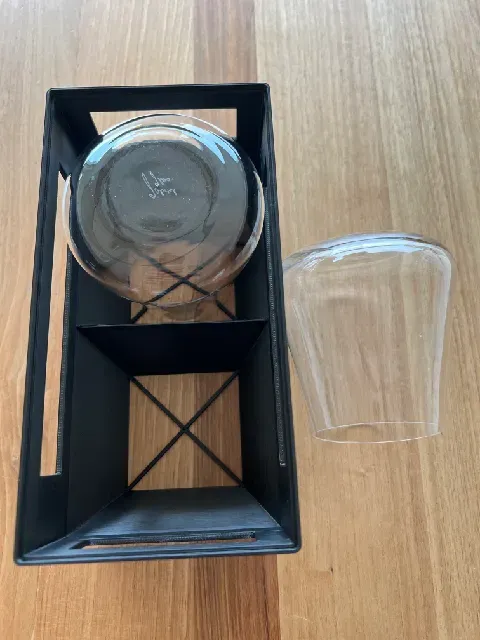

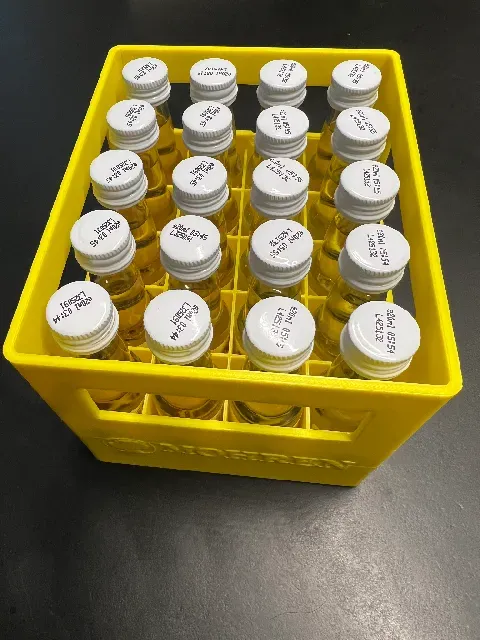

- 03.04.2023: corrected minor mistakes in scad-file - 03.04.2023: added possibility to adjust z-angle for higher texts and logos - 14.05.2023: possibility to make conical fitting (especially for glasses) at bottom part of crate (see Gabriel glas stl-file)
