Nozzle Storage - Multiple layers - V6

Here is the Ultimate nozzle storage unit!

This design was updated 04-02-2021 to include more model to choose between and the text has been made internal instead of external for nozzle size.

This system covers 0.25, 0.4, 0.6 and 0.8mm Nozzles, and you can decide yourself which sizes you want and how many.

Further more this model is compatible with my "SD Storage - Multiple Layer - SD, Mini & Micro" design, so you can keep both your SD cards and your nozzle in order, and even in the same storage unit.

The Premade G-Code is a complete set with all nozzles sizes and the figure top.

Print instructions

Models

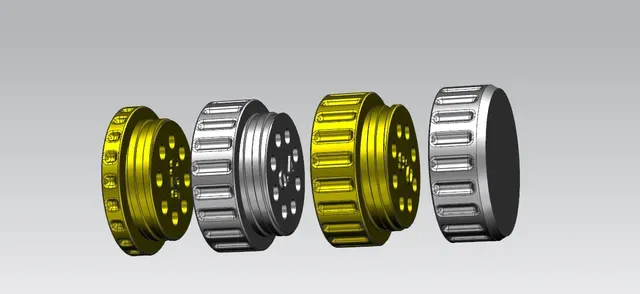

There are 3 model types, Bottom , Layer and Top .

The Bottom and Layer models come in 4 different types each fitting a specific nozzle size. To make a Nozzle Storage unit you only need 1 Bottom and you can make for any nozzle size you wish. The Layer models you can print as many as you want depending on how many nozzle you need to store, and you can always add a new layer to your unit.

The Top you also only need 1 of, and there are 3 to choose between, Smooth , Text and Figure depending on how you would like the unit to look.

Printing

If you use the standard setting for PLA on a PRUSA printer, all the models can be printed without support, however you might want to use support if you print in PETG .

I recommend layer height at 0.20 or smaller as this will make the thread nice and smooth.

That is all you need to know, good luck.

Happy Printing! and don't forget to upload a picture of your result!
