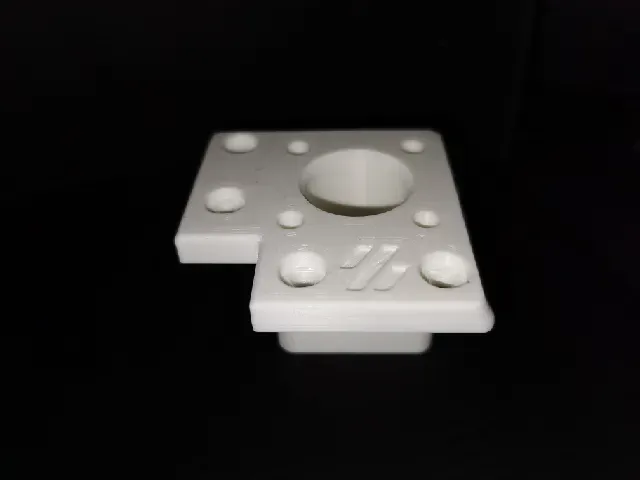

Voron Trident extended Z motor mounts

Purpose:

This mod allows you to use Spider / Jaw or any other type of coupling on the Z axis of a Voron Trident.

It extends the mount by 30 millimeters and uses Socket head cap screw (SHCS) M3X40

The couplings will sit below the surface of the part and won't interfere with the nuts.

You can now use T8 Tr8x2 Lead Screws or build a custom Z height Trident (Mine is 350).

I'm using Nema 17HS19-2004S2 Steppers.

This is a remake of the original parts.

Print Settings:

These are the recommended settings.

- Layer height: 0.2mm - Extrusion width: 0.4mm, forced - Infill pecentage: 40% - Infill type: grid, gyroid, honeycomb, triangle, or cubic - Wall count: 6 - Solid top/bottom layers: 5 - Supports: NONE Enjoy ;)
