Babboe Bakfiets Cargo Bike Lights e-curve

Supersceded

I have redesigned this because it was a nightmare to print and it did not join together nicely.

Please look at this instead as it prints much much better and you will be happier with the results:

https://www.thingiverse.com/thing:4924491

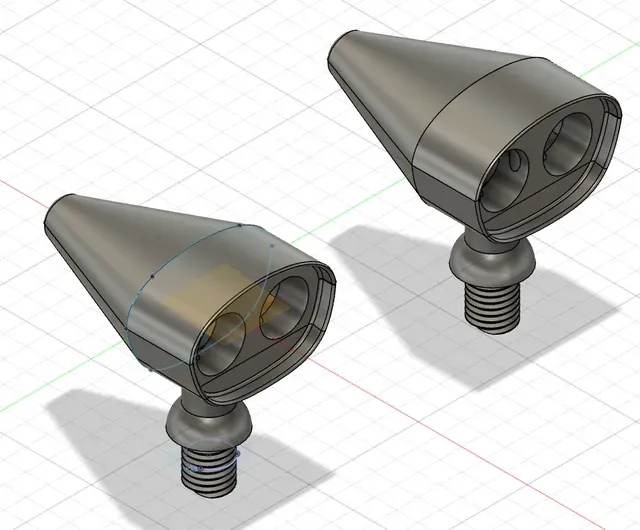

Lights for Babboe Bakfiets cargo bike.

These were made specifically for the e-curve which has a 20 mm mount on the front of the bike where the factory provided lights go.

The mounting bolt is hollow to allow cables to be run internally into the units

I used waterproof 5V LED lamps purchases on Ali, so they can be powered with a USB battery pack.

10mm https://www.aliexpress.com/item/32846365784.html?spm=a2g0s.9042311.0.0.27424c4dY7RH8K

22mm https://www.aliexpress.com/item/32848939798.html?spm=a2g0s.9042311.0.0.27424c4dY7RH8K

Printing

Parts print without support, however the bridging is quite extreme and the print can be a little messy (see pictures). Print all pieces flat on the build plate as per my picture from cura.

Print time is approx 8 hours @70mms for each side.

List of required parts.

2 x 10mm red lights

4 x 22mm white lights

4 x m2*10 bolts

Future Plans

I plan on making a rear light with a gps tracker built into in the future for my bakfiets so follow me if this interests you.

Feedback and Makes

I really like getting feedback and despite having thousands of downloads I have only 1 comment and 0 makes!

It really makes a difference and feels great when you leave a comment, like, or collect things to the people who post them, so Please do that for all people as it builds community. Super important in these Covid Times. Even if you do not post things you are still part of the community (in fact you are the majority of the community), so please like, collect and comment!

Please do this for all stuff you download from everybody!

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

200

Infill: 20

Filament: PolyMaker PLA
