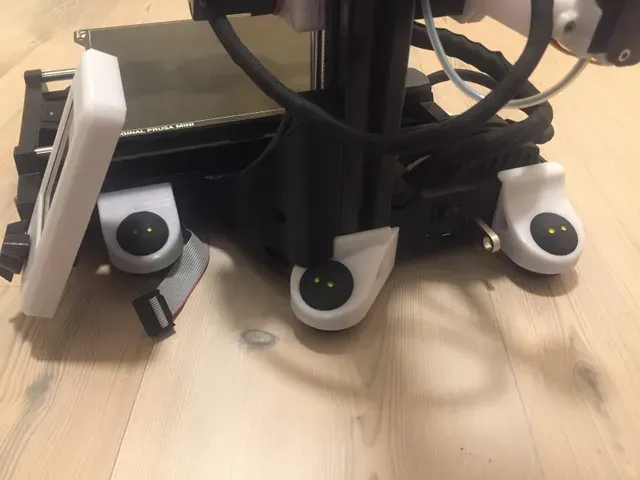

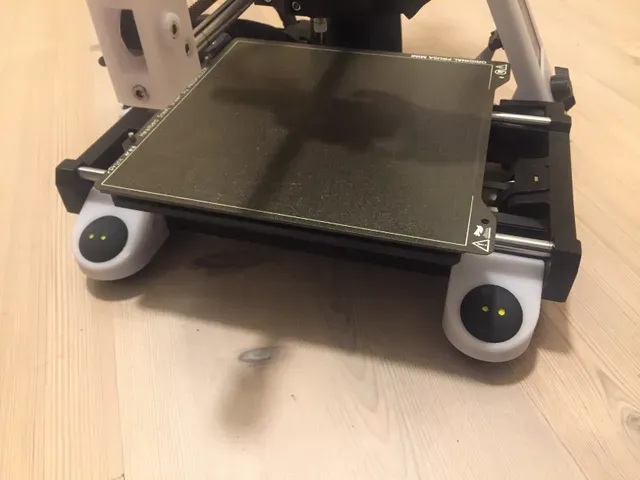

Squash ball feet for Prusa MINI Original and Clone

Inspired by dermatin for its low profile V-slot squash ball feet as well as by Vektor for Prusa MINI, I made my own squash ball feet for Prusa MINI, which also fit nicely and are screwed to the frame.

The downside of Vektor for its feet is that the squash ball is not deep enough in it, exactly 20mm, and therefore does not have enough grip in the foot. So I redesigned and added a back foot.

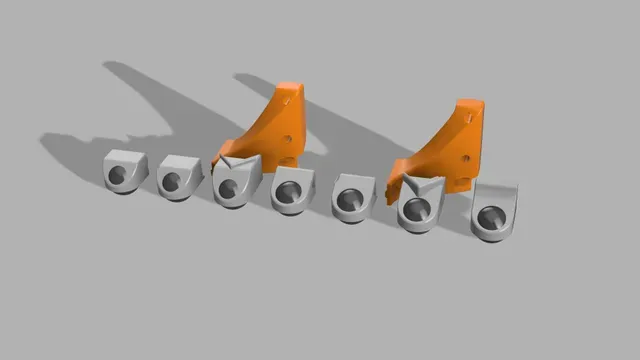

I have created 2 variants that only differ optically, but have the same height of the feet, only variant 2 can be printed without support in contrast to variant 1.

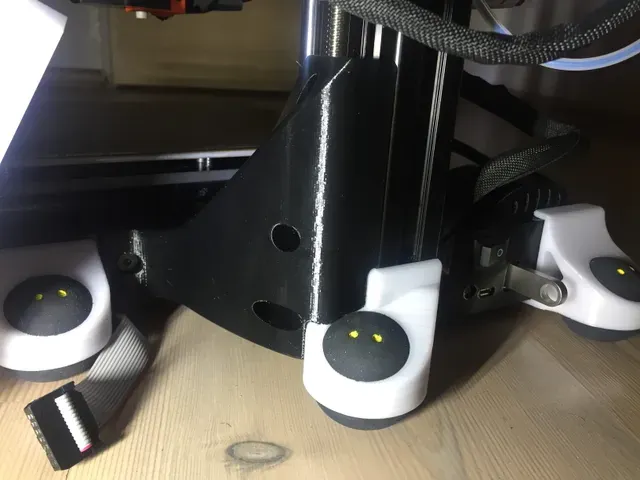

I adapted the Prusa MINI Z-axis support strut from Victor to the forefoot Z-axis. Of course, the correct variant must be selected here, both variants must be printed with support.

Print the rear foot Z axis with support everywhere, 3mf file with setting is included but I did it with MK3S so please pay attention to your printer profile.

Version 2 to screw on: https://www.prusaprinters.org/prints/48656

So I hope you enjoy it.

Update 12/27/2020 The files for Prusa MINI Original and Clone are now available because the Prusa MINI Clone has a different profile 3030 than the original.

required parts: 7x M5 T-nuts for 3030 series 4x M5x10mm low profile screws 3x M5x12mm low profile screws

Link to the original source: Prusa MINI Z-axis support strut https://www.prusaprinters.org/prints/32054-prusa-mini-z-axis-support-brace

Prusa Mini Squash Ball Feet Low Profile https://www.prusaprinters.org/prints/34936-prusa-mini-squashball-feet-low-profile-noise-reduc

Low Profile V-Slot Squash Ball Feet https://www.thingiverse.com/thing:3385254
