Longer LK4 Pro Cable Chain PART B

This is a remix of this model

What I modified:

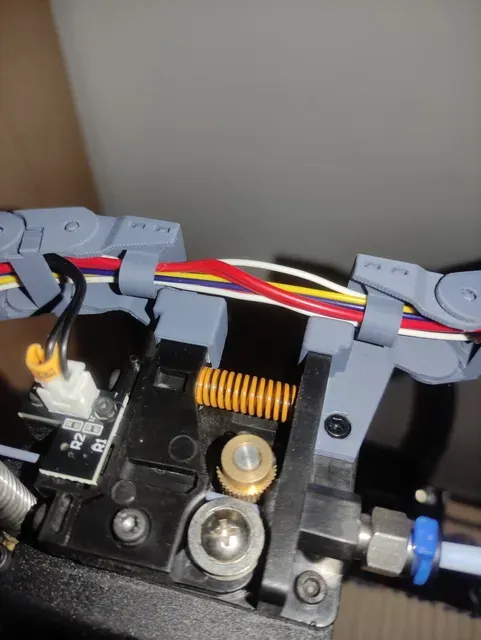

- cableChainLongerAdapt_ExtruderSide Mod Left : - From cableChainLongerAdapt_ExtruderSide Mod Right.stl - Mirrored and adapted to the left side of the extruder

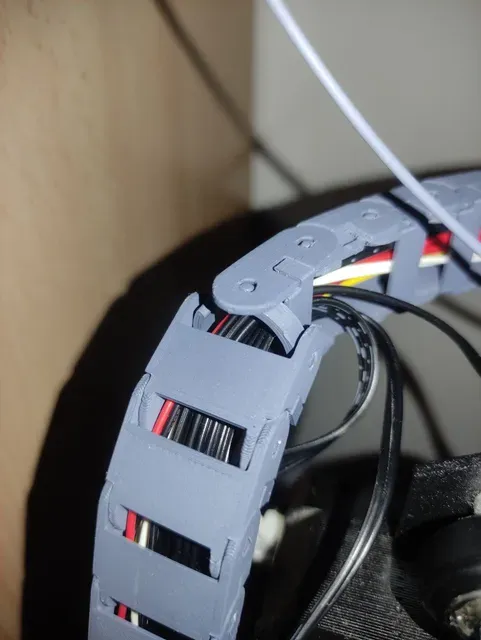

- cableChain_link_v3 Mod Female : - From cableChain_link_v3 Mod.stl - Turned the chain into “female” in order to rotate the chain 90°

- Junction : - Used to link “ cableChain_link_v3 Mod Female” and “ cableChain_link_v3 Mod”

- cableChain_link_v3 Mod Stepper Motor A and B : - From cableChain_link_v3 Mod.stl - Added a plate in order to screw the chain beside the X-axis stepper motor (see image) - Part A and B are simply mirrored (if you want to show the front or the back)

Printed parts:

For my Longer LK4 Pro I printed and used (see image):

cableChainLongerAdapt_ExtruderSide Mod Left x1

cableChain_XendCover Mod.stl (from here ) x1

cableChain_link_v3 Mod Female x1

Junction x1

cableChain_link_v3 Mod Stepper Motor A x1

cableChain_link_v3 Mod (from here ) x23

cableChain_linkCover_v2 (from here ) x25

How to print:

I printed as they are oriented in the files, everything without supports except for cableChainLongerAdapt_ExtruderSide_Mod Left

Print Settings

- Printer: Longer LK4 Pro - Supports: No - Infill: 20% - Filament: eSun PLA Matte grey

How I Designed This

I used Blender
