Mini Pan-Tilt ESP32-CAM

Note: the front piece should have air holes to aid in cooling, but I have not yet had a chance to remix and test.

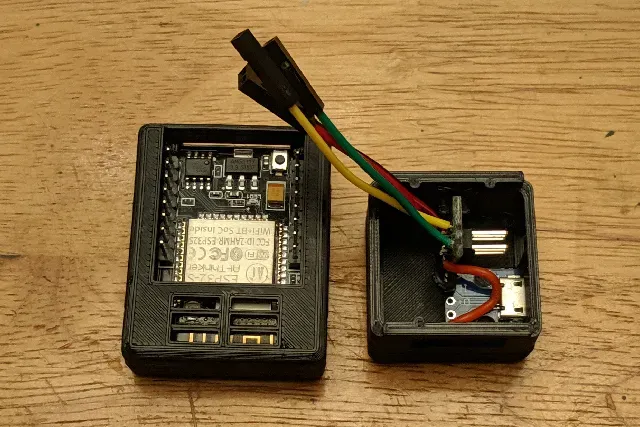

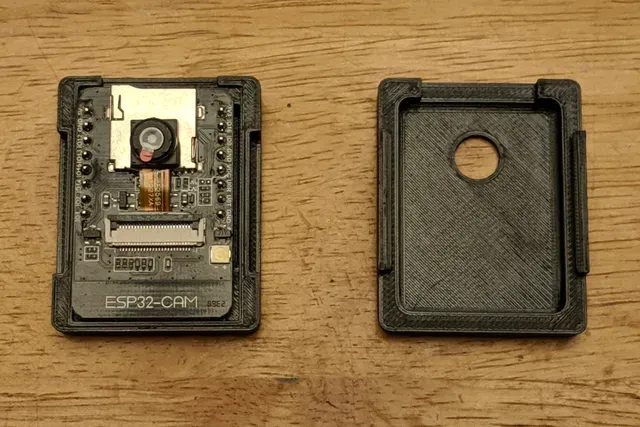

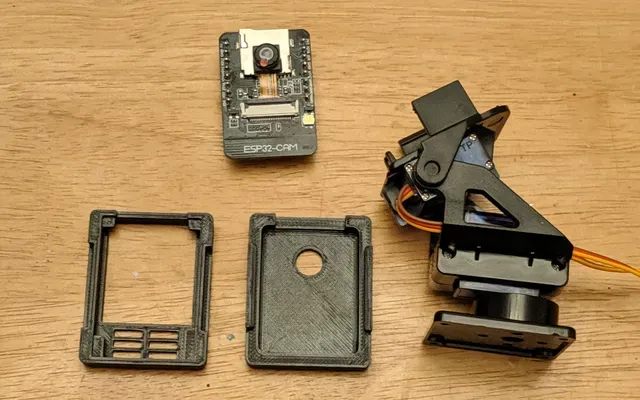

A simple case for the ESP32-CAM that clips to the Adafruit Mini Pan-Tilt Kit ( assembled with servos ). All pieces snap together without fasteners.

I'm a newbie with OpenSCAD, but the sources are available in case they can be helpful.

Tutorial for ESP32 camera web server: https://randomnerdtutorials.com/esp32-cam-video-streaming-face-recognition-arduino-ide/

Tutorial for ESP32 servo control: https://randomnerdtutorials.com/esp32-servo-motor-web-server-arduino-ide/

GPIO 2,4,12,13,14,15 (all left side GPIO pins) are connected to the SD card and shouldn't be used for controlling the servos if you plan to use the SD card functionality. GPIO 0 & 16 should be OK.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.15

Infill:

15%

Filament: eSUN 3D PETG
