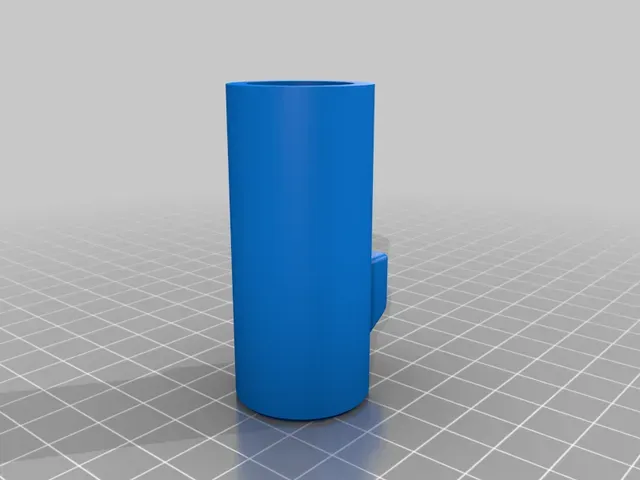

Ultra Receiver for Foam Knights XC

Ultra Receiver for Foam Knights XC

Print Receiver with support from build plate only, All other parts no support needed.

Print with 3 walls and 35%infill

Hardware required

2x Spring https://www.mcmaster.com/9657K671/

2x 6-32 screw https://www.mcmaster.com/91251a148

1x Square Nut https://www.mcmaster.com/94855A115/

1x 8-32 screw https://www.mcmaster.com/91251A194/

1x O-ring https://www.mcmaster.com/9452K58/

12" Copper Tubing https://www.mcmaster.com/50475K88/

Also one "black_magwell_release" from original Foam Knight XC files

Magwell Release installs as with all other Magwells for XC Blaster.

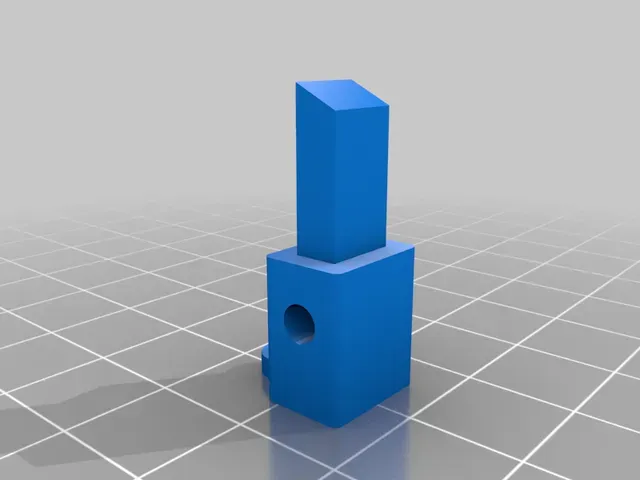

Mag Catch Installs with spring into upper half round section, Make sure its fully seated to bottom of hole with Allen Wrench. Mag Catch should have the 45 slope smoothed of all layer lines with sand paper. Mag catch is then installed and held in place with 6-32 screw.

Barrel is to be installed so its flush inside mag well and spacer should be super glued on about 2" forward of the receiver end of barrel. Cut Copper tube flush to end of muzzle.

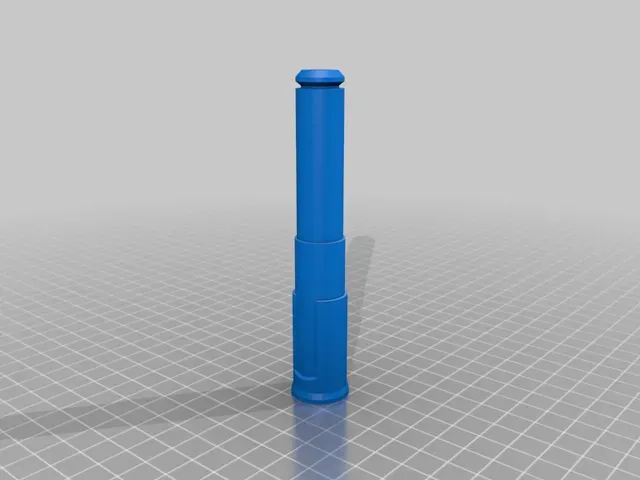

O-Ring should be lubed and installed on groove of pusher.

Use with Magazine https://www.thingiverse.com/thing:4788097

Print Settings

Rafts:

No

Supports: No

Resolution:

200

Infill: 20

Filament: PolyMaker PLA

Category: Hobby
